| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | DMF-Y-102S |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Type: | Full Immersion Diaphragm Valve | Power: | Solenoid |
|---|---|---|---|
| Media: | Air | Port Size: | 4''Inch |
| Structure: | Diaphragm | Body Material: | Aluminum Alloy |
| Diaphragm Material: | NBR(Common), FKM(Available) | Number Of Diaphragm: | 2 |
| Pressure: | 0.1 To 0.8MPa | Temperature: | -25 To +80℃ |
| High Light: | Pulse Jet Valve For Bag Filter,DMF-Y-102S Pulse Jet Valve,BFEC Embedded Dust Collector Valve |
||

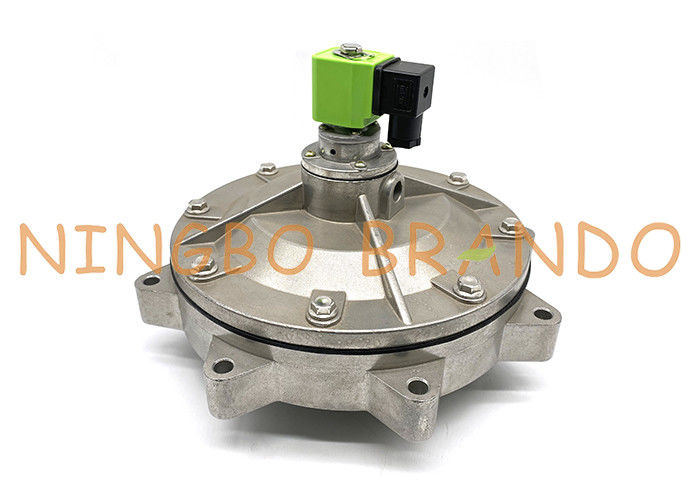

DMF-Y-102S Full Immersion 4'' Inch Diaphragm Pulse Valve For Bag Filter
How to use pulse jet valve?
1.After the installation of submerging dust removal pulse valve, it is not allowed to weld the air bag and related flanges, connect the spray pipe, prevent welding slag or instant high temperature scald the diaphragm, affecting the service life of the diaphragm.
2.In order to protect the submerged dust removal pulse valve, filter and pressure regulating valve should be installed on the compressed air or the inert gas entering the air envelop road, and the blowdown valve should be installed on the bottom of the air bag. Ensure the compressed air supply is clean and dry. According to the operating conditions of regular cleaning.
3.The inlet pipe diameter of the air bag cannot be selected too small, so that the air pressure cannot be supplied in time, and the submerged dust removal pulse valve cannot be blown normally.
Technical Data of SBFEC Type DMF Series Submerged Pulse Jet Valve:
|
Model number
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
|
Port sizes
|
G1''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
G4''
|
|
Membrane sizes
(φ66 smaller)
|
φ96
|
φ112
|
φ160
|
φ188
|
φ202
|
φ255
|
|
CV values
|
30.53
|
53.47
|
71.47
|
150.85
|
186.66
|
313.09
|
|
Blowing area
(m2)
|
8-10
|
12-16
|
18-28
|
27-38
|
37-65
|
70-90
|
|
Weight
(kg)
|
0.75
|
1.2
|
2.35
|
3.2
|
4.05
|
5.65
|
|
Environment Temperature
|
-25℃ to +80℃
|
|||||
|
Relative Humidity
|
≤85%
|
|||||
|
Working Medium
|
Clean Air
|
|||||
|
Protection Class
|
IP65
|
|||||
|
Service Life
|
Over one million times
|
|||||
|
Voltage
|
DC24V, AC24V, AC110V, AC220V
|
|||||
Main Dimension:
BFEC DMF Series Pulse Jet Valve For Dust Collector System:
|
Thread Valve
|
3/4''
|
1''
|
1.5''
|
2''
|
2.5''
|
3''
|
4''
|
|
DMF-Z-20
|
DMF-Z-25
|
DMF-Z-40S
|
DMF-Z-50S
|
DMF-Z-62S
|
DMF-Z-76S
|
DMF-Z-102S
|
|
|
Quick Mount Valve
|
3/4''
|
Inlet φ27
|
1''
|
1.5''
|
|||
|
DMF-ZM-20
|
DMF-ZL-B
|
DMF-ZM-25
|
DMF-ZM-40S
|
||||
|
Flange Valve
|
1''
|
1.5''
|
|||||
|
DMF-ZF-25
|
DMF-ZF-40S
|
||||||
|
Embedded Valve
|
1''
|
1.5''
|
Outlet φ62mm
|
Outlet φ75
|
Outlet φ89
|
Outlet φ114
|
Outlet φ102
|
|
DMF-Y-25
|
DMF-Y-40S
|
DMF-Y-50S
|
DMF-Y-62S
|
DMF-Y-76S
|
DMF-Y-102S
|
DMF-Y-102SA
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
