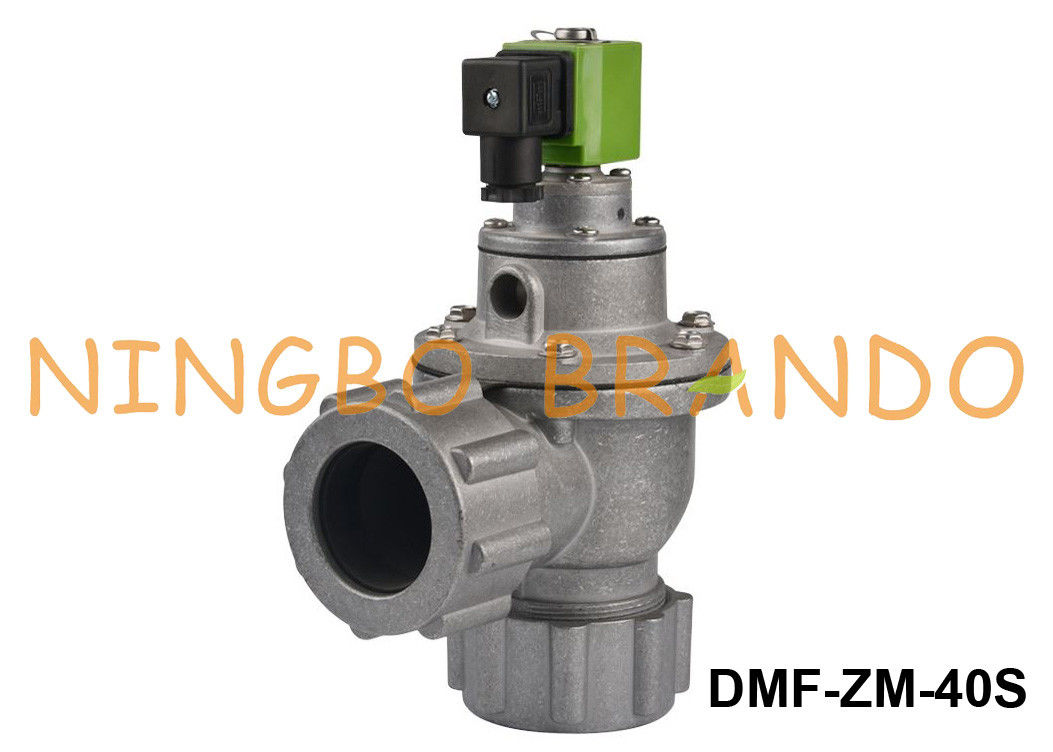

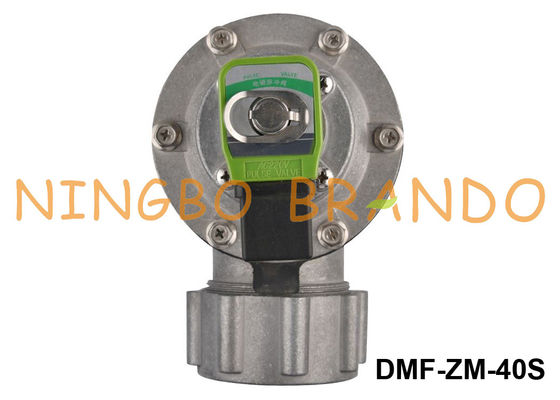

1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector

1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector

    • 1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector
    • 1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector
    • 1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector
  • 1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector

    Product Details:

    Place of Origin: CHINA
    Brand Name: BRANDO
    Certification: CE
    Model Number: DMF-ZM-40S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: negotiation
    Packaging Details: Inner Box,Carton,Pallet
    Delivery Time: 4-7 days
    Payment Terms: T/T, Western Union, L/C, MoneyGram
    Supply Ability: 100000 pcs per month
    Contact Now
    Detailed Product Description
    Product Name: BFEC Pulse Jet Valve Valve Type: Quick Mount
    Port Size: 1.5'' Coil Voltage: 24VDC, 220VAC
    Diaphragm Material: NBR No Of Diaphragm: 2
    High Light:

    BFEC Pulse Jet Valve

    ,

    Dust Collector Pulse Jet Valve

    ,

    BFEC DMF-ZM-40S

    1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector



    ZM Series Quick Mount Pulse Jet Valves:
    * 3/4", 1", 1.5" port sizes
    * High performance diaphragm valve with dresser nut ports.
    * Available with integral pilot or as remotely piloted valve.
    * Outlet at 90 degrees to inlet.



    Suitable for:
    Dust collector applications,in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters,and sintered metal fibre filters.



    Construction:
    Body and Dresser Nuts: Aluminium (diecast)
    Ferrule: 304 Ss
    Armature: 430FR Ss
    Seals:Nitrile or Viton (optional)
    Dresser Nut Seals: Nitrile or Viton
    Daphragm Seat: Buna, Nylon



    Technical Data of Quick Mount Pulse Jet Valves:

    Model
    DMF-ZM-20
    DMF-ZM-25
    DMF-ZM-40S
    Nominal Size
    20
    25
    40
    Port size
    mm
    20
    25
    40
    in
    3/4
    1
    1 1/2
    Blowing Area (m2)
    3.5~6
    8~10
    12~16
    Number of Diaphragms
    1
    1
    2
    Flow
    Kv
    17.55
    26.16
    45.82
    Cv
    20.48
    50.53
    53.47
    Pressure (Psi)
    0.1Mpa to 0.8Mpa
    Temperature (℃)
    -25℃ to +80℃
    Voltage
    220VAC, 24VDC


    Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.



    Dimension of DMF-ZM-40S BFEC Pulse Jet Valve:

    1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector 0



    Video of BFEC DMF-ZM-40S Pulse Jet Valve:


    More BFEC Pulse Valve For You to Choose:

    1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector 11.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector 21.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector 3

               Right Angle Type                         Quick Mount Type                         Submerged Type

    1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector 41.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector 5 1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector 6 1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector 7

                Diaphragm                     Solenoid Coil                  Armature Assembly            Pulse Controller
