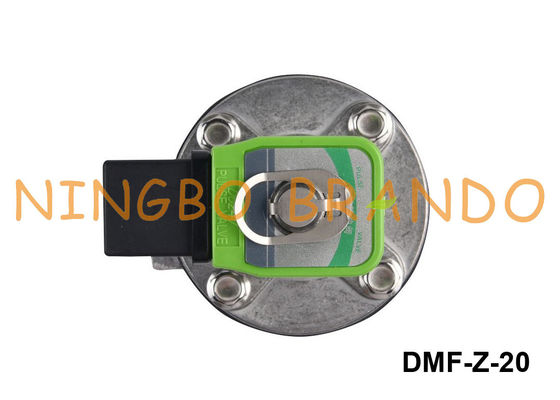

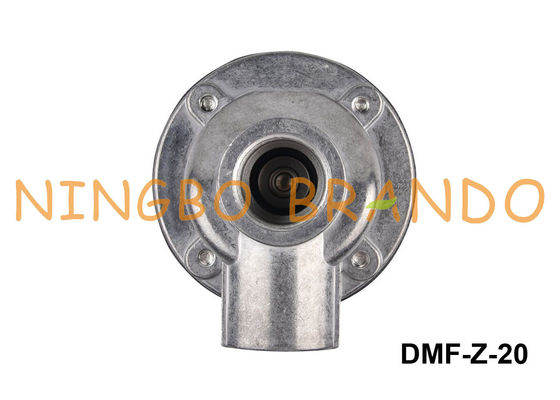

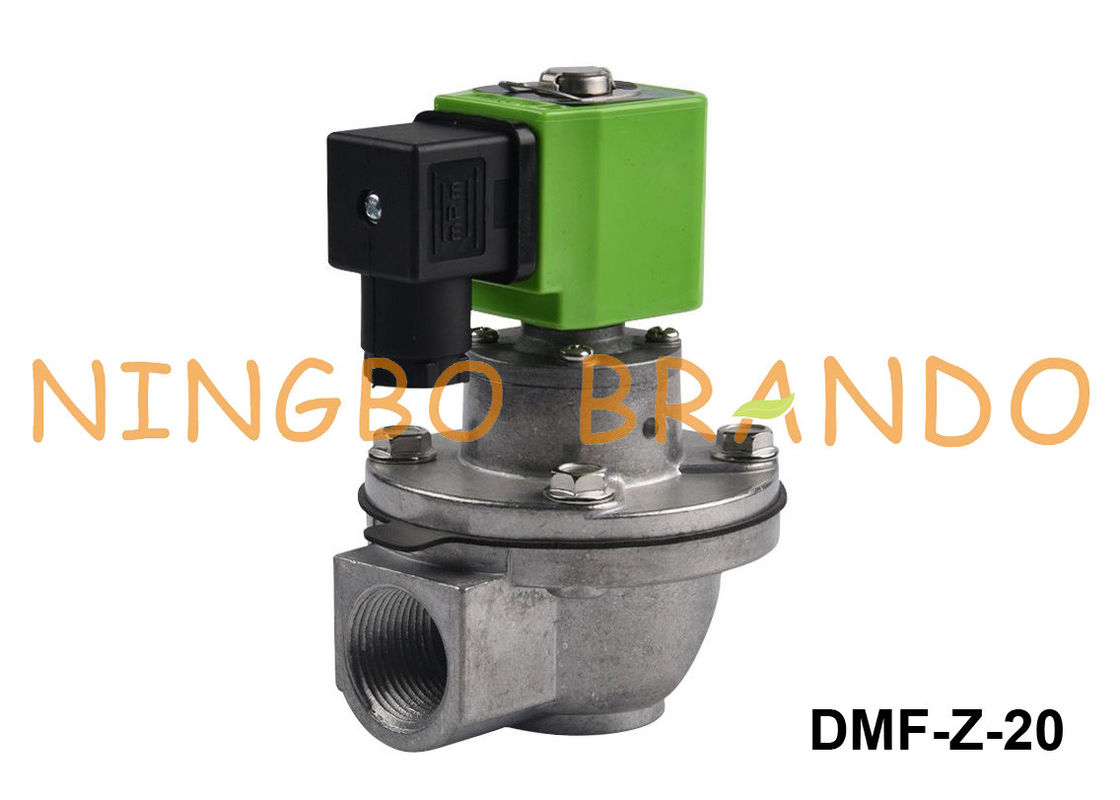

BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector

BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector

  • BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector
  • BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector
  • BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector
BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector
Product Details:
Place of Origin: CHINA
Brand Name: BRANDO
Certification: CE
Model Number: DMF-Z-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Box,Carton,Pallet
Delivery Time: 4-7 days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: BFEC Pulse Jet Valve Valve Type: Right Angle (Threaded)
Port Size: 3/4'' Coil Voltage: 24V, 220V
Diaphragm Material: NBR No Of Diaphragm: 1
High Light:

Pulse Solenoid Valve

,

Solenoid Valve For Dust Collector

,

SBFEC DMF-Z-20

BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector



Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.


Technical Data of  Z series Right Angle Pulse Jet Valves:

Model
Nominal diametrer
Number of diaphragms
Inlet
Outlet
Weight (kg)
mm
inch
DMF-Z-20
Φ20
3/4''
1
3/4''
3/4''
0.65
DMF-Z-25
Φ25
1'''
1
1''
1''
0.8
DMF-Z-40S
Φ40
1 1/2''
2
1 1/2''
1 1/2''
1.4
DMF-Z-50S
Φ50
2''
2
2''
2
2.4
DMF-Z-62S
Φ62
2 1/2''
2
2 1/2''
2 1/2''
3.5
DMF-Z-76S
Φ76
3''
2
3''
3''
4.3
DMF-Z-90S
Φ90
3 1/2''
2
3 1/2''
3 1/2''
5.75
DMF-Z-102S
Φ102
4''
2
4''
4''
7.3
DMF-20L-B
Φ20
3/4''
1
3/4''
Φ27
0.75



Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.



Dimension of DMF-Z-20 BFEC Pulse Jet Valve:

BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector 0



Video of BFEC Dust Collector Pulse Jet Valves:


More BFEC Pulse Valve For You to Choose:

BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector 1BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector 2BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector 3

           Right Angle Type                         Quick Mount Type                         Submerged Type

BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector 4BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector 5 BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector 6 BFEC DMF-Z-20 3/4'' Diaphragm Pulse Solenoid Valve For Dust Collector 7

            Diaphragm                     Solenoid Coil                  Armature Assembly            Pulse Controller
