| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V410-15 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Port Size: | In=Out=Exhaust=1/2'' | Valve Type: | Single Solenoid 5 Port 2 Position |
|---|---|---|---|
| Voltage: | 220VAC 110VAC 24VDC 12VDC | Connector: | Terminal & Grommet |
| Working Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
| Max. Frequency: | 5 Cycle/sec | Body Material: | Aluminum Alloy |
| Fluid: | Air (to Be Filtered By 40 μm Filter Element) | Application: | Automation |
| High Light: | 4V410-15 Pneumatic Solenoid Valve,Single Coil Pneumatic Solenoid Valve,4V410-15 Air Direction Valve |
||

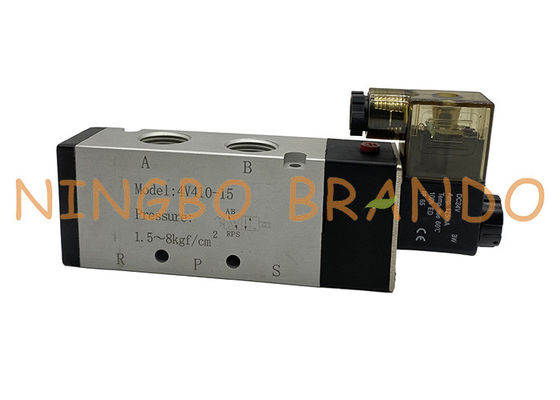

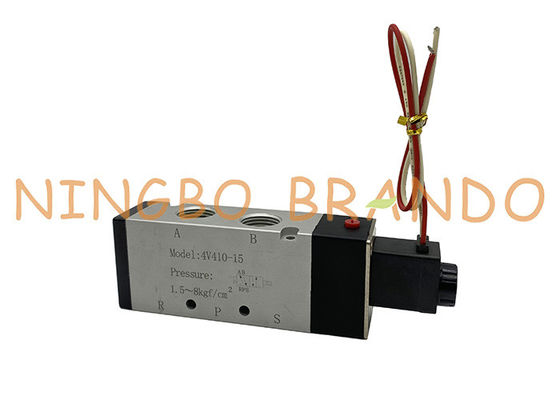

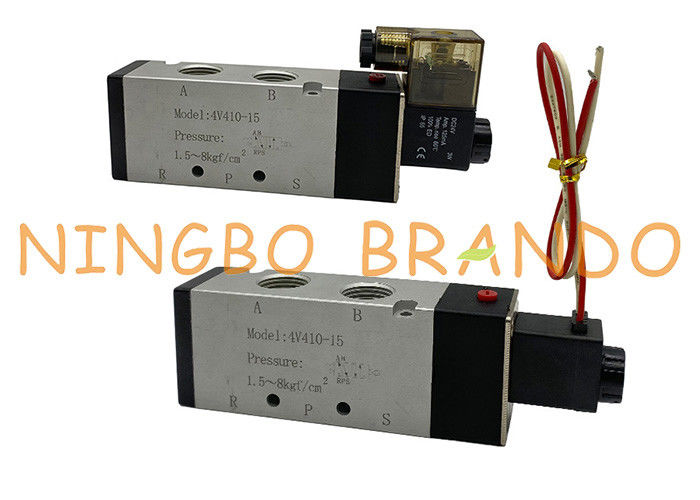

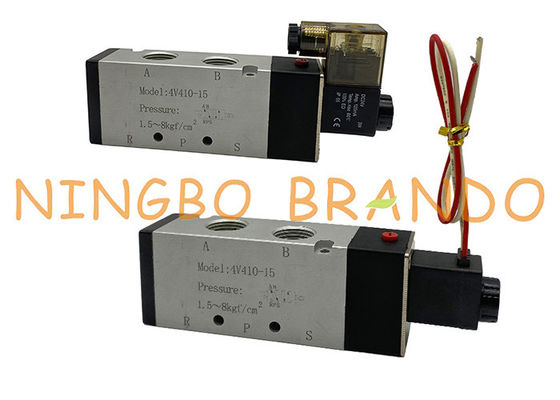

4V410-15 1/2'' Single Coil Pneumatic Solenoid Valve
Pneumatic valve can also be called gas solenoid valve, solenoid valve or only air valve. Pneumatic solenoid valves are widely used in many different industries and applications can include compressed aerodynamic tools such as jackhammers and nail guns, vacuum cleaners, ventilation systems, laser printers and medical and dental pneumatic equipment.
Many industries rely on proportional solenoid valves to accurately regulate the flow of fluids, gases, and air in and out of components for a variety of applications. These valves may be made of plastic or metal (e.g. stainless steel). Pneumatic air valves facilitate multi-line valves because air can be easily compressed and directed to different outlets, while solenoid guides allow applications such as space heating to be easily automated, activated or remotely triggered.
5/2 Way Single Coil Pneumatic Solenoid Valve:4V110-06, 4V110-08, 4V210-06, 4V210-08, 4V310-08, 4V310-10, 4V410-15
5/2 Way Double Coil Pneumatic Solenoid Valve:4V120-06, 4V120-08, 4V220-06, 4V220-08, 4V320-08, 4V320-10, 4V420-15
5/3 Way Double Coil Pneumatic Solenoid Valve:4V130C-06, 4V130C-08, 4V230C-06, 4V230C-08, 4V330C-08, 4V330C-10, 4V430C-15
Technical Data:
|
Model
|
4v410-15
|
4V420-15
|
4V430C-15
|
4V430E-15
|
4V430P-15
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
||||
|
Acting
|
Internal pilot or external pilot
|
||||
|
Port Size
|
In=Out=Exhaust=1/2''
|
||||
|
Orifice Size
|
50.00 mm² (Cv=2.79)
|
30.00 mm² (Cv=1.68)
|
|||
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
|||
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
||||
|
Proof
|
1.5MPa (215psi)
|
||||
|
Temperature ℃
|
-20 to 70
|
||||
|
Material of Body
|
Aluminum alloy
|
||||
|
Max. frequency
|
3cycle/sec
|
||||
Dimension Diagram:
4V410(Grommet)
4V410(Terminal)
Brando Supply:
1.Solenoid Valve:
Pulse Jet Valve: Goyen Type Pulse Jet Valve, SBFEC Type Pulse Jet Valve, ASCO Type Pulse Jet Valve , Turbo Type Pulse Jet Valve.
Direct Acting Solenoid Valve:Brass Solenoid Valve, Stainless Steel Solenoid Valve, Plastic Solenoid Valve and etc.
Refrigeration Solenoid Valve:Castel Type Solenoid Valve, Danfoss Type Solenoid Valve.
2.Repair Kit:Solenoid Coil, Solenoid Armature/Stem, Diaphragm Repair Kit and etc.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
