| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | CE |
| Model Number: | DMF-Y-76S |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Inner Box,Carton,Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Product Name: | BFEC Pulse Jet Valve | Valve Type: | Submerged |
|---|---|---|---|
| Port Size: | 3'' | Coil Voltage: | 24V, 220V |
| Diaphragm Material: | NBR | No Of Diaphragm: | 2 |
| High Light: | Submerged Pulse Valve,Pulse Valve For Dust Collector,SBFEC DMF-Y-76S |
||

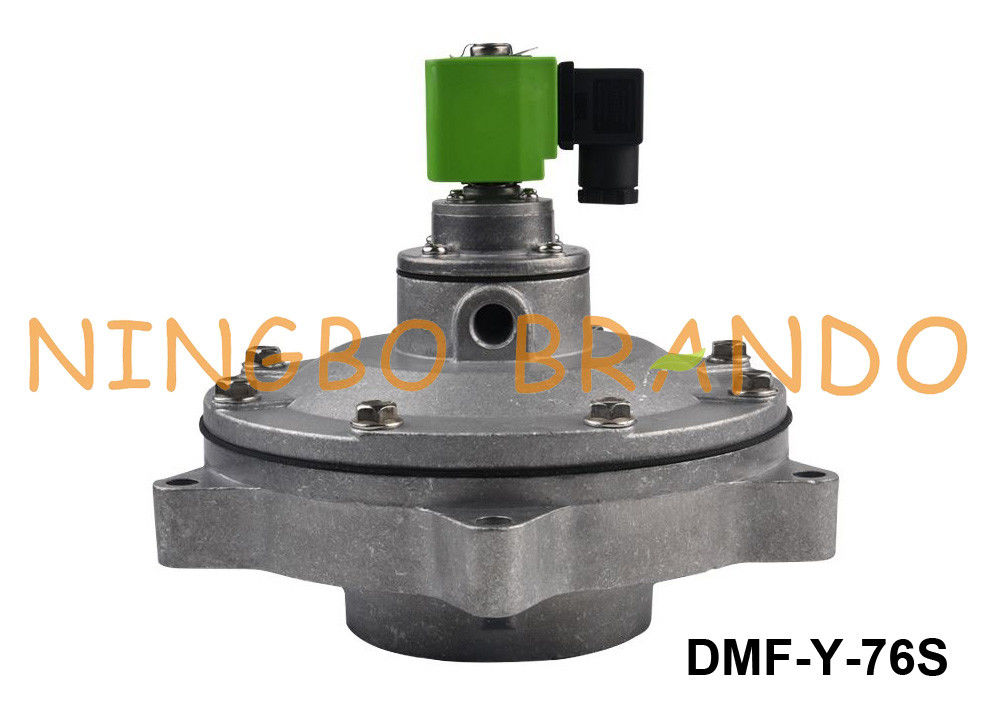

3 Inch DMF-Y-76S BFEC Submerged Pulse Valve For Dust Collector
Submerged pulse jet valve for pulse jet dust bag filter. This type of pulse valve using submerged in the air bag in the structure, compared with other structure, reducing the channel resistance, reducing the supply pressure blowing spray, which can be applied in low pressure situations, and can reduce energy consumption and extend the membrane life.
Product Structure:
Housing: valve housing and cover are made of die cast aluminum alloy, good appearance, high intensity, to ensure that no air leaks. Pressure flow channel valve design is reasonable, the valve opening and closing and basically located in the air bag, truly a "submerged" by the air bag directly into the air injection tube, which really achieve the low pressure, high volume injection requirements.
Solenoid valve: a large displacement of the diaphragm in a short time can be 0.08 to 0.1 seconds to ensure the opening degree of the valve . Optional imported materials developed synthetic rubber diaphragm when applied to a cold climate. Operating temperature between -40 ℃ to 55 ℃, and ensures the longest working life.
Technical Data of Y series Submerged Pulse Jet Valves:
Dimension of DMF-Y-76S BFEC Pulse Jet Valve:
Video of DMF-Y-76S Submerged Pulse Jet Valve:
More BFEC Pulse Valve For You to Choose:
Right Angle Type Quick Mount Type Submerged Type
Diaphragm Solenoid Coil Armature Assembly Pulse Controller
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
