| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V120-06 |
| Minimum Order Quantity: | 200pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 100000 pcs per month |
| Port Size: | In=Out=1/8'' | Valve Type: | Double Solenoid 5 Port 2 Position |
|---|---|---|---|
| Voltage: | 220VAC 110VAC 24VDC 12VDC | Connector: | Terminal & Grommet |
| Working Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
| Max. Frequency: | 5 Cycle/sec | Body Material: | Aluminum Alloy |
| Fluid: | Air (to Be Filtered By 40 μm Filter Element) | Application: | Automation |
| High Light: | DIN Connector Pneumatic Solenoid Valve,4V120-06 Pneumatic Solenoid Valve,4V100 Series Air Control Valve |
||

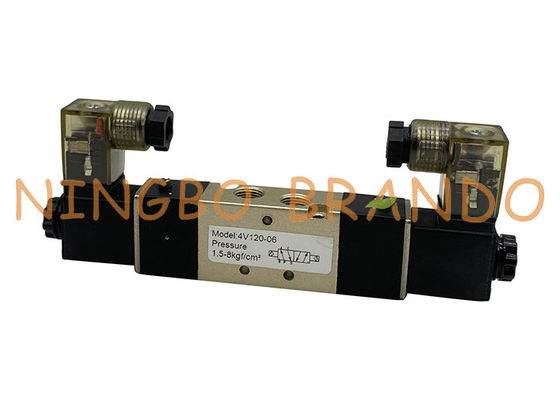

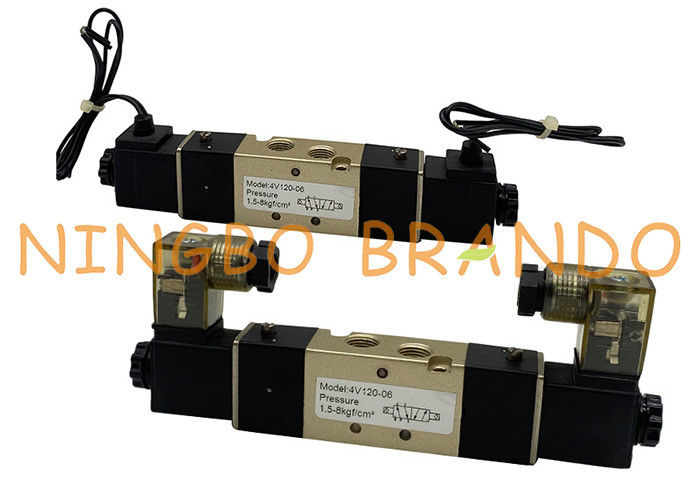

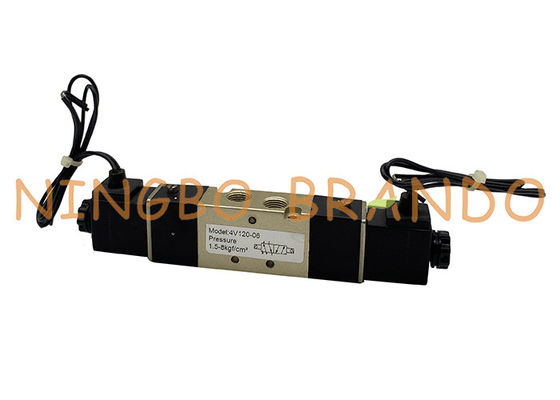

4V120-06 5/2 Way DIN Connector Fly Leads Pneumatic Air Control Valve
Two-position five-way solenoid valve
1. The piston rod must be flexible. Manual test, you should feel relaxed when pressing the piston rod. After releasing the hand, the piston
The rod can automatically return to the original position before being pressed under the action of the spring force. If it cannot be driven automatically, please remove the dust inside the valve body and the piston rod and treat it with high-quality lubricating oil to ensure the free movement of the piston rod.
2. Pilot valve The piston must be able to move easily and freely like the piston rod, and the treatment method is the same as above.
3. The air path for the pilot valve to work normally must be unobstructed.
The air path is unobstructed.
4. When the electromagnetic coil is energized under normal conditions, the closing part should be lifted and there will be a sound of pulling in. If abnormal check line
Whether the ring is burnt and whether there is debris inside the closing part, handle it by measuring and cleaning the debris.ete
Technical Data:
|
Model
|
4V110-06
4V120-06
|
4V130C-06
4V130E-06
4V130P-06
|
4V110-08
4V120-08
|
4V130C-08
4V130E-08
4V130P-08
|
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
|
Acting
|
Internal pilot or external pilot
|
|||
|
Port Size
|
In=Out=1/8''
|
In=Out=1/4''
|
||
|
Orifice Size
|
5.5 mm2 (Cv=0.31)
|
5.0 mm2 (Cv=0.28)
|
12.00 mm2 (Cv=0.67)
|
9.00 mm2 (Cv=0.50)
|
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
|||
|
Proof Pressure
|
1.5MPa (215psi)
|
|||
|
Temperature ℃
|
-20~70
|
|||
|
Material of Body
|
Aluminum alloy
|
|||
|
Max. frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
Dimension Diagram:
4V120(Grommet)
4V120(Terminal)
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Mia
Tel: +8613454729544
