Place of Origin: | China |
Brand Name: | Brando |
Certification: | CE |
Model Number: | 4V110-06 |
Minimum Order Quantity: | 200pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Box, Carton, Pallet |
Delivery Time: | 15 working days |
Payment Terms: | T/T, Western Union, Paypal |
Supply Ability: | 100000 pcs per month |
Port Size: | In=Out=1/8'' | Valve Type: | Single Solenoid 5 Port 2 Position |
---|---|---|---|
Voltage: | 220VAC 110VAC 24VDC 12VDC | Connector: | Terminal & Grommet |
Working Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
Max. Frequency: | 5 Cycle/sec | Body Material: | Aluminum Alloy |
Fluid: | Air (to Be Filtered By 40 μm Filter Element) | Application: | Automation |
High Light: | 4v110-06 Pneumatic Solenoid Valve,Grommet Pneumatic Solenoid Valve,4V100 Series Single Solenoid |

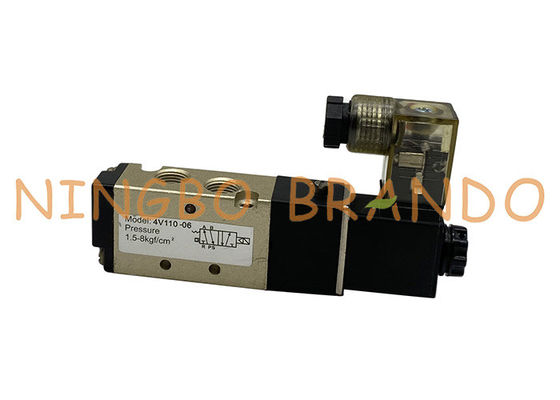

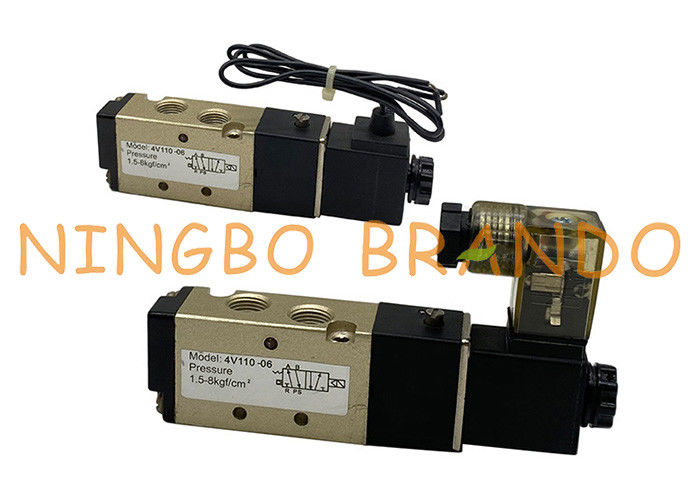

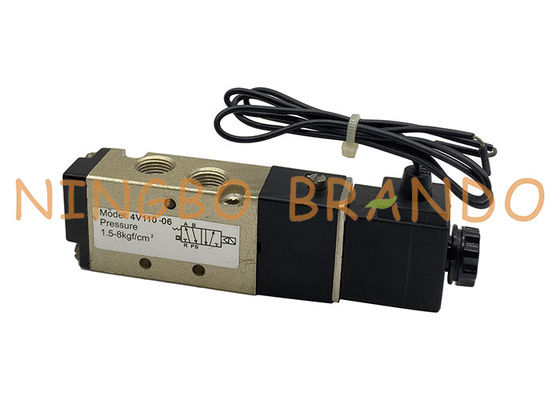

5/2 Way 4V110-06 1/8'' Grommet Terminal Pneumatic Solenoid Valve
Use of 5/2-way pneumatic solenoid valve
It is inevitable that the solenoid valve will malfunction during use. The working principle of the solenoid valve and the steps of fault inspection, judgment, treatment and maintenance are organized as follows:
1. Composition structure and working principle:
a, composition structure: composed of electrical parts and pneumatic execution parts;
b, Working principle;
1) When the electrical part is electrified, the electromagnetic coil generates electromagnetic force to lift the closing part from the sealed air hole, compressing the air
When air enters the pilot valve, the pilot valve works; when the power is off, the electromagnetic force disappears, and the valve action is reversed;
2) The pneumatic pneumatic actuator moves together by the pilot valve piston and the spring at the other end of the main piston rod to complete
Technical Data:
Model
|
4V110-06
4V120-06
|
4V130C-06
4V130E-06
4V130P-06
|
4V110-08
4V120-08
|
4V130C-08
4V130E-08
4V130P-08
|
Fluid
|
Air(to be filtered by 40 μ m filter element)
|
|||
Acting
|
Internal pilot or external pilot
|
|||
Port Size
|
In=Out=1/8''
|
In=Out=1/4''
|
||
Orifice Size
|
5.5 mm2 (Cv=0.31)
|
5.0 mm2 (Cv=0.28)
|
12.00 mm2 (Cv=0.67)
|
9.00 mm2 (Cv=0.50)
|
Valve Type
|
5 port 2 position
|
5 port 3 position
|
5 port 2 position
|
5 port 3 position
|
Operating Pressure
|
0.15~0.8MPa (21~114psi)
|
|||
Proof Pressure
|
1.5MPa (215psi)
|
|||
Temperature ℃
|
-20~70
|
|||
Material of Body
|
Aluminum alloy
|
|||
Max. frequency
|
5 cycle/sec
|
3 cycle/sec
|
5 cycle/sec
|
3 cycle/sec
|
Dimension Diagram:
4V110(Grommet)
4V110(Terminal)
