| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | CE |
| Model Number: | CA35T |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Inner Box,Carton,Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 165000 pieces per month |
| Port Size: | 1 1/2'' | Coil Voltage: | 24VDC, 220VAC |
|---|---|---|---|
| Workinｇ Pressure Range: | 0.3 To 0.8MPa | Threaded Pulse Jet Valve: | CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T |
| Dresser Nut Pulse Jet Valve: | CA25DD, RCA25DD, CA45DD | Immersion Pulse Jet Valve: | CA50MM, CA62MM, CA76MM, CA89MM |
| Flanged Pulse Jet Valve: | CAC25FS, CAC45FS | Remote Pilot Pulse Jet Valve: | RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T |
| Application: | Cartridge Filters, Envelope Filters, Ceramic Filters, Sintered Metal Fiber Filters | ||
| High Light: | Bag Filter Pulse Jet Valve,Goyen Pulse Jet Valve,Baghouse Diaphragm Valve |
||

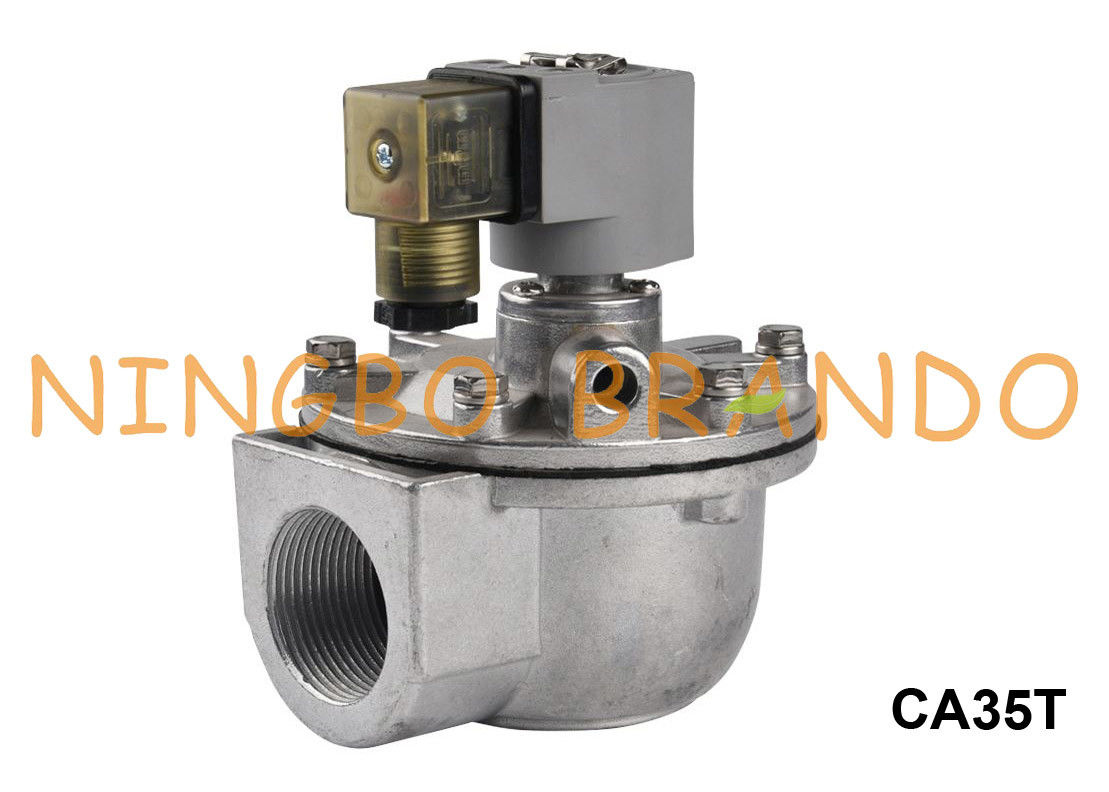

1.5 Inch CA35T Goyen Type Bag Filter Pulse Jet Valve
Application:
Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.
List of Goyen Type Pulse Jet Valves:
1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T
Technical data of Right Angle Pulse Jet Valves:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Nonimal size
|
φ15
|
φ20
|
φ25
|
φ35
|
φ45
|
φ50
|
φ62
|
φ76
|
|
Port Size
|
G1/2''
|
G3/4''
|
G1''
|
G1 1/4''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
|
Working pressure
|
0.3 to 0.8MPa
|
|||||||
|
Temp. range
|
-5℃ to 55℃
|
|||||||
|
Relative humidity
|
≤85%
|
|||||||
|
Working
medium
|
Compressed clean air
|
|||||||
|
Voltage
|
24VDC, 220VAC
|
|||||||
Dimension of CA35T Goyen Type Pulse Jet Valve:
Video of CA35T Goyen Type Pulse Jet Valve:
Detail images of Goyen Type Pulse Jet Valves:
More Goyen Type Pulse Valve For You to Choose:
Threaded Type Immersion Type Dresser Nut Type Flanged Type
RCA Series Solenoid Coil Armature Assembly Pulse Controller
Installation:
1. Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
2. Ensure tank and pipes are free from dirt, rust or other particulate.
3. Ensure supply air is clean and dry.
4. Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
5. Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
6. Apply moderate pressure to system and check for installation leaks.
7. Fully pressurise system.
8. Test fire and listen for proper actuation and crisp pulse noise.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
