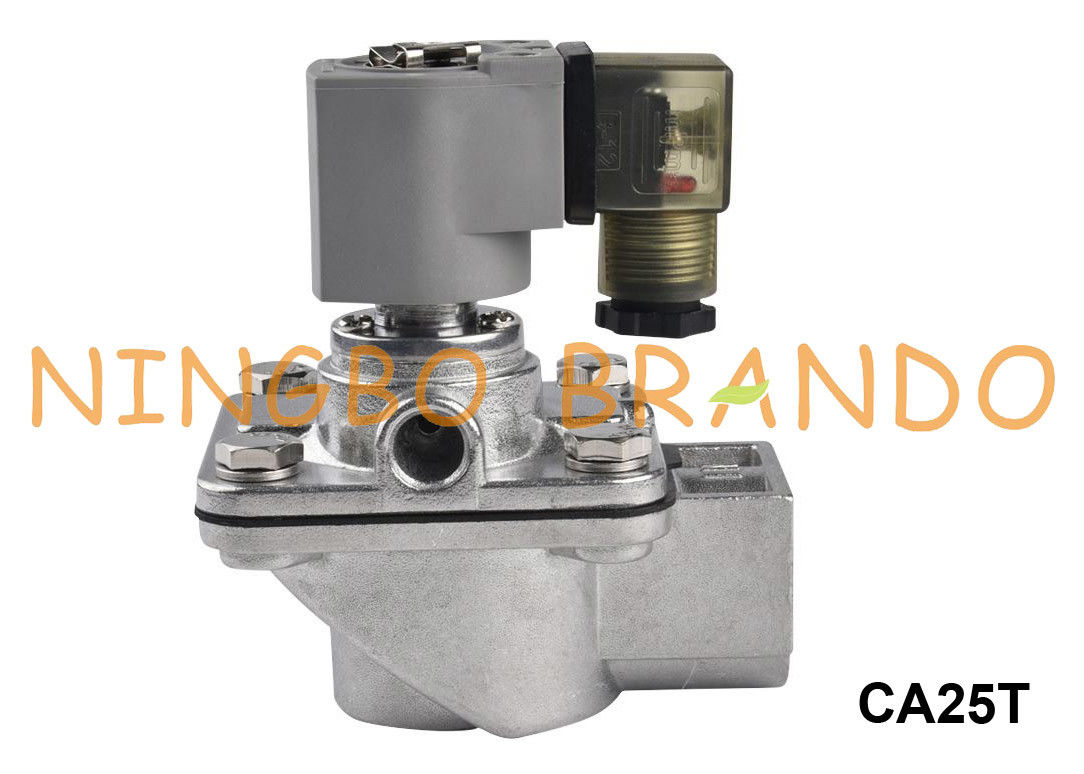

CA25T000 CA25T000-300 CA25T000-305 1'' Goyen Type Pulse Jet Valve

CA25T000 CA25T000-300 CA25T000-305 1'' Goyen Type Pulse Jet Valve

Keeping baghouse pulse jet valves in good working condition is key to maintaining efficiency in a dust collection system. Diaphragms within the pulse valves require regular replacement, usually every few years (depending on the application). Maintaining your baghouse’s pulse valves in good working order can have an enormous impact on the efficiency and operation of your system.

Brando supplies a full line of pulse valves and repair kits for all major pulse valve makes and models (including Goyen, Asco, Sbfec and Turbo). Generally, our replacement diaphragm repair kits are cheaper than those directly purchased from the original manufacture. We also carry solenoids (remote and integral) to fit all makes and models.

Dimension of CA25T Goyen Type Pulse Jet Valve:

Video of CA25T Goyen Type Pulse Jet Valve:

Technical data of Right Angle Pulse Jet Valves:

More Goyen Type Pulse Valve For You to Choose:

       Threaded Type                   Immersion Type                Dresser Nut Type             Flanged Type

          RCA Series                          Solenoid Coil                Armature Assembly            Pulse Controller

Working Principles:

The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.

When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity.

The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.

When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.

The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
