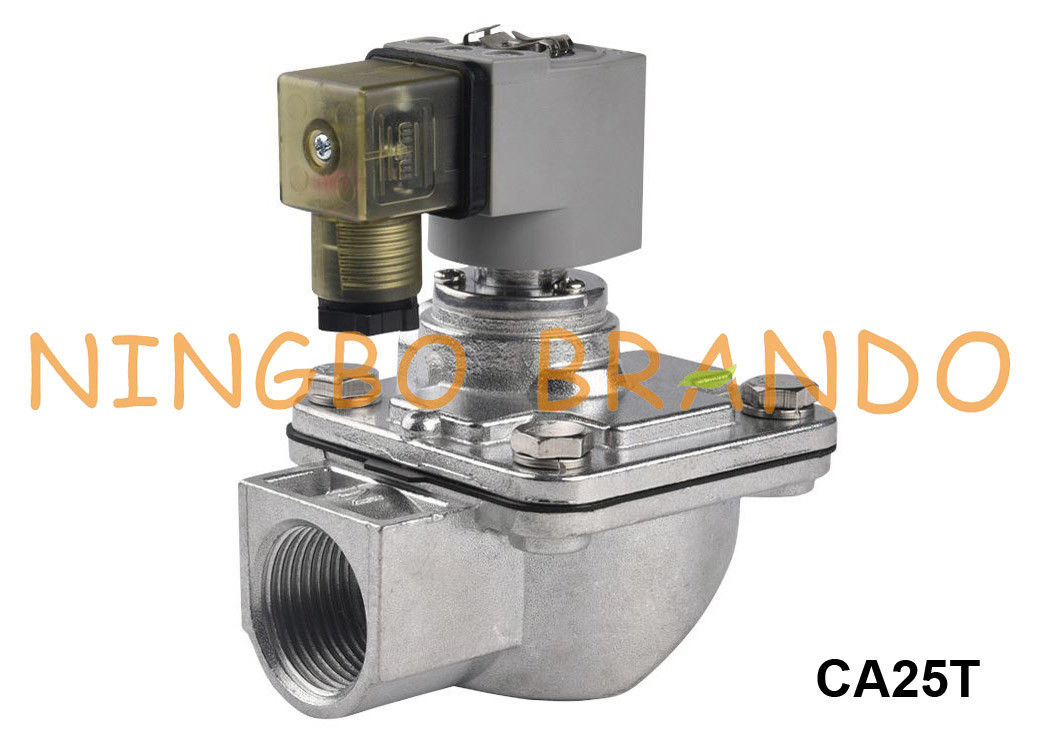

CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve

CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve

CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve
CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve

Product Details:

Place of Origin: CHINA
Brand Name: BRANDO
Certification: CE
Model Number: CA25T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Box,Carton,Pallet
Delivery Time: 4-7 days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 165000 pieces per month
Contact Now
Detailed Product Description
Port Size: 1'' Coil Voltage: 24VDC, 220VAC
Working Pressure Range: 0.3 To 0.8MPa Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
Flanged Pulse Jet Valve: CAC25FS, CAC45FS Remote Pilot Pulse Jet Valve: RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T
Application: Cartridge Filters, Envelope Filters, Ceramic Filters, Sintered Metal Fiber Filters
High Light:

Goyen Pulse Jet Valve CA25T010-305

,

Goyen Pulse Jet Valve CA25T010-300

,

Goyen Right Angle Valve

CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve



Description:



This series of pulse jet valves includes models with threaded connections from 3/4'' to 3''. These valves are particular used for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters.



They have an inlet port at 90° to the outlet port.



The pulse jet valves differ in types with an integrated pilot valve or with external pneumatic control.



The special design ensures extremely fast opening, high flow and easy installation.



Optionally, we also offer versions with ATEX certified pilot valves.

A well thought-out structure and a fast delivery time for spare parts such as diaphragms, springs and coils enable simple maintenances.



Dimension of CA25T Goyen Type Pulse Jet Valve:

CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 0



Video of CA25T Goyen Type Pulse Jet Valve:



Technical data of Right Angle Pulse Jet Valves:

Model No
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Nonimal size
φ15
φ20
φ25
φ35
φ45
φ50
φ62
φ76
Port Size
G1/2''
G3/4''
G1''
G1 1/4''
G1 1/2''
G2''
G2 1/2''
G3''
Working pressure
0.3 to 0.8MPa
Temp. range
-5℃ to 55℃
Relative humidity
≤85%
Working
medium
Compressed clean air
Voltage
24VDC, 220VAC



More Goyen Type Pulse Valve For You to Choose:


CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 1CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 2CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 3CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 4

       Threaded Type                   Immersion Type                Dresser Nut Type             Flanged Type

CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 5CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 6CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 7CA25T010-300 CA25T010-305 CA25T010 1'' Goyen Type Pulse Jet Valve 8

          RCA Series                          Solenoid Coil                Armature Assembly            Pulse Controller



Working Principles:



The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.



When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity.



The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.



When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.



The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
