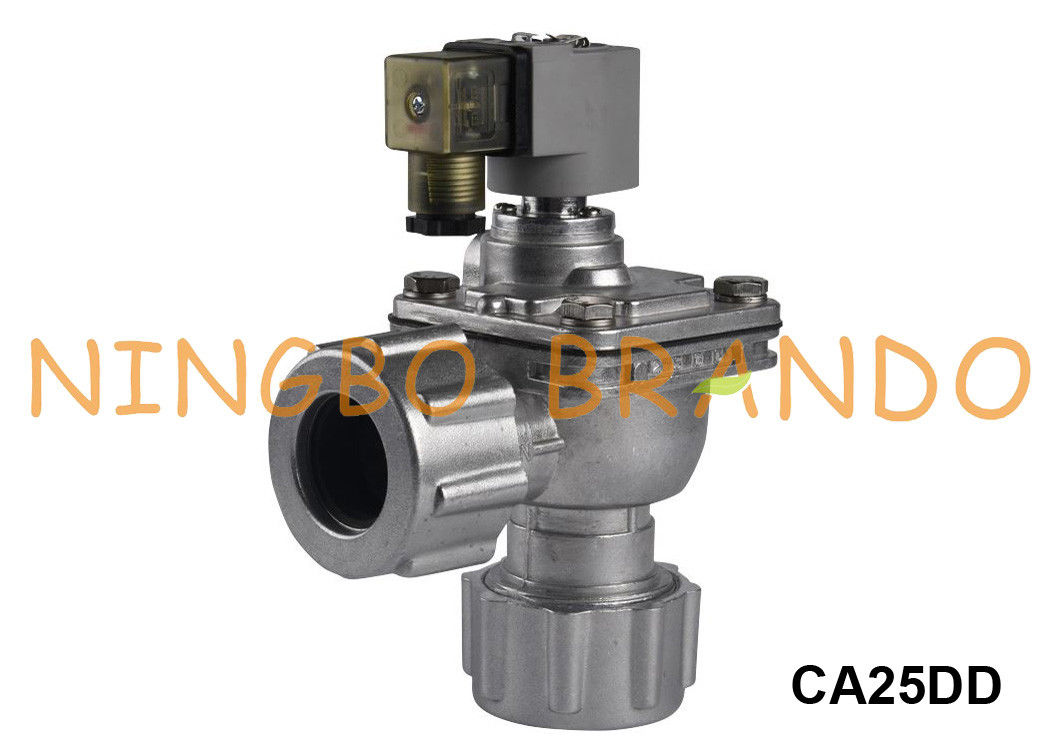

CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve

CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve

CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve
video
CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve
Product Details:
Place of Origin: CHINA
Brand Name: BRANDO
Certification: CE
Model Number: CA25DD
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Box,Carton,Pallet
Delivery Time: 4-7 days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 165000 pieces per month
Contact Now
Detailed Product Description
Port Size: 1'' Coil Voltage: 24VDC, 220VAC
Working Pressure Range: 0.3 To 0.8MPa Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
Flanged Pulse Jet Valve: CAC25FS, CAC45FS Remote Pilot Pulse Jet Valve: RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T
Application: Cartridge Filters, Envelope Filters, Ceramic Filters, Sintered Metal Fiber Filters
High Light:

Dresser Nut Pulse Jet Valve

,

Goyen Pulse Jet Valve CA25DD

,

Goyen Pulse Jet Valve CA25DD010

CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve



This is CA25DD Goyen Type Dresser Nut Pulse Jet Valve; Reference No: CA25DD000, CA25DD001, CA25DD010, CA25DD000-300, CA25DD001-300, CA25DD010-300, CA25DD000-305, CA25DD001-305, CA25DD010-305, CA25DD000-331, CA25DD001-331, CA25DD010-331. Dresser Nut port connection; NBR diaphragm; 24V DC, 220V AC (50/60Hz) voltages for you to choose; other voltages can be customized.



Pulse Jet Valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device. This system cleans the filter bags cluster by cluster with high-pressure blowing to keep the pressure resistance of the baghouse within a pre-set range, and thus ensure the processing capability and the dust-collecting efficiency of the baghouse.



Dimension of CA25DD Goyen Type Pulse Jet Valve:

CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 0



Video of CA25DD Goyen Type Pulse Jet Valve:



Technical data of Dresser Nut Pulse Jet Valves:

Model
CA20DD
CA25DD
CA45DD
Nominal Size
20
25
45
Port size
mm
20
25
40
in
3/4''
1''
1-1/2''
Number of Diaphragms
1
1
2
Flow
Kv
12
20
44
Cv
14
23
51
Pressure (Psi)
5 to 125
5 to 125
5 to 125
Temperature (℃)
NBR
-40 to 82
-40 to 82
-40 to 82
FKM
-29 to 232
-29 to 232
-29 to 232


More Goyen Type Pulse Valve For You to Choose:


CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 1CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 2CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 3CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 4

       Threaded Type                   Immersion Type                Dresser Nut Type             Flanged Type

CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 5CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 6CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 7CA25DD CA25DD010 Goyen Type Dresser Nut Pulse Jet Valve 8

          RCA Series                          Solenoid Coil                Armature Assembly            Pulse Controller



Working Principles:



The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.



When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity.



The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.



When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.



The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
