|Port Size:||3/4''||Coil Voltage:||24VDC, 220VAC|
|Workinｇ Pressure Range:||0.3 To 0.8MPa||Threaded Pulse Jet Valve:||CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T|
|Dresser Nut Pulse Jet Valve:||CA25DD, RCA25DD, CA45DD||Immersion Pulse Jet Valve:||CA50MM, CA62MM, CA76MM, CA89MM|
|Flanged Pulse Jet Valve:||CAC25FS, CAC45FS||Remote Pilot Pulse Jet Valve:||RCA25DD, RCA20T, RCA45T, RCA50T, RCA62T|
|Application:||Cartridge Filters, Envelope Filters, Ceramic Filters, Sintered Metal Fiber Filters|
Goyen Pulse Jet Valve CA20T000-331,
Goyen Pulse Jet Valve CA20T001-331,
Goyen Diaphragm Valves

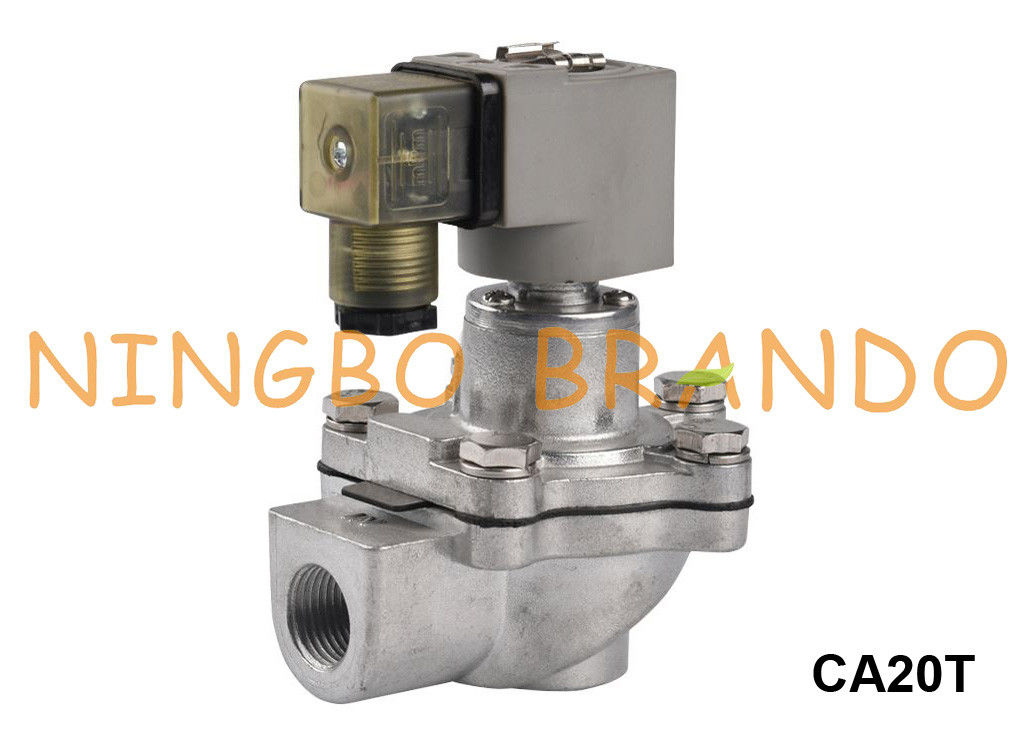

CA20T000-331 CA20T001-31 3/4 Inch CA20T Goyen Type Pulse Jet Valve
Pulse Valve Operation:
Our pulse valves are operated by integral solenoid pilot operator. When the valve is energised, the trapped air above pulse valve diaphgram is quickly exhausted causing fast opening of main diaphragm valve. When the pilot operated valve is de - energised , air escapes through bleed hole of main pulse valve to balance the diaphragm pressure and instantly closes the valve.
Duty Cycle : The relative duty time cycle for ac voltage is 20% and for DC voltage is 10 % .This implies energised time is maximum 1/5th of de-energised time for AC and 1/10th for DC voltage.
Installation : Mounting in any position will not affect pulse valve operation. However good engineering practice is to avoid scale and condensed water entering valve body for trouble free performance.
Dimension of CA20T Goyen Type Pulse Jet Valve:
Video of CA20T Goyen Type Pulse Jet Valve:
Technical data of Right Angle Pulse Jet Valves:
More Goyen Type Pulse Valve For You to Choose:
Threaded Type Immersion Type Dresser Nut Type Flanged Type
RCA Series Solenoid Coil Armature Assembly Pulse Controller
The electromagnetic pulse valve is composed of electromagnetic pilot operator, diaphragm and valve body. Due to difference of pressure acting on two sides of the diaphragm, the diaphragm is pressed closely against the outlet of valve to keep the valve stays in “closed” position.
When energized by an electric signal from the controller, the electromagnetic armature will move to open the discharge opening of back cavity.
The compressed air in back cavity bursts out to relief pressure and pressurized air in front cavity pushes up the diaphragm to open the main outlet of valve, then the electromagnetic pulse valve opens and starts to blow.
When the signal disappears and the spring works immediately to send the pilot operator back to its original position and close the discharging opening. The diaphragm will close the passage by the effect of the pressure in the front cavity and the spring. The pulse valve stops blowing.
The orifice in the diaphragm damps the airflow when the armature is lifting up for releasing the pressure. When the discharge hole closed, the pressure gas will fill into the front cavity to close the passage by the diaphragm. The pulse valve stops blowing.
