| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | G20B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 4-8 day Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Size: | 3/4'' | Air Hole: | With |
|---|---|---|---|
| Spring: | With | Packaging: | Individual Sealed |
| Diaphragm Material: | Nitrile/Buna | Suitable Valve Number: | CA20, RCA20 |
| Diaphragm Outer Distance: | 74mm | Application: | CA20T Bag Dust Filter System |
| Sealing Gasket ID: | 40mm | ||
| High Light: | 3/4'' Diaphragm Repair Kit,K2000 M1204B Diaphragm Repair Kit,K2002 M764 Diaphragm Repair Kit |
||
Goyen Type 3/4'' CA/RCA20DD CA/RCA20T Pulse Valve Diaphragm Repair Kit K2000 M1204B K2002 M764 K2003 M1174B
The quality of pulse valve diaphragm will directly affect the work stability of the dust removal system of pulse bag filter, and directly affect the use cost of dust removal equipment. Our company promises that our pulse valve diaphragm can be used for more than one million times/two years of quality assurance, and the use of our pulse valve diaphragm can directly reduce the use cost of dust removal equipment.
Deference number:
| Material | Repair kit | Fitted Valve Model | Port Size |
| Buna/Nylon | K2000(M1204B) | CA20, RCA20, RCAC20 | 3/4'' |
| K2003(M1174B) | |||
| K2016 | |||
| K2034 | |||
| Buna/Buna | K2002(M764) | ||
| FKM | K2007(M2080B) | ||
| K2004(1328B) | |||
| K2017 | |||
| K2033 | |||
| Buna/Nylon | K2501(M1183B) | CA25, RCA25, RCAC25 | 1'' |
| K2529 | |||
| K2549 | |||
| K2531 | |||
| K2545 | |||
| K2546 | |||
| Buna/Buna | K2502(M736) | ||
| FKM | K2503(M1887) | ||
| K2530 | |||
| K2532 | |||
| K2551 | |||
| Buna/Nylon | K2500(M1183) |
CA32, RCA32, CA35, RCA35,
CA40, RCA40, CA45, RCA45
|
1-1/2'' |
| K3500(M1581) | |||
| K4000(M1182) | |||
| K4502(M2162) | |||
| Buna/Buna | K3502(M1591) | ||
| K4504(M2187) | |||
| FKM | K2503(M1887) | ||
| K4004(M1761) | |||
| K4007(M1156) | |||
| K4503(M2163) | |||
|
Buna/Nylon Buna/Buna |
K5004(M1638A) | CA50, RCA50, CA62, RCA62 | 2'' , 2-1/2'' |
| K5005(M1639A) | |||
| FKM | K5000(M1157A) | ||
| K5002(M1528A) | |||
|
Buna/Nylon Buna/Buna |
K7600 | CA76, RCA76 | 3'' |
| K7604 | |||
| K7610 | |||
| FKM | K7602 | ||
| Buna/Nylon | K10200 | CA102, RCA102 | 4'' |
| Buna/Buna | K10203 | ||
| FKM | K10201 | ||
|
Buna/Nylon Buna/Buna |
K8000 | CA8, RCA8 | 8'' |
| FKM |

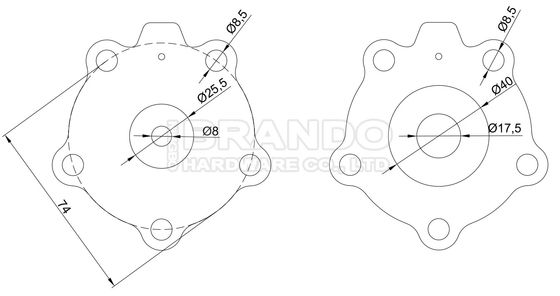

Dimension Diagram:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.
All Brand Replacement
|
|
|
| Repair CA/RA Valve | Repair SCG353A Valve | Repair DMF/MF Valve |
|
|
|
| Repair FD/FM Valve | Repair VEM/VNP Valve | Repair JISI/SIFI Valve |
|
|
|
| Repair Norgen Valve | Repair AE Valve | Repair TH Valve |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Mia
Tel: +8613454729544
