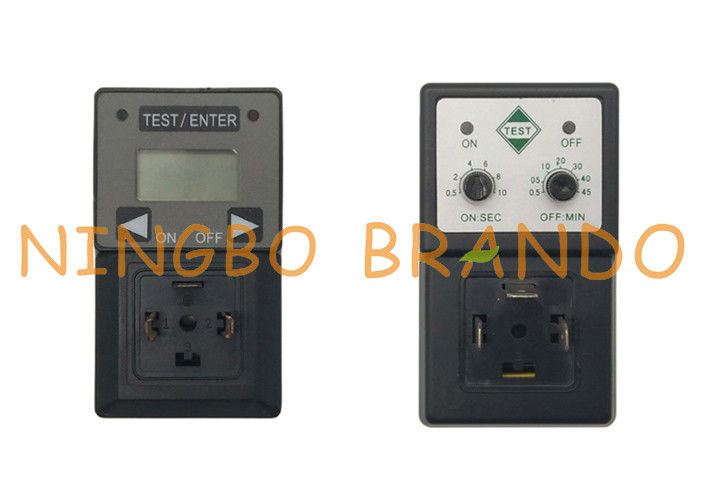

IP65 Digital Electronic Auto Drain Solenoid Valve Timer DIN 43650A

IP65 Digital Electronic Auto Drain Solenoid Valve Timer DIN 43650A

IP65 Digital Electronic Auto Drain Solenoid Valve Timer DIN 43650A
IP65 Digital Electronic Auto Drain Solenoid Valve Timer DIN 43650A

Product Details:

Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 720

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 sets per month
Contact Now
Detailed Product Description
Product Name: Solenoid Valve Timer Series: 720
Theory: Countdown Usage: Timer Switch
Protection Class: IP65 Inrush Current: 10A For 10ms
Duty Cycle: 100%ED Time ON: From 0.5 To 10s
Time OFF: From 0.5 To 45 Min Indicators: Yellow LED
Manual Override: Test Termination: DIN 43650 Form A
High Light:

Timer For Solenoid Valves

,

Solenoid Valve Cyclic Timer

,

Digital Electronic Timer For Drain Valve

IP65 Digital Electronic Auto Drain Solenoid Valve Timer DIN 43650A



Solid State cyclic, single shot and delay timers are used for simple automated ON/OFF control for solenoid valves, typically they fit directly between the solenoid valve coil and electrical DIN connector and come with a range either adjustable Time ON (Solenoid Valve Energised) and Time OFF (Solenoid Valve De Energised) or fixed timing cycles or schedules according to specific customer needs.



Typical Cyclic timers will provide LED Power ON and LED Power OFF indication, Manual Test button and most quality solid state cyclic timers will individually handle a voltage range from 24 volts to 250 volts with a current through put to the solenoid valve of up to 10 Amps.



Attention also needs to be focused on the Solenoid Valve coil / DIN Connector type and orientation. Obviously as these solid state cyclic timers fit between the coil and electrical connector they need to be the same DIN 43650 standard.



Repeat cycle timers, single shot timers and delay shot timers are supplied with either ISO 43650A form A and ISO 43650B form B fitment that typically fit directly between the solenoid valve coil and electrical Din connector without the need for additional time consuming wiring or cost of fitting.

Technical Data of Solenoid Valve Timer:

Supply voltage
24..240V AC/DC-50Hz/60Hz
Absorption current
4mA Max
Operating temperature
-10℃ to +50℃
Class protection
IP65-EN 60529
Switch holding voltage
400V Max
Switch capacity
1A
Inrush current
10A for 10ms
Duty cycle
100%ED
Switch life
3x10^8
Time ON
from 0.5 to 10s
Time OFF
from 0.5 to 45min
Indicators
Yellow LED
Manual override
Test
Termination
DIN43650A



Main Dimension of Solenoid Valve Timer:

BT-720A11



BT-720B12



Installation of Solenoid Valve Timer:

IP65 Digital Electronic Auto Drain Solenoid Valve Timer DIN 43650A 4



More Timer Controlled Solenoid Valves for you to choose:

IP65 Digital Electronic Auto Drain Solenoid Valve Timer DIN 43650A 5IP65 Digital Electronic Auto Drain Solenoid Valve Timer DIN 43650A 6

aaaaa


Applications
1. Sampling gas or Liquids
2. Air dryers
3. Effluent sampling
4. Sprinkler systems



Technical Specification
1. Auto drain valve: automatic discharge of condensate
2. Pneumatic vibration systems (e.g. Powder silos)
3. Automatic lubrication systems
4. Dosing systems
