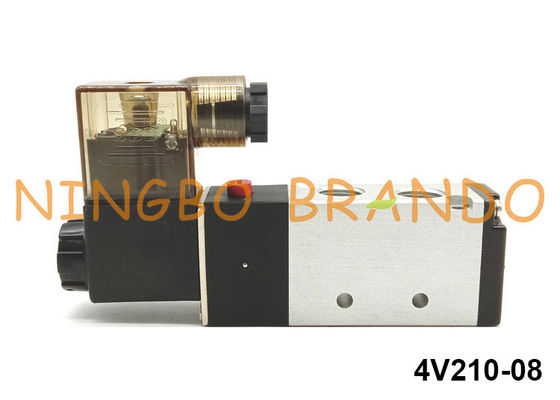

Airtac Type Pneumatic Air Solenoid Valve 4V210-08-DC24V 1/4'' NPT
This is 4V210-08 AirTAC type pneumatic solenoid valve, 1/4'' inlet & outlet port size, 1/8'' exhaust port size, (G, NPT, PT, BSP) thread types for you to selection, single solenoid, 5 way 2 position. The electric directional control valve controls the air flow by energizing the solenoid valve. These components are designed to stop, start or change the direction of the airflow. Brando offers multiple port and position configurations. Most air control valves are available with 220VAC, 110VAC, 24VDC or 12VDC solenoid coils. Select from 5/2 way, 5/2 way or 3/2 way.
Data of 4V Series Pneumatic Solenoid Valves:
Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'', Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-5~50
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec
Product Video of 4V210-08 Pneumatic Solenoid Valve:
Main dimension of 4V210-08 Pneumatic Solenoid Valve:
More Pneumatic Solenoid Valves for you to choose:
Brando is a Pneumatic Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).
