| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 2V025-08 |
| Minimum Order Quantity: | 300pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | Negotiation |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 sets per month |
| Product Name: | Airtac Type Solenoid Valve | Medium: | Air, Liquid, Vacuum |
|---|---|---|---|
| Operation: | Direct Acting | Function: | 2 Way, Normally Closed |
| Body Material: | Anodized Aluminum | Seal Material: | NBR |
| Port Size: | 1/4'' | Thread Type: | G, NPT, PT, BSP |
| Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) | Electrical Connector: | DIN Connector, Wire Leads |
| Highlight: | Airtac Solenoid Valve 2V025-08,2V025-08 Solenoid Valve,Solenoid Valve 1/4'' 2V025-08 |
||

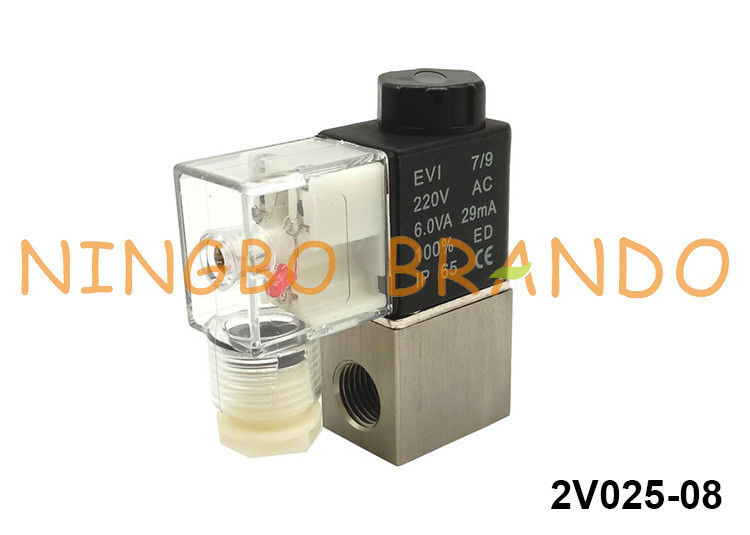

1/4'' PT NPT BSP Airtac Type Pneumatic Solenoid Valve 2V025-08-DC24V
Description of 2V025-08 Pneumatic Solenoid Valve:
1. 2 way normally closed solenoid valve is to control On/Off of air and inert gas.
2. 1/4'' inlet and outlet port size, G, NPT, PT, BSP thread types for you to chosse.
3. Several standard voltage levels are optional: 12V DC, 24V DC, 110V AC, 220V AC.
4. Valve stays close when the coil is de-energized and it opens when energized.
5. Has two holes in the bottom and can be mounted in any position.
6. Comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constant energized.
Product Video of 2V025-08 Pneumatic Solenoid Valve:
Main dimension of 2V025-08 Pneumatic Solenoid Valve:
Technical parameters of 2V Series Pneumatic Solenoid Valve:
| Valve Model | 2V025-06 | 2V025-08 |
| Valve Type | 2 Way, Normally Closed (NC) | |
| Action | Direct Acting (Poppet); Fast Response Time: <20msec | |
| Orifice (Cv) | 2.5mm (0.23); 22SCFM @ 100psi | |
| Operating Pressure | Vacuum to 115psi | |
| Operating Temperature | -4 to 140°F (-20 to 60°C) | |
| Port Size (Tube OD) | 1/8” NPT | 1/4" NPT |
| Wetted Surfaces |
Valve Body: Anodized Aluminum Seals: NBR Armature Assembly: Brass Option: Stainless Steel |
|
| Coil Duty | F Class, IP65,100% ED (Continuous Duty) | |
| Voltage | Options: 12, 24 VDC； 24,110/120 (50/60Hz), 220/240 VAC (50/60Hz) | |
| Voltage Tolerance | ±10% of Specified voltage | |
| Coil Power | 3 to 6.5W (pressure dependent) | |
| Electrical Connections | DIN 43650 Form A or Grommet | |
| Installation | No Orientation Requirement (Optimum Position: Flow Horizontal & Solenoid Vertical) | |
| Service | Air, Liquid, Vacuum | |
More Pneumatic Solenoid Valves for you to choose:
Brando offers multiple port and position configurations. Most air control valves are available with 220VAC, 110VAC, 24VDC or 12VDC solenoid coils. Select from 5/2 way, 5/2 way or 3/2 way.
Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4M220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10
2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15
3. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08
