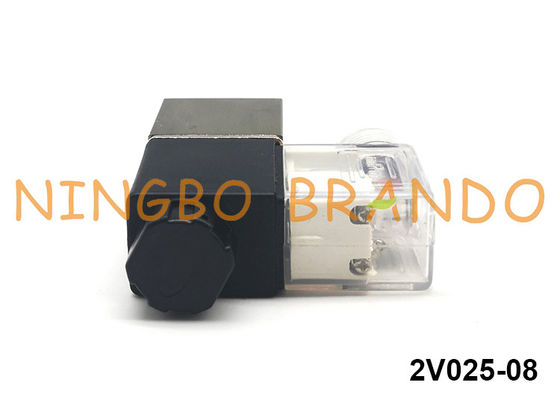

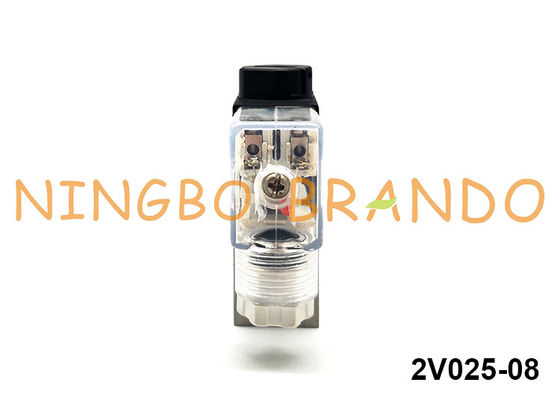

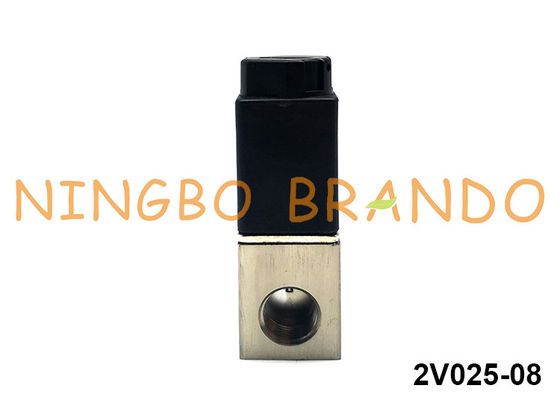

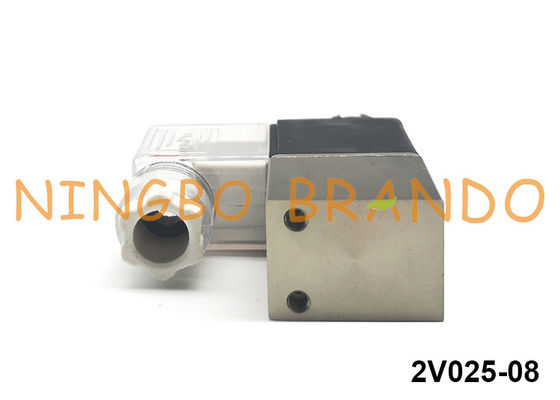

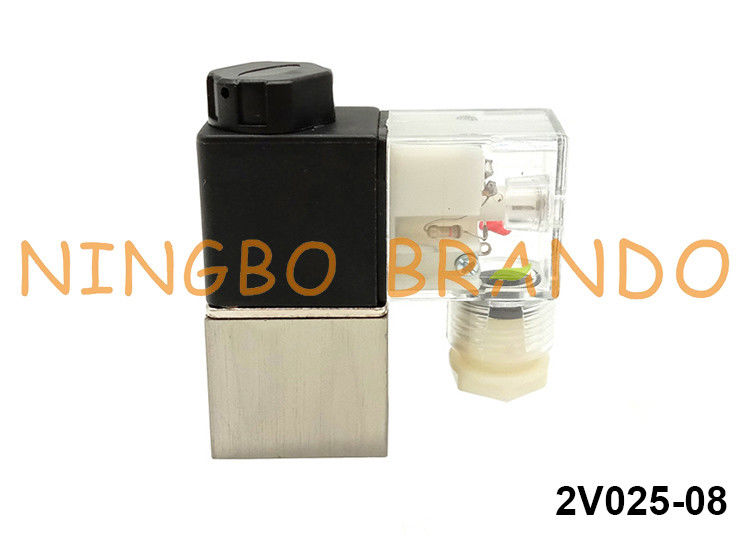

2V025-08 Airtac Type Pneumatic Solenoid Valve 1/4'' NPT 12VDC 24VDC

2V025-08 Airtac Type Pneumatic Solenoid Valve 1/4'' NPT 12VDC 24VDC

2V025-08 Airtac Type Pneumatic Solenoid Valve 1/4'' NPT 12VDC 24VDC
2V025-08 Airtac Type Pneumatic Solenoid Valve 1/4'' NPT 12VDC 24VDC

Product Details:

Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 2V025-08

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $1-$10 per set
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 100000 sets per month
Contact Now
Detailed Product Description
Product Name: Airtac Type Solenoid Valve Function: 2 Way, Normally Close
Port Size: 1/4'' Thread Type: G, NPT, PT, BSP
Voltages: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) Electrical Connector: DIN Connector, Wire Leads
High Light:

2/2 Way Pneumatic Solenoid Valve

,

Airtac Type Solenoid Valve 2V025-08

,

2V025-08-DC12V Solenoid Valve

2V025-08 Airtac Type Pneumatic Solenoid Valve 1/4'' NPT 12VDC 24VDC



Description of 2V025-08 Solenoid Valve:
1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
2.High quality sealing ring. High quality seals for durability and longer life
3.High frequency sub-head. Made of high-quality conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
4.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time
5.High quality electronic components. The copper coil can work hard for a long time, and the wiring operation is simple.
6.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.



Product Video of 2V025-08 Solenoid Valve:



Main dimension of 2V025-08 Pneumatic Solenoid Valve:

2V025-08 1/4'' 2 Way Airtac Type Solenoid Air Valve



Technical parameters of 2V Series Pneumatic Solenoid Valve:

Model No 2V025-06 2V025-08
Fluids Air. Water. Oil
Action Direct acting
Type Normally Closed (NC)
Orifice size(φmm) 2.5 2.5
Cv value 0.23 0.25
Port size 1/8" 1/4"
Viscosity limit Under 20Cst
Pressure range 0~1.0MPa (0~145psi)
Proof pressure 1.5MPa (215psi)
Material body Anodized Aluminum
Seal material NBR
Min. activating time sec 0.05 sec and below



More Pneumatic Solenoid Valves for you to choose:



Brando offers multiple port and position configurations. Most air control valves are available with 220VAC, 110VAC, 24VDC or 12VDC solenoid coils. Select from 5/2 way, 5/2 way or 3/2 way.



Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4M220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10


2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15


3. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08

4v1004v210-084v300a1

*4V100 Pneumatic Valves    *4V200 Pneumatic Valves       *4V300 Pneumatic Valves    *4V400 Pneumatic Valves

a1 a1 a3pneumatic fast fittings

*5/2 Way Pneumatic Valve *5/3 Way Pneumatic Valve     *2/2 Way Pneumatic Valve       *Pneumatic Fast Fitting
