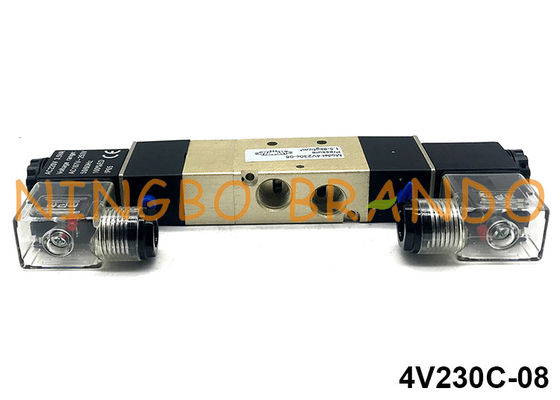

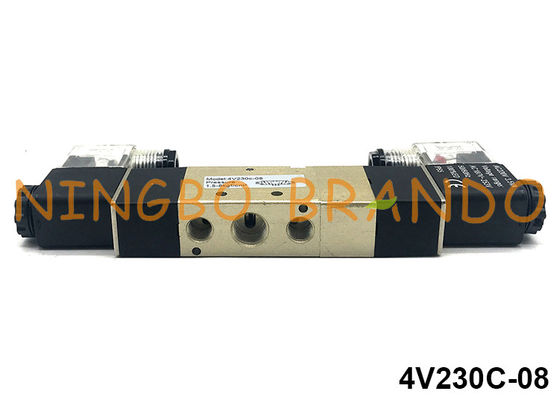

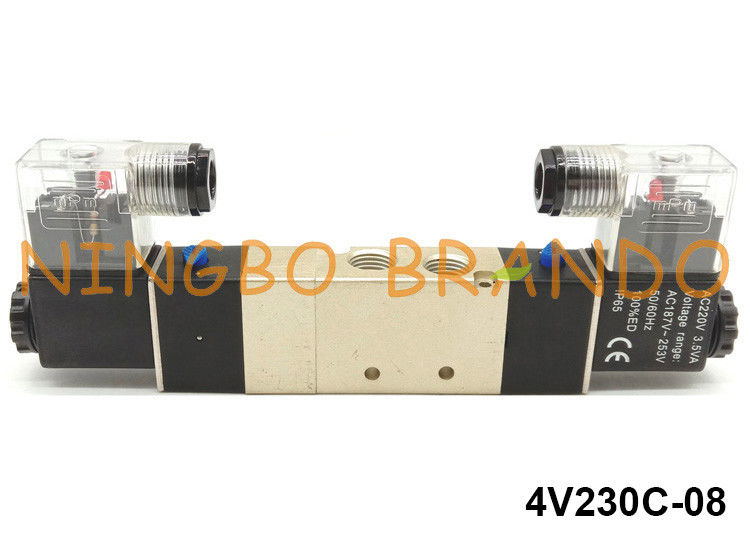

4V230C-08 Airtac Type Pneumatic Solenoid Valve 1/4'' 5 Way 3 Position 24V
This is 4V230C-08 AirTAC type pneumatic solenoid valve, 1/4'' inlet & outlet port size, 1/8'' exhaust port size, double solenoid, 5 way 3 position, 12VDC, 24VDC, 110VAC, 220VAC volatges for you to choose, other voltages can be customized. Brando is a Pneumatic Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).
Data of 4V Series Pneumatic Solenoid Valves:
Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'', Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-5~50
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec
Product Video of 4V230C-08 Pneumatic Solenoid Valve:
Main dimension of 4V230C-08 Pneumatic Solenoid Valve:
