| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V210-08 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $3 to $ 8 per pc |
| Packaging Details: | Individual box, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 200000 pcs per month |
| Product Name: | AirTAC Type Pneumatic Solenoid Valve | Port Size: | Inlet=Outlet=1/4'', Exhaust=1/8'' |
|---|---|---|---|
| Thread Type: | G, NPT, PT, BSP | Valve Type: | Single Solenoid, 5 Way 2 Position |
| Voltages: | 12VDC, 24VDC, 110VAC, 220VAC | Application: | Pneumatic Cylinder, Pneumatic Actuator |
| High Light: | Airtac Solenoid Valve,5/2 Way Pneumatic Solenoid Valve,5 Way 2 Position Pneumatic Solenoid Valve |
||

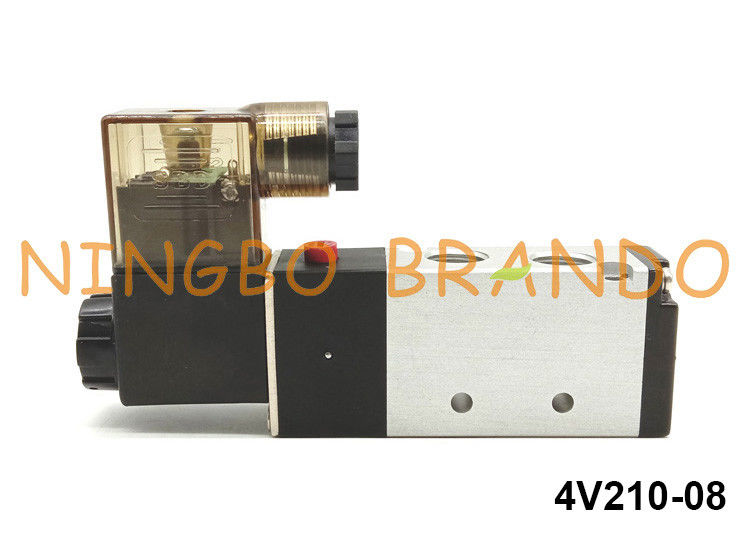

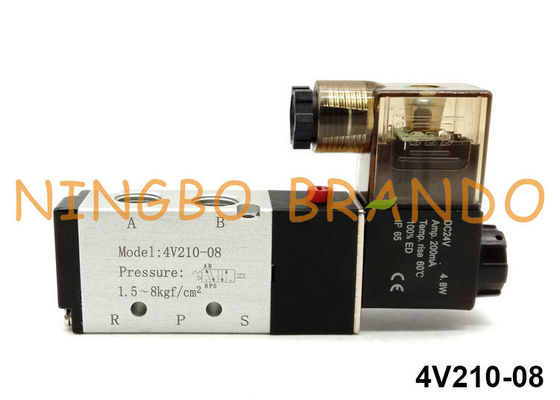

1/4" NPT 4V210-08 Pneumatic Solenoid Valve Airtac Type 5/2 Way 220V
This is 4V210-08 AirTAC type pneumatic solenoid valve, 1/4'' inlet & outlet port size, 1/8'' exhaust port size, single solenoid, 5 way 2 position, 12VDC, 24VDC, 110VAC, 220VAC volatges for you to choose, other voltages can be customized.
Product Video of 4V210-08 Pneumatic Solenoid Valve:
Main dimension of 4V210-08 Pneumatic Solenoid Valve:
Data of 4V Series Pneumatic Solenoid Valves:
Description of 4V Series Pneumatic Solenoid Valves:
1. Aluminum alloy body is strong. The valve body is made of new aluminum alloy material, which has strong pressure resistance, good corrosion resistance and fast heat dissipation;
2. High quality seal ring. High-quality seals for durability and longer life;
3. High-precision valve stem. Imported high-quality lubricant to ensure lubrication and reduce friction during exercise;
4. High frequency sub head. Made of high-quality conductor material, it has 6 times higher strength and high frequency response in 1 second for smoother operation;
5. The coil is easy to remove. Removable core nut, coil can be replaced at any time;
6. High-quality electronic components. The copper coil can work for a long time, and the wiring operation is simple. LED lights when power is on;
7. Pilot or diaphragm for controlling larger valves or small cylinders, or any pressure system that alternates pressurization and exhaust.
Note:
1.Manual button to test product status when power on;
2. When the valve is not energized, p on the product map points to A normally open, B points to S normally closed.
