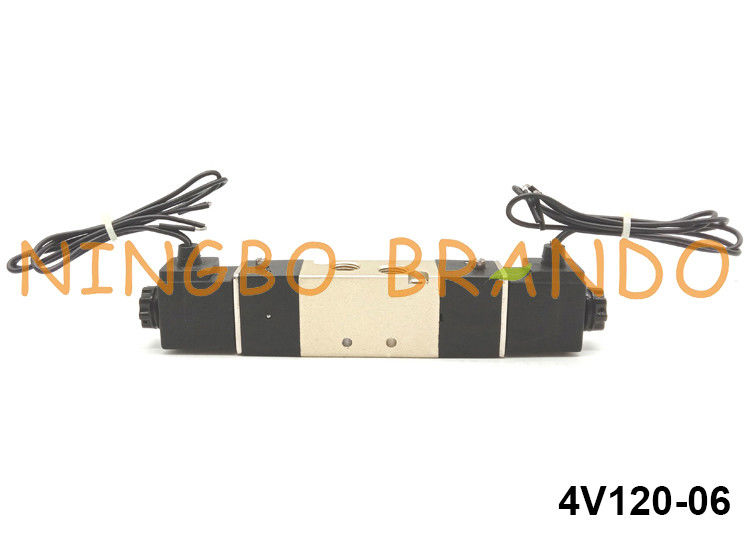

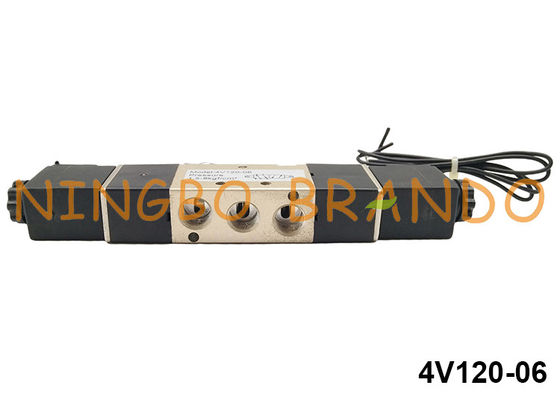

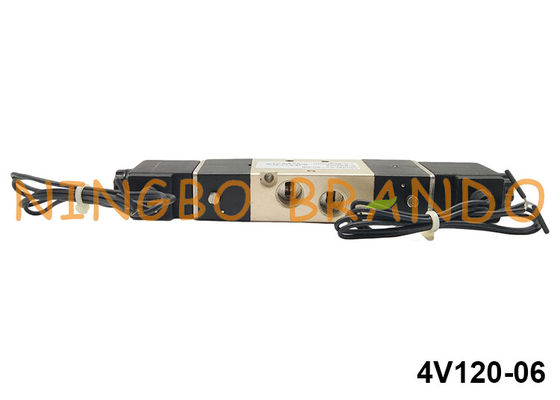

1/8'' 4V120-06 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position 24V

1/8'' 4V120-06 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position 24V

  • 1/8'' 4V120-06 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position 24V
  • 1/8'' 4V120-06 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position 24V
  • 1/8'' 4V120-06 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position 24V
1/8'' 4V120-06 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position 24V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V120-06
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiation
Packaging Details: Inner box, Carton, Pallet
Delivery Time: 15 working days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 200000 pcs per month
Contact Now
Detailed Product Description
Product Name: Airtac Type Pneumatic Solenoid Valve Position & Way: 5 Way 2 Position (5/2 Way)
Port Size: Inlet=Outlet=1/8'' Thread Type: G, NPT, PT, BSP
Valve Body Material: Aluminum Alloy Fluid: 40 Micron Filtered Air
Operating Pressure Range: 0.15 To 0.8MPa Operating Temperature: -5 To 50 ℃
Application: Pneumatic Cylinder, Pneumatic Actuator Voltages: 12V DC, 24V DC, 110V AC, 220V AC
High Light:

Airtac Solenoid Valve

,

5/2 Way Pneumatic Solenoid Valve

,

5 Way 2 Position Pneumatic Solenoid Valve

1/8'' 4V120-06 Airtac Type Pneumatic Solenoid Valve 5 Way 2 Position 24V



This is a 4V120-06 Airtac type pneumatic solenoid valve, 1/8'' inlet and out let size, (G, NPT, PT, BSP) female thread connection, 5 way 2 position, several standard voltage levels are optional (12V DC, 24V DC, 110V AC, 220V AC).



Brando is a Pneumatic Valve manufacturer and exporter in Ningbo, China, which has more than 10 years experience. The most common types are 2/2 way, 3/2 way, 5/2 way and 5/3 way. The valves can be single or double acting (one or two solenoids).


Brando Supply:
1. 5/2 Way Pneumatic Solenoid Valve: 4V110-06, 4V120-06, 4V210-06, 4M220-06, 4V210-08, 4V220-08, 4V310-08, 4V320-08, 4V310-10, 4V410-15, 4V420-15, 4M110-06, 4M120-06, 4M210-06, 4M220-06, 4M210-08, 4M220-08, 4M310-08, 4M320-08, 4M310-10, 4M320-10


2. 5/3 Way Pneumatic Solenoid Valve: 4V130C-06, 4V130E-06, 4V130P-06, 4V230C-06, 4V230E-06, 4V230P-06, 4V230C-08, 4V230E-08, 4V230P-08, 4V330C-08, 4V330E-08, 4V330P-08, 4V330C-10, 4V330E-10, 4V330P-10, 4V430C-15, 4V430E-15, 4V430P-15


3. 2/2 Way Pneumatic Solenoid Valve: 2V025-06, 2V025-08



Main Dimension of 4V120-06 Pneumatic Solenoid Valve:

4V120-06

Product Video of 4V120-06 Pneumatic Solenoid Valve:



Technical data of 4V Series Pneumatic Solenoid Valves:

Model
4V110-06
4V120-06
4V130C-06
4V130E-06
4V130P-06
4V110-08
4V120-08
4V130C-08
4V130E-08
4V130P-08
Fluid
40 Micron Filtered Air
Operation
Internal pilot or external pilot
Ports Size
In=Out=1/8''
In=Out=1/4''
Orifice Size
5.5 mm² (Cv=0.31)
5.0 mm² (Cv=0.28)
12.00 mm² (Cv=0.67)
9.00 mm² (Cv=0.50)
Valve Type
5 Way 2 Position
5 Way 3 Position
5 Port 2 Position
5 Way 3 Position
Operating Pressure
0.15 to 0.8MPa (21 to 114psi)
Proof Pressure
1.5MPa (215psi)
Operating Temperature
-5 to 50
Body Material
Aluminum Alloy
Max. Frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec



Features:
1. Pilot mode: internal pilot or external pilot.
2. Sliding column structure: good sealing and sensitive response.
3. The three-position solenoid valve has three central functions for you to choose from.
4. The dual-control solenoid valve has a memory function.
5. The inner hole adopts special processing technology, which has low friction and wear, low starting pressure and long service life.
6. It can form an integrated valve group with the base to save installation space.
7. Equipped with attached manual equipment to facilitate installation and commissioning.



Brando Factory Production of Pneumatic Solenoid Valves:



More Pneumatic Solenoid Valves for you to choose:

4v1004v210-084v300a1

*4V100 Pneumatic Valves     *4V200 Pneumatic Valves      *4V300 Pneumatic Valves     *4V400 Pneumatic Valves

a1 a1 a3pneumatic fast fittings

*5/2 Way Pneumatic Valve  *5/3 Way Pneumatic Valve       *2/2 Way Pneumatic Valve    *Pneumatic Fast Fitting
