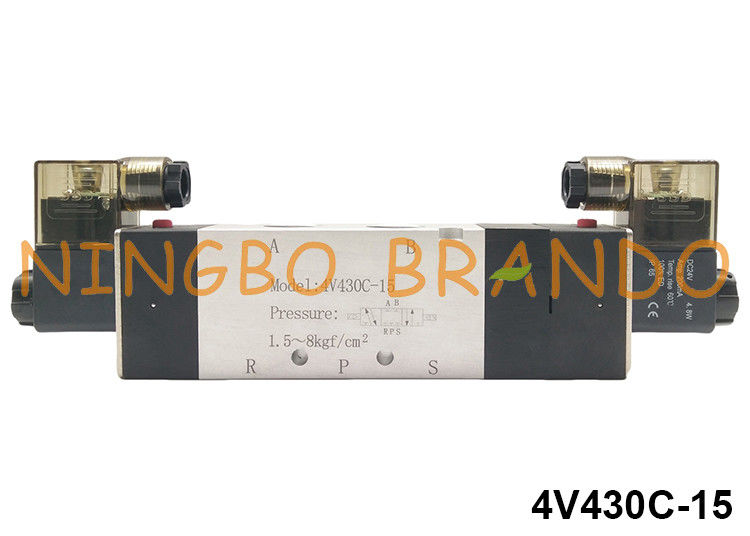

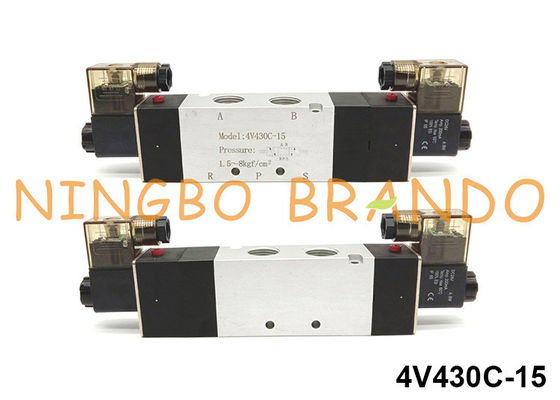

AirTAC Type 5 Position 3 Way 1/2'' PT NPT BSPT 4V430C-15 Directional Control Pneumatic Solenoid Valve

AirTAC Type 5 Position 3 Way 1/2'' PT NPT BSPT 4V430C-15 Directional Control Pneumatic Solenoid Valve

Pneumatic solenoid valves usually have a slide valve design. They consist of an aluminum body with cylindrical holes. The different ports of the valve are connected to the cylinder. The spool valve in the cylinder has multiple seals along its length. By sliding the spool back and forth, you can connect or close different ports. For spool designs, it is very difficult to achieve a leak-free seal. Therefore, the internal leakage of the pneumatic solenoid valve is always small (but acceptable). With these types of valves, air can flow through the valve in both directions. This is called bidirectional.

4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;

Dimension of 4V430C-15 Pneumatic Solenoid Valve:

Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:

Details:

Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
