| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 4V320-10 |
| Minimum Order Quantity: | 100 PCS |
|---|---|
| Packaging Details: | Individual Boxes, Carton, Pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Applicable Industrie: | Automation | Fluid: | Air (to Be Filtered By 40 μm Filter Element) |
|---|---|---|---|
| Port Size: | In=Out=3/8'' | Valve Type: | Double Solenoid 5 Port 2 Position |
| Voltage: | 220VAC, 110VAC, 24VDC, 12VDC | Connector: | DIN Electrical |
| Operating Pressure: | 0.15 To 0.8MPa(21-114psi) | Temperature: | -20 To +70℃ |
| Max. Frequency: | 4 Cycle/sec | Body Material: | Aluminum Alloy |
| Action: | Internal Pilot | ||
| High Light: | Airtac Solenoid Valve,5/2 Way Pneumatic Solenoid Valve,5 Way 2 Position Pneumatic Solenoid Valve |
||

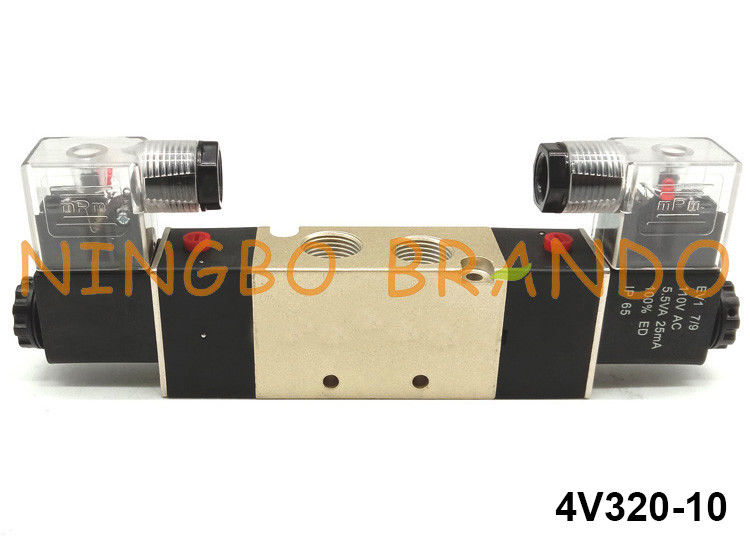

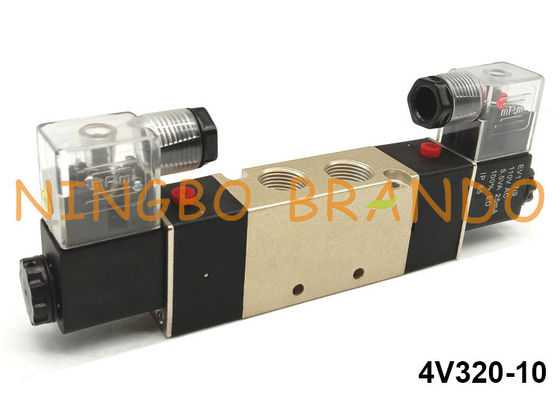

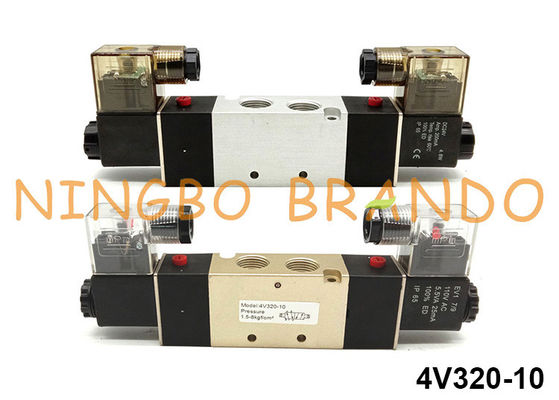

3/8'' NPT 4V320-10 5/2 Way Directional Control Valve Pneumatic Double Solenoid AC110V AC220V
4V320-10 pneumatic air control solenoid valve inlet=outlet=3/8'', exhaust port =1/4''.Widely used in automation machine In various industries, such as Medical, food, chemical.
When the electrical part is charged, the electromagnetic coil generates electromagnetic force to lift the closing member from the sealed air hole, compressed air enters the pilot valve, and the pilot valve works; when the power is turned off, the electromagnetic force disappears and the valve action is reversed.
4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;
Dimension of 4V320-10 Pneumatic Solenoid Valve:
Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:
Details:
Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
