5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08

5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08

  • 5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08
  • 5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08
  • 5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08
  • 5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08
  • 5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08
5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V230C-08
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Applicable Industrie: Automation Fluid: Air (to Be Filtered By 40 μm Filter Element)
Port Size: In=Out=1/4'' Valve Type: Double Solenoid 5 Port 3 Position
Voltage: 220VAC, 110VAC, 24VDC, 12VDC Connector: DIN Electrical
Operating Pressure: 0.15 To 0.8MPa(21-114psi) Temperature: -20 To +70℃
Max. Frequency: 3 Cycle/sec Body Material: Aluminum Alloy
Action: Internal Pilot
High Light:

Airtac Solenoid Valve

,

5/3 Way Pneumatic Solenoid Valve

,

5 Way 3 Position Pneumatic Solenoid Valve

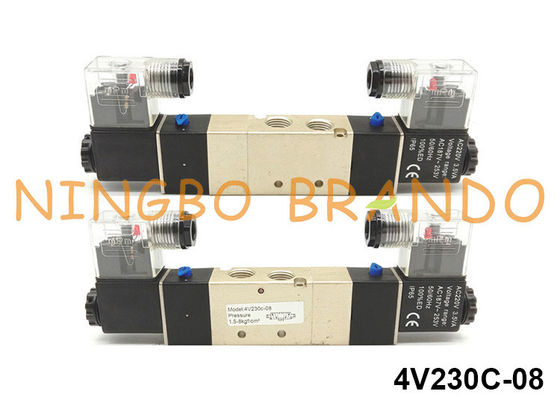

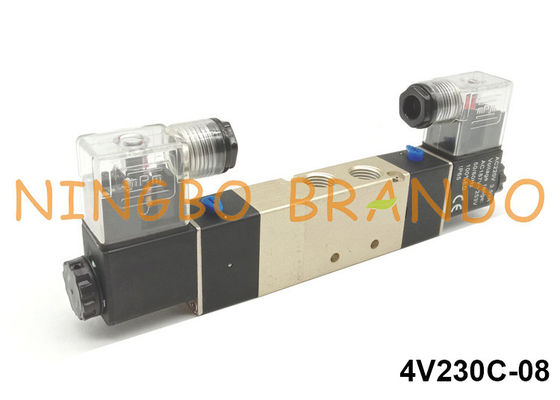

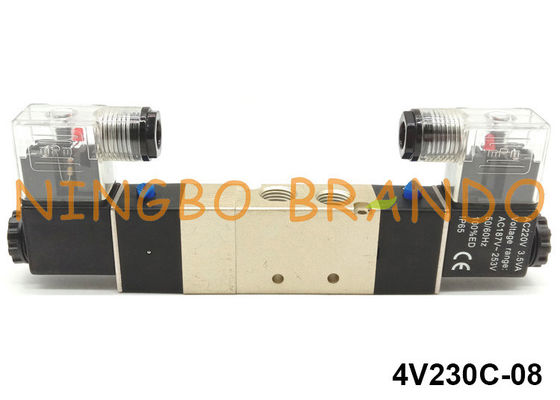

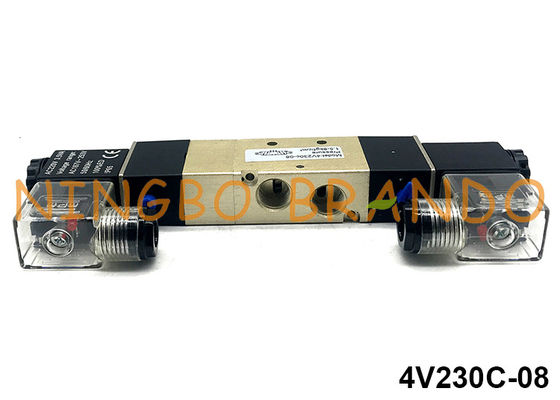

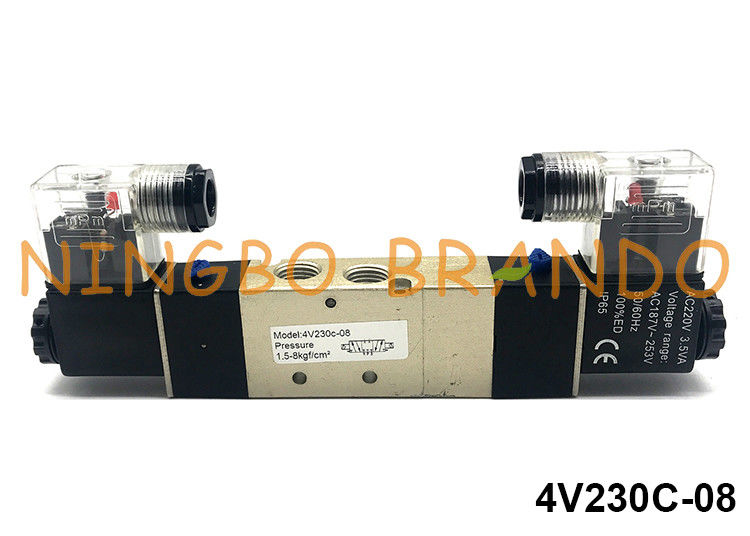

5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08



5/3 way pneumatic air control valve ,The first number in a valve designation will identify the number of working ports that the valve has. The 5/3 valve body ports are; one supply, two air cylinder and two exhaust ports, totally 5 ports.It is an automatic basic element to control the fluid. It belongs to the actuator, but not limits to the hydraulic pressure and pneumatic control. In the industrial control system, the solenoid valve is used to regulate the direction, flow rate, speed and other parameters of the medium. The solenoid valve can coordinate with different circuits to realize the anticipated control, with both control precision and flexibility being guaranteed.



4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;



Dimension of 4V230C-08 Pneumatic Solenoid Valve:

Dimension of 4V120-06 Pneumatic Solenoid Valve:



Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:



Model
4V210-06
4V220-06
4V230C-06
4V230E-06
4V230P-06
4V210-08
4V220-08
4V230C-08
4V230E-08
4V230P-08
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=Exhaust=1/8''
In=Out=1/4'' Exhaust=1/8''
Orifice Size
25.00 mm2 (Cv=0.78)
18.00 mm2 (Cv=0.67)
30.00 mm2 (Cv=0.89)
18.00 mm2 (Cv=0.67)
Valve Type
5 port 2 position
5 port 3 position
5 port 2 position
5 port 3 position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-20~70
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec





Details:

5 Way 3 Position 1/4'' AirTAC Type Solenoid Valve for Pneumatic Actuator 4V230C-08



Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
