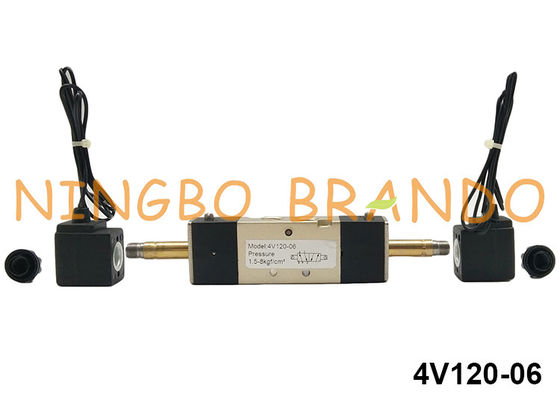

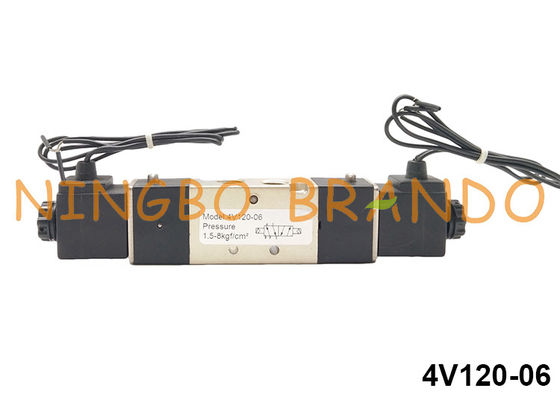

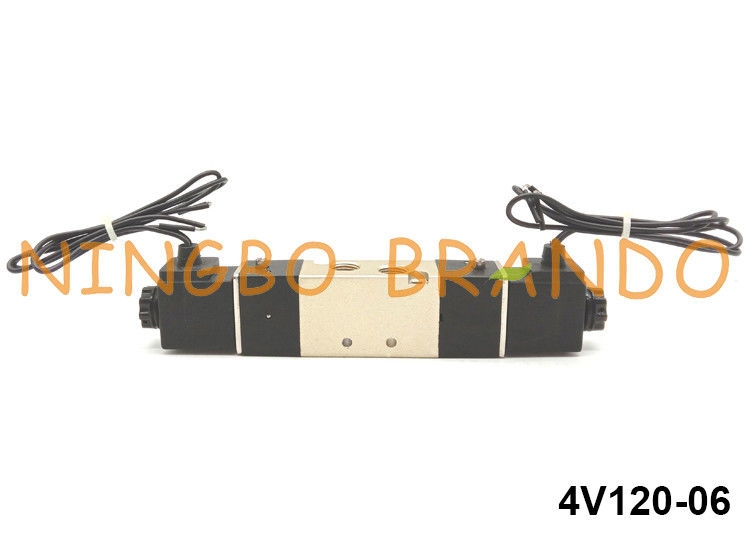

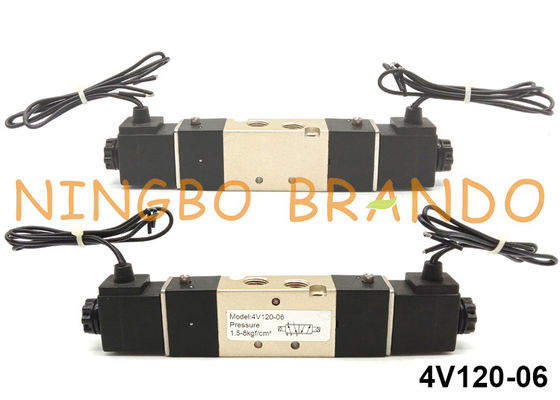

AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads

AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads

  • AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads
  • AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads
  • AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads
  • AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads
AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 4V120-06
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiation
Packaging Details: Individual Boxes, Carton, Pallet
Delivery Time: 15 working days
Payment Terms: T/T, PayPal, Western Union
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Applicable Industrie: Automation Fluid: Air (to Be Filtered By 40 μm Filter Element)
Port Size: In=Out=1/8'' Valve Type: Double Solenoid 5 Port 2 Position
Voltage: 220VAC, 110VAC, 24VDC, 12VDC Connector: Flying Leads
Operating Pressure: 0.15 To 0.8MPa(21-114psi) Temperature: -20 To +70℃
Max. Frequency: 5 Cycle/sec Body Material: Aluminum Alloy
Action: Internal Pilot
High Light:

Airtac Solenoid Valve

,

5/2 Way Pneumatic Solenoid Valve

,

5 Way 2 Position Pneumatic Solenoid Valve

AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads





Two-position three-way solenoid valves are usually used with single-acting pneumatic actuators. Two positions are controllable at two positions: on-off, three-way ventilation is provided by three channels. In general, one channel is connected to the air source, and the other two are connected. One channel is connected to the air inlet of the actuator, and one is connected to the exhaust port of the actuator. The specific working principle can refer to the working principle diagram of the single-acting pneumatic actuator.



4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;



Dimension of 4V120-06 Pneumatic Solenoid Valve:

Dimension of 4V120-06 Pneumatic Solenoid Valve:



Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:

Model
4V110-06
4V120-06
4V130C-06
4V130E-06
4V130P-06
4V110-08
4V120-08
4V130C-08
4V130E-08
4V130P-08
Fluid
Air(to be filtered by 40 μ m filter element)
Acting
Internal pilot or external pilot
Port Size
In=Out=1/8''
In=Out=1/4''
Orifice Size
5.5 mm² (Cv=0.31)
5.0 mm² (Cv=0.28)
12.00 mm² (Cv=0.67)
9.00 mm² (Cv=0.50)
Valve Type
5 Port 2 Position
5 Port 3 Position
5 Port 2 Position
5 Port 3 Position
Operating Pressure
0.15~0.8MPa (21~114psi)
Proof Pressure
1.5MPa (215psi)
Temperature ℃
-5~50
Material of Body
Aluminum alloy
Max. frequency
5 cycle/sec
3 cycle/sec
5 cycle/sec
3 cycle/sec




Details:

AirTAC Type 5/2 Way 1/8'' Double Coil Pneumatic Solenoid Valve 24VDC 220VAC 4V120-06 With Flying Leads



Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.



Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing


Welcome to your any question and inquiry!
