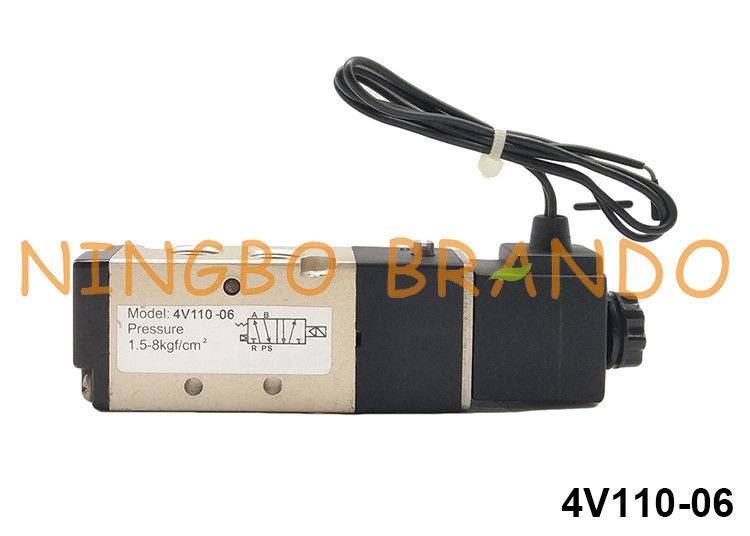

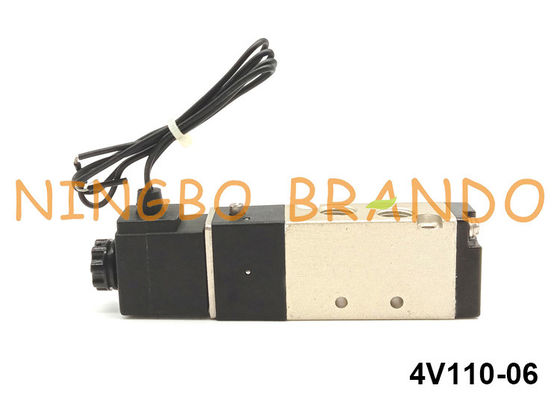

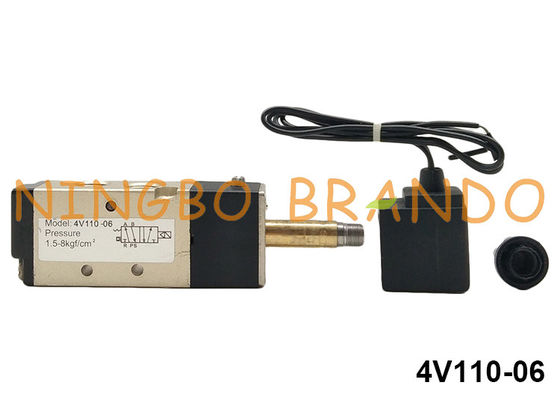

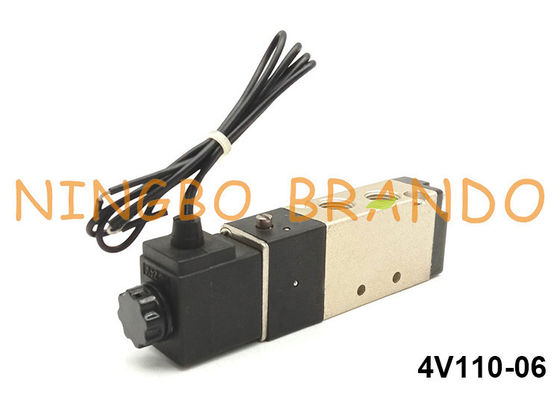

AirTAC Type 5/2 Way 1/8'' Single Solenoid Pneumatic Valve 24VDC 220VAC 4V110-06

AirTAC Type 5/2 Way 1/8'' Single Solenoid Pneumatic Valve 24VDC 220VAC 4V110-06

This solenoid air valve is a functional replacement for the Airtac 4V100 series & SMC VFS1000 series. 4V110-06 has 1/8″ Inlet, Outlet and Exhaust Port. Five Way Two Positions (5/2 way) Solenoid Valve, Normally Closed with Spring Return. Options such as lead wire connection, sub-plate mounting, metric port etc, are all available.

4V Series Solenoid Valve Features:
1. Pilot-oriented mode: optional for internal or external;
2. Structure in sliding column mode: good tightness and sensitive reaction;
3. Internal hole adopts special processing technology which has little attrition friction, low start pressure and long service life;
4. It is available to form integrated valve group with the base to save installation space;
5. Affiliated manual devices are equipped to facilitate installation and debugging;
6. Several standard voltage grades are optional;

Dimension of 4V110-06 Pneumatic Solenoid Valve:

Specifications of 4V Series Internal Pilot Operated Pneumatic Valve:

Details:

Installation Instructions:
1. Before installing, be sure the valve hasn’t been damaged via transportation.
2. It’s suggested to use the medium lubricated by 40μm filter element. Be aware of the flow direction and port size.
3. Please notice whether the installation condition accords with technical requirements (such as “voltage”, “actuation frequency”, “working pressure” and “scope of application temperature”), then the equipment can be installed and used.
4. Notice the flow direction of air during installation, P is the air intake, A (B) is the work port and R (S) is the exhaust outlet.
5. Take measure to avoid vibration and frozen.
6. Before using the fittings and tubes make sure they are clean. When connecting to fittings, be sure the PTFE Thread Seal Tape is used correctly.
7. To keep the dust away, please use the silencer for the exhaust ports. Never forget to install dirt-proof boot in air intake and outlet during dismounting.
8. After installing, please use the manual override to test valve first.
