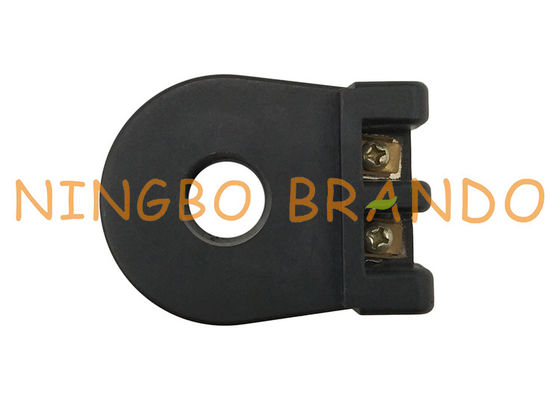

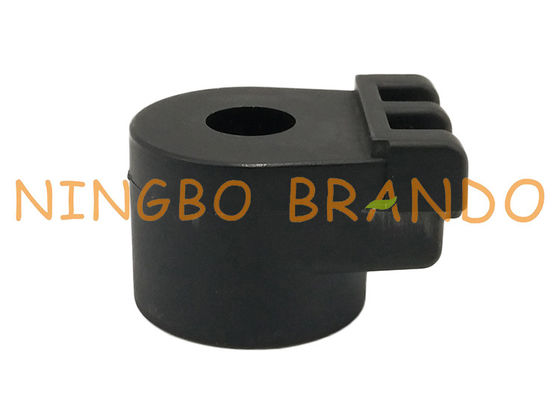

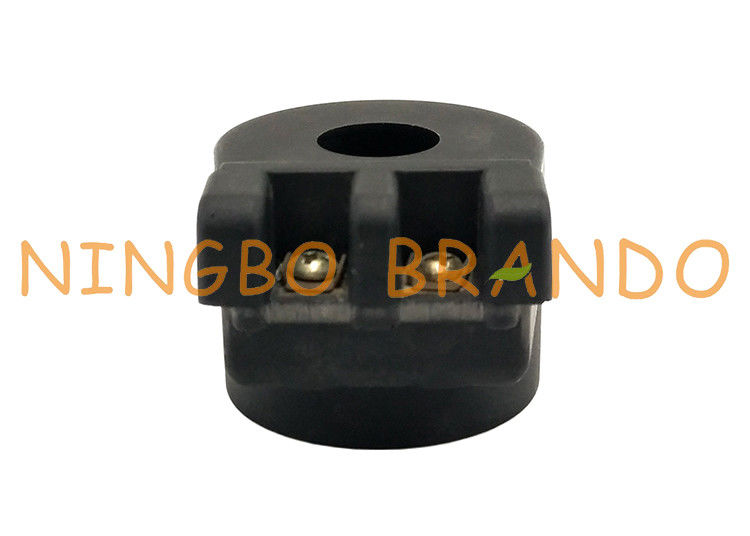

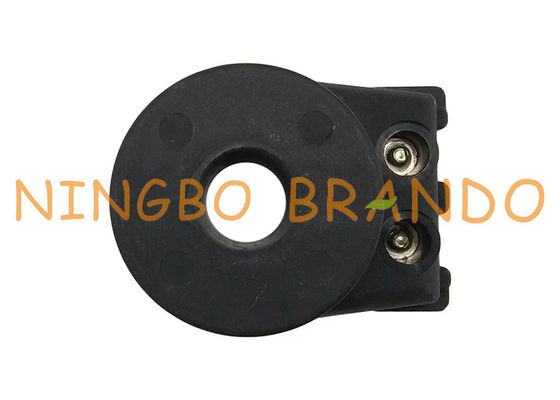

Magnetic Coil 400505-110 220VAC 50Hz FT 400505-111 240VAC 400525-210 106-002-20 220VAC 2218-410-3 120VAC

Magnetic Coil 400505-110 220VAC 50Hz FT 400505-111 240VAC 400525-210 106-002-20 220VAC 2218-410-3 120VAC

Short Description:

solenoid valve coil, magnetic valve coil, solenoid valve importance parts, pilot of solenoid valve

1, Solenoid Coil, Electromagnetic Valve Coil
2, Hole Diameter (aperture) 14.8 mm

3, Height Diameter 31.8mm
3, Normally Used on Solenoid Valve of pneumatic solenoid valve
4, Connection : PINS

Detailed Specifications:

Item No.: BB14831819

Normal Voltage: DC12V 24V AC110V 220V; Other voltage can be customized

Normal Power: DC20W AC28VA; Other power can be customized

Insulation Class: F H

Connection Type: touching pins

Installation Dimension: Ø14.8XH31.8

Application Example: Pneumatic solenoid valve, Timer Automatic Drain Water Valve, Water Valve series, Ink Dispenser Solenoid Valve Coil

What problems occur when the solenoid valve coil is in use?

Everyone knows that solenoid valves play an important role in industrial applications, and they have a long running time, and sometimes there are some problems that make the equipment not function properly. Most of this problem is caused by improper use of the solenoid valve coil.

The solenoid valve coil may not be very secure at the time of installation. During the operation of the device, the coil is in a strong operation, so that the coil will fall, the solenoid valve will not operate normally, or some may fall, and some may not. It may cause the device to work for a while and not work properly, both of which will delay the work. At this time, the operation is relatively simple, and the coil can be firmly fixed on the solenoid valve. There is also a case where the solenoid valve coil may be burnt out due to excessive voltage, and the device may not operate normally.

Therefore, when using the solenoid valve later, be sure to check the position of the solenoid valve coil and do the correct operation of the solenoid valve coil. This will ensure that the solenoid valve will not cause problems.

Dimension of BB14831819 Solenoid Valve Coil :

Technical Data:

Attention:​
1. This air suspension compressor pump solenoid coil is made of high quality components.

2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.

Steps and methods for properly installing a solenoid valve coil:

1. Check if the solenoid valve and the selected parameters are the same, such as differential pressure, etc. If the error occurs, the solenoid valve coil will be burned out. Voltage fluctuations should be within the normal range and meet the rated voltage.

2. Before connecting the pipeline, flush the pipeline and remove the residual dirt in the pipeline. If there are residual stains, it will affect the normal use of the solenoid valve. To prevent this, a filter should be installed in the pipeline.

3. Install the solenoid valve coil of the solenoid valve vertically on the horizontal and ground pipes. If there is a special situation, it cannot be installed vertically. The appropriate solenoid valve should be ordered in advance, otherwise the solenoid valve will not work properly.

4. When installing, add a safety process and install a manual cutting valve to facilitate maintenance in case of failure.

5. Pay attention to the direction when installing, can not be reversed, installed in the direction indicated on the package, and can be reversed in some special cases such as vacuum.

6. If the water may be damaged by the medium, you must take appropriate protective measures or choose a solenoid valve with a waterproof hammer function.

7. The solenoid valve cannot be energized all the time, otherwise it will reduce its life. Note that normally open, normally closed solenoid valves cannot be used with care.

Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
