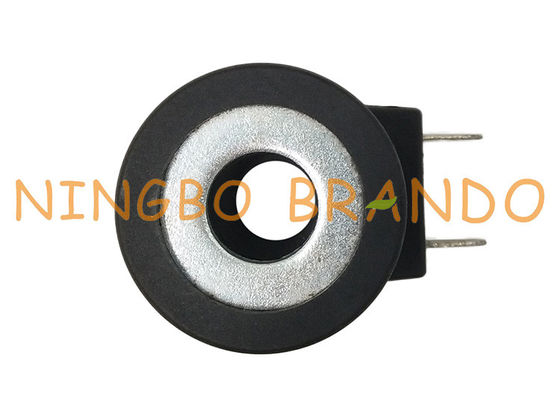

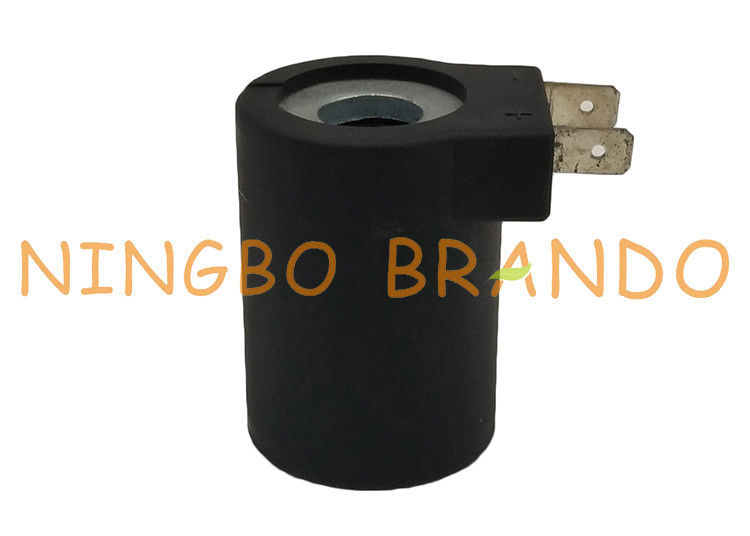

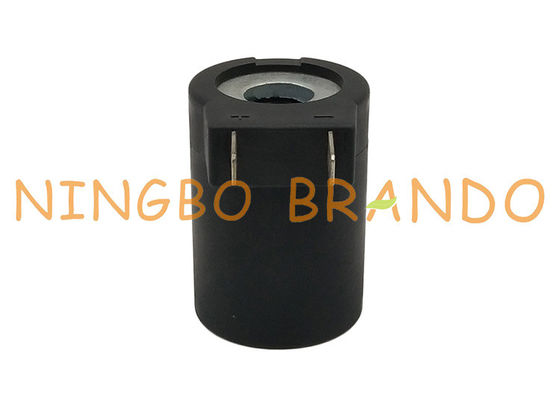

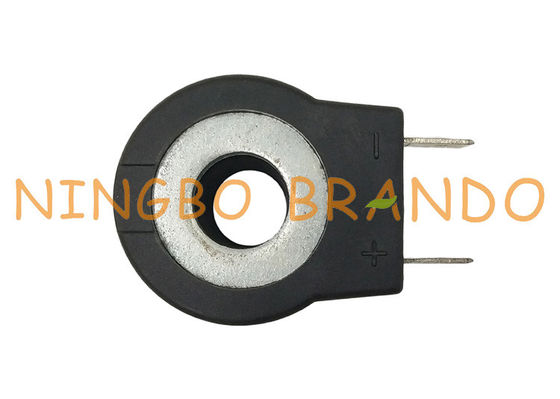

01RD00403002 Verdampfer Converter Super Eco AT90E FOX Techno Reducer Regulator Solenoid Coil For LPG CNG Conversion Kits

01RD00403002 Verdampfer Converter Super Eco AT90E FOX Techno Reducer Regulator Solenoid Coil For LPG CNG Conversion Kits​​

This AT90E Reducer Solenoid Coil is made of thermoplastic composite or flame retardant high temperature resistant resin nylon, which is resistant to high temperature and moisture. Applicable examples: BRC Tecno type pressure reducer (CNG/LPG dual fuel vehicle); Conventional voltage: DC12V (other special voltage can be customized); Conventional power: 22W (other special power can be customized). The pressure reducing valve electronically controlled pressure reducing system reduces the pressure of natural gas and provides normal gas flow when the engine needs it. The system includes three natural gas decompression chambers, which can be kept stable regardless of the pressure, and the pressure reducing valve is absorbed during the decompression process. The engine circulates the heat of the water to prevent the natural gas from freezing during the decompression process. The positive pressure supply through the secondary decompression chamber of the pressure reducing valve and the branching gas path with the gas path can ensure the engine idling. The valve is also equipped with a safety electronic starter. When the engine is closed, the safety device automatically trips to close the solenoid valve on the air line.

What problems occur when the solenoid valve coil is in use?

Everyone knows that solenoid valves play an important role in industrial applications, and they have a long running time, and sometimes there are some problems that make the equipment not function properly. Most of this problem is caused by improper use of the solenoid valve coil.

The solenoid valve coil may not be very secure at the time of installation. During the operation of the device, the coil is in a strong operation, so that the coil will fall, the solenoid valve will not operate normally, or some may fall, and some may not. It may cause the device to work for a while and not work properly, both of which will delay the work. At this time, the operation is relatively simple, and the coil can be firmly fixed on the solenoid valve. There is also a case where the solenoid valve coil may be burnt out due to excessive voltage, and the device may not operate normally.

Therefore, when using the solenoid valve later, be sure to check the position of the solenoid valve coil and do the correct operation of the solenoid valve coil. This will ensure that the solenoid valve will not cause problems.

Dimension of BB14151313 Solenoid Valve Coil :

Technical Data:

Solenoid Coil Production Line:

Attention:​
1. This air suspension compressor pump solenoid coil is made of high quality components.

2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.

Steps and methods for properly installing a solenoid valve coil:

1. Check if the solenoid valve and the selected parameters are the same, such as differential pressure, etc. If the error occurs, the solenoid valve coil will be burned out. Voltage fluctuations should be within the normal range and meet the rated voltage.

2. Before connecting the pipeline, flush the pipeline and remove the residual dirt in the pipeline. If there are residual stains, it will affect the normal use of the solenoid valve. To prevent this, a filter should be installed in the pipeline.

3. Install the solenoid valve coil of the solenoid valve vertically on the horizontal and ground pipes. If there is a special situation, it cannot be installed vertically. The appropriate solenoid valve should be ordered in advance, otherwise the solenoid valve will not work properly.

4. When installing, add a safety process and install a manual cutting valve to facilitate maintenance in case of failure.

5. Pay attention to the direction when installing, can not be reversed, installed in the direction indicated on the package, and can be reversed in some special cases such as vacuum.

6. If the water may be damaged by the medium, you must take appropriate protective measures or choose a solenoid valve with a waterproof hammer function.

7. The solenoid valve cannot be energized all the time, otherwise it will reduce its life. Note that normally open, normally closed solenoid valves cannot be used with care.

Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
