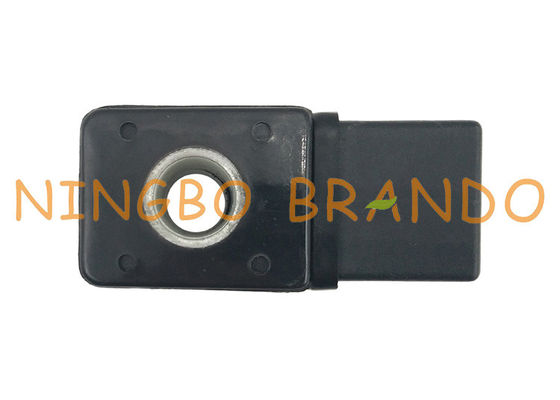

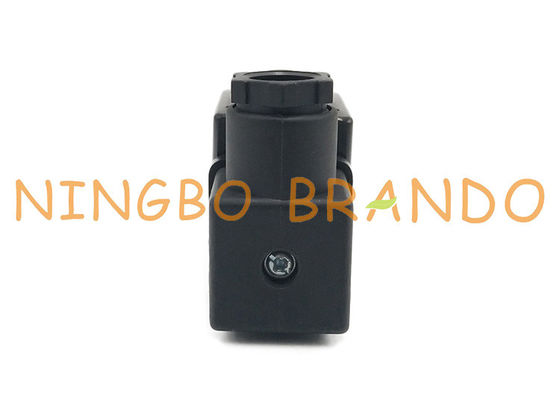

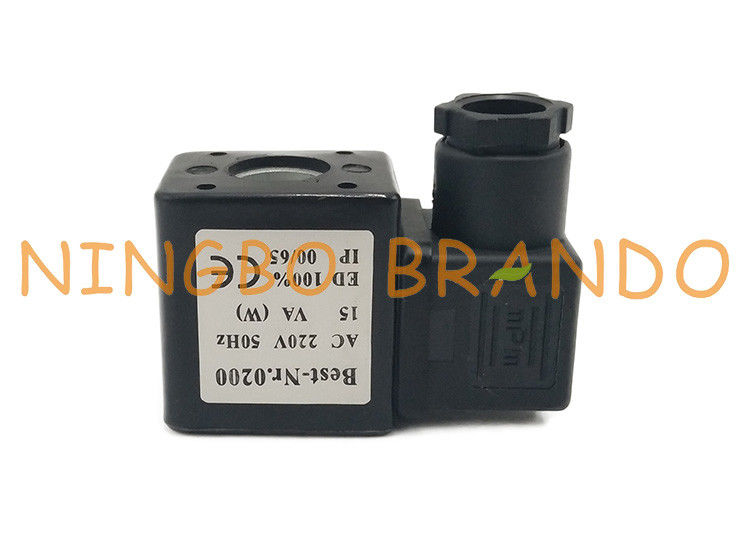

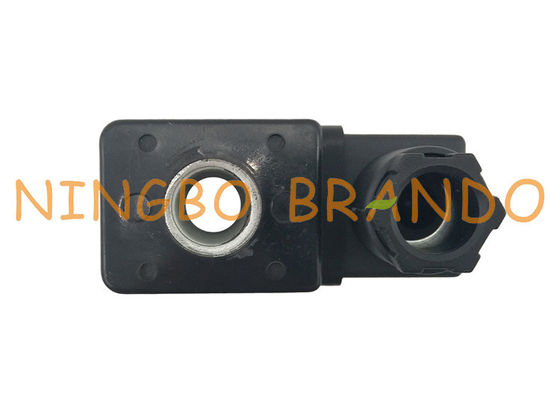

Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve

Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve

  • Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve
  • Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve
  • Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve
  • Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve
Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB13241002
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Hole Size: 13.2mm Height: 41.0mm
Width: 29.5mm Voltage: DC24V, AC220V
Power: 18VA, 15Watt Connector: DIN43650A
Insulation Class: F, H Enameled Wire Material: Copper
Application: Solenoid Valve, Pulse Valve, Diaphragm Valve
High Light:

Pulse Valve Solenoid Coil

,

Solenoid Coil For Pulse Valve

,

Pulse Valve Coil

Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve



The shown Best-Nr.0200 solenoid coil is widely mounted on all kinds of solenoid valves, which is offered with MPM DIN 43650A connector. We supply AC24V, AC110V, AC220V, DC24V wide voltages. The solenoid coil is integral in the operation of a solenoid valve. It is what converts the electric current into a magnetic field which in turn allows the operation of the solenoid valve. This moves a ferromagnetic plunger inside the valve which opens or closes the valve. When a coil (solenoid) is defective, it can be difficult to find a replacement for the original. A universal replacement coil can be a solution.



What problems occur when the solenoid valve coil is in use?

Everyone knows that solenoid valves play an important role in industrial applications, and they have a long running time, and sometimes there are some problems that make the equipment not function properly. Most of this problem is caused by improper use of the solenoid valve coil.

The solenoid valve coil may not be very secure at the time of installation. During the operation of the device, the coil is in a strong operation, so that the coil will fall, the solenoid valve will not operate normally, or some may fall, and some may not. It may cause the device to work for a while and not work properly, both of which will delay the work. At this time, the operation is relatively simple, and the coil can be firmly fixed on the solenoid valve. There is also a case where the solenoid valve coil may be burnt out due to excessive voltage, and the device may not operate normally.

Therefore, when using the solenoid valve later, be sure to check the position of the solenoid valve coil and do the correct operation of the solenoid valve coil. This will ensure that the solenoid valve will not cause problems.



Dimension of BB13241002 Solenoid Valve Coil :

Dimension of BB13237513 Solenoid Valve Coil :

Technical Data:

Model
BB13241002
Name
Best.Nr.0200
Hole size
13.2mm
Height
41mm
Width
29.5mm
Voltages
AC220V, DC24V
Power
18VA, 15Watt
Insulation class
F, H
Connector
DIN43650A
Application examples
Solenoid Valve, Pulse Valve, Diaphragm Valve


Solenoid Coil Production Line:

Best.Nr.0200 Solenoid Coil For 2636000 2637050 8020865 Solenoid Valve 1



Attention:
1. This air suspension compressor pump solenoid coil is made of high quality components.

2. Replaces the original air compressor solenoid coil of your car and equal the original quality.
3. Please double confirm the compatibility as well as the OEM number before purchasing.
4. Instruction is not included. Professional installation is recommended.



Steps and methods for properly installing a solenoid valve coil:

1. Check if the solenoid valve and the selected parameters are the same, such as differential pressure, etc. If the error occurs, the solenoid valve coil will be burned out. Voltage fluctuations should be within the normal range and meet the rated voltage.

2. Before connecting the pipeline, flush the pipeline and remove the residual dirt in the pipeline. If there are residual stains, it will affect the normal use of the solenoid valve. To prevent this, a filter should be installed in the pipeline.

3. Install the solenoid valve coil of the solenoid valve vertically on the horizontal and ground pipes. If there is a special situation, it cannot be installed vertically. The appropriate solenoid valve should be ordered in advance, otherwise the solenoid valve will not work properly.

4. When installing, add a safety process and install a manual cutting valve to facilitate maintenance in case of failure.

5. Pay attention to the direction when installing, can not be reversed, installed in the direction indicated on the package, and can be reversed in some special cases such as vacuum.

6. If the water may be damaged by the medium, you must take appropriate protective measures or choose a solenoid valve with a waterproof hammer function.

7. The solenoid valve cannot be energized all the time, otherwise it will reduce its life. Note that normally open, normally closed solenoid valves cannot be used with care.



Product Features:
1. Using high quality wire which has UL approved; 2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
