EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC

EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC

  • EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC
  • EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC
  • EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC
  • EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC
EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB13040006
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 set per month
Contact Now
Detailed Product Description
Product Name: EVI 5M/13 Solenoid Valve Coil Connection Type: DIN43650A
Insulation Class: H Voltage: 220VAC, 110VAC, 24VAC, 24VDC, 12VDC
Power: 13VA, 10W Inner Hole Diameter: 13mm
Height: 40mm Width: 29.5mm
High Light:

Solenoid Coils

,

Solenoid Valve Coils

,

Coils For Solenoid Valves

EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC

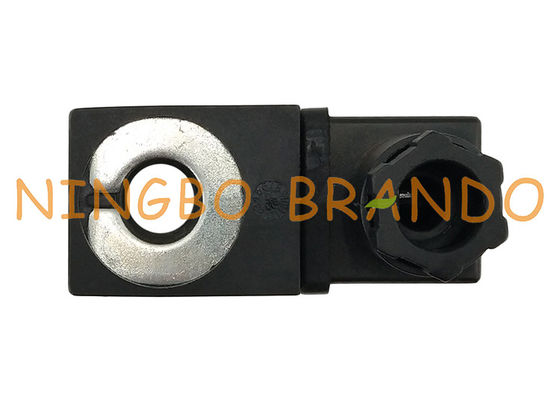

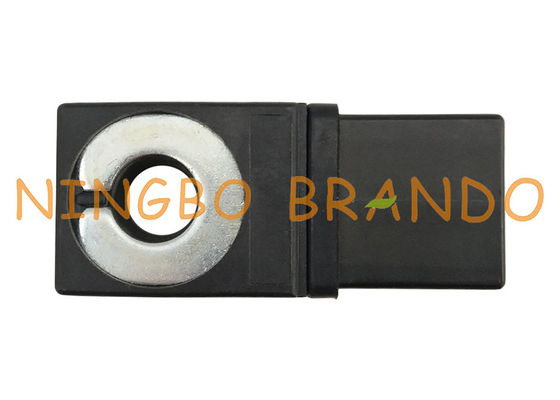

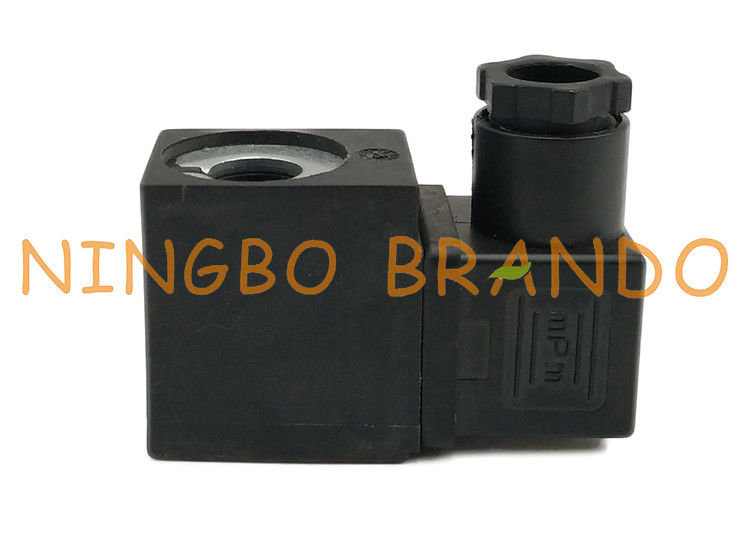

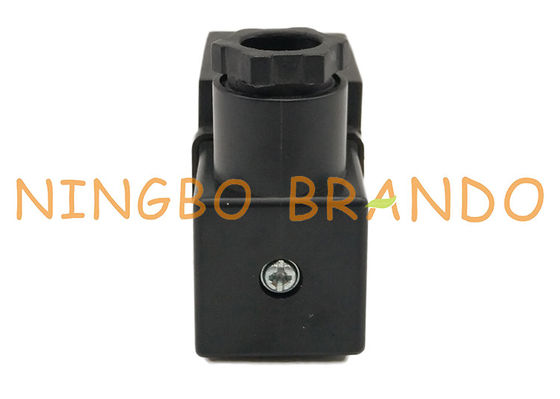

This is a EVI 5M/13 AMISCO type solenoid valve coil, coil inner hole diameter is 13mm, coil height is 40mm, coil width is 29.5mm, coil insulation class is H, coil connection type is DIN43650A, supply 220VAC, 110VAC, 24VAC, 24VDC, 12VDC voltages, supply 13VA, 10W power, other voltages and power can be customized.



Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.



Technical data of EVI 5M/13 solenoid valve coil:

Model
BB13040006
Hole size
13.0mm
Height
40.0mm
Width
29.5mm
Voltages
AC220V, AC110V, DC24V, DC12V
Power
13VA, 10W
Insulation class
H
Connection Type
DIN43650A
Application examples
Solenoid operated pneumatic and hydraulic valves


Main dimension of EVI 5M/13 solenoid valve coil:

EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC 0



Brando factory production of solenoid valve coil:

EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC 1



More Solenoid Valve Coil for you to choose:



*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

photobank (8)photobank (12)photobank (18)photobank (11)



*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

photobank (14)photobank (16)photobank (17)photobank (10)



*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC 10EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC 11EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC 12EVI 5M/13 AMISCO Type Solenoid Valve Coil 12VDC 24VDC 24VAC 110VAC 230VAC 13
