DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug

DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug

  • DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug
  • DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug
  • DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug
  • DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug
DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB12238507
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 set per month
Contact Now
Detailed Product Description
Product Name: Excavator Solenoid Coil Connection Type: Small Plug
Insulation Class: H Protection Class: IP65
Voltage: 12VDC, 24VDC Application Examples: DH55-5, DH55-7, DH60-5, DH60-7 Excavator
High Light:

Solenoid Coils

,

Solenoid Valve Coils

,

Coils For Solenoid Valves

DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug

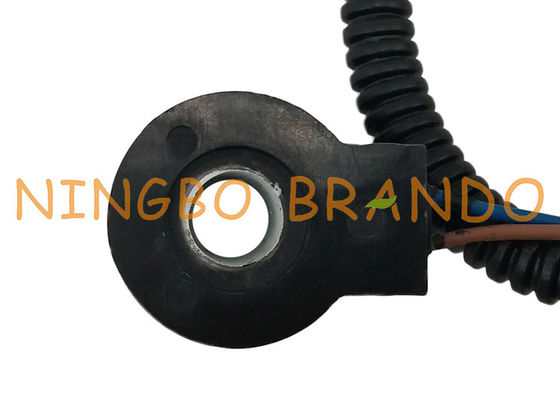

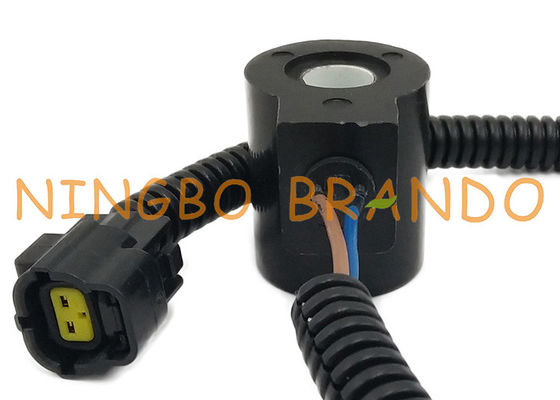

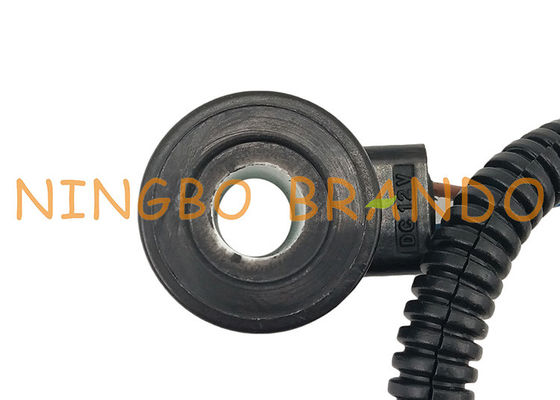

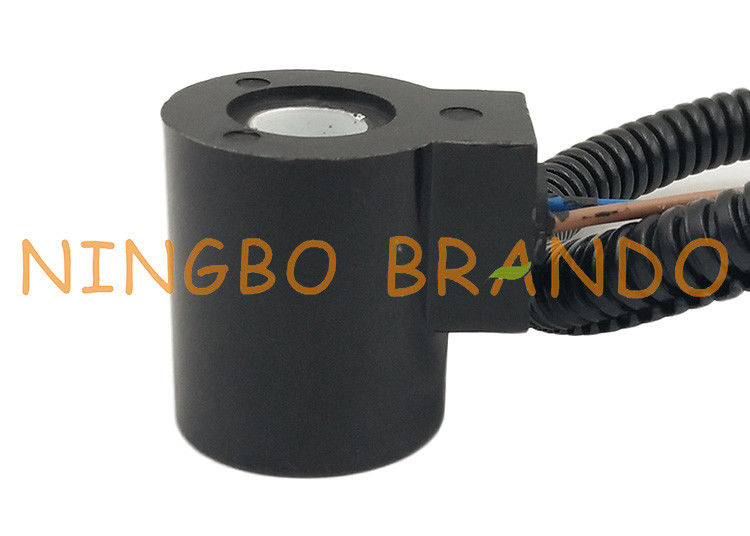

This is a excavator solenoid coil, coil inner hole diameter is 12.2mm, coil height is 38.5mm, coil width is 33.1mm, coil insulation class is H, coil connection type is small plug, 12VDC, 24VDC voltage, other voltages can be customized. It is widely used in excavator, like DH55-5, DH55-7, DH60-5, DH60-7.



Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.



Technical data of solenoid valve coil:

Model
BB12238507
Hole Size
12.2mm
Height
38.5mm
Width
33.1mm
Connector
Small Plug
Insulation Class
H
Protection Class
IP65
Normal Voltage
DC12V
Application
DH55-5, DH55-7, DH60-5, DH60-7 Excavator


Main dimension of solenoid valve coil:





Brando factory production of solenoid valve coil:

DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug 0



More Solenoid Valve Coil for you to choose:



*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

photobank (8)photobank (12)photobank (18)photobank (11)



*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

photobank (14)photobank (16)photobank (17)photobank (10)



*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug 9DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug 10DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug 11DH55-5 DH55-7 DH60-5 DH60-7 Excavator Part Solenoid Coil With Small Plug 12



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
