12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil

12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil

  • 12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil
  • 12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil
  • 12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil
  • 12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil
12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB12029210
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 set per month
Contact Now
Detailed Product Description
Product Name: ATIKER Type Solenoid Coil Connection Type: 6.3x0.8mm
Insulation Class: H Voltage: 12VDC
Power: 8W Inner Hole Diameter: 12mm
Height: 29.2mm Width: 32mm
Application Examples: Pressure Reducer, Petrol Valve, Cut Off Valve, Shut Off Valve, Multivalve
High Light:

Solenoid Coil For LPG

,

CNG Reducer Coil

,

CNG Solenoid Coil

12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil

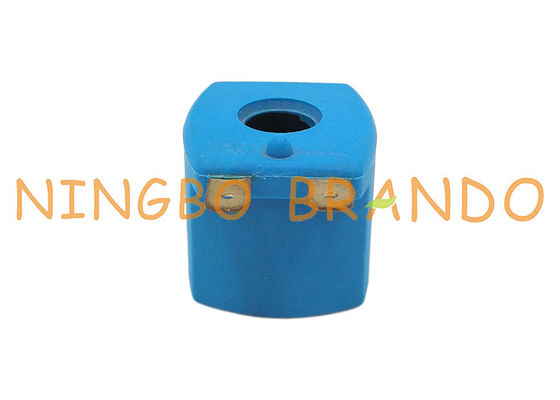

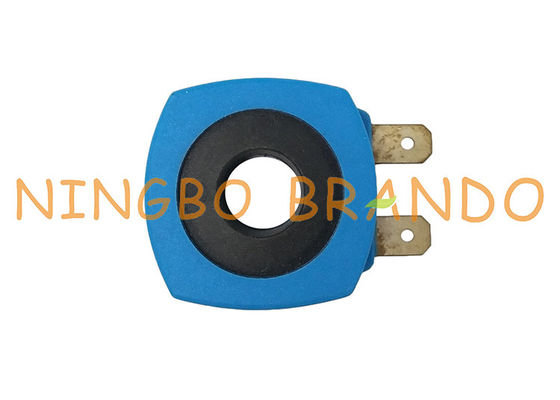

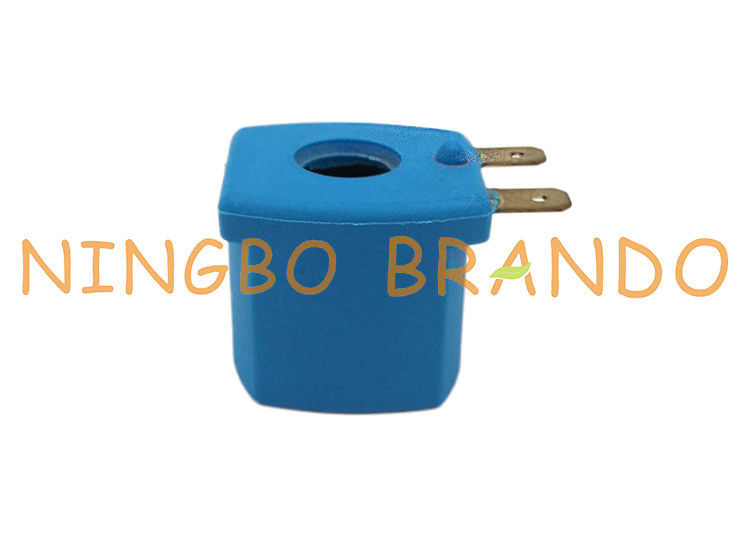

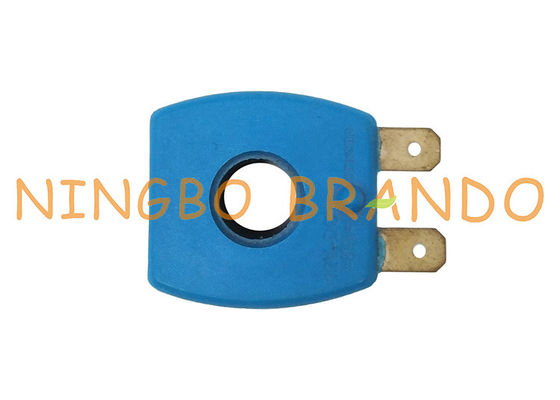

This is a ATIKER type lpg cng solenoid coil, coil inner hole diameter is 12mm, coil height is 29.2mm, coil width is 32mm, coil insulation class is H, coil connection type is 6.3x0.8mm, 12VDC voltage, 8W power, other voltages and power can be customized. It widely used in lpg cng system, like Pressure Reducer, Petrol Valve, Cut Off Valve, Shut Off Valve, Multivalve, and so on.



Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.



Technical data of solenoid valve coil:

Model
BB12029210
Hole Size
12mm
Height
29.2mm
Width
32mm
Connector
6.3x0.8mm
Insulation Class
H
Protection Class
IP65, IP67, IP68
Normal Voltage
DC12V
Power
8Watt
Application
LPG, CNG System


Main dimension of solenoid valve coil:

12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil 0


Brando factory production of solenoid valve coil:

12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil 1



More Solenoid Valve Coil for you to choose:



*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

photobank (8)photobank (12)photobank (18)photobank (11)



*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

photobank (14)photobank (16)photobank (17)photobank (10)



*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

12V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil 1012V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil 1112V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil 1212V DC 8W LPG CNG Conversion Kit ATIKER Type Solenoid Valve Coil 13



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
