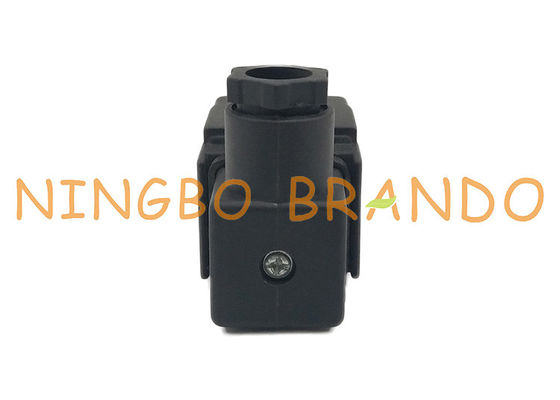

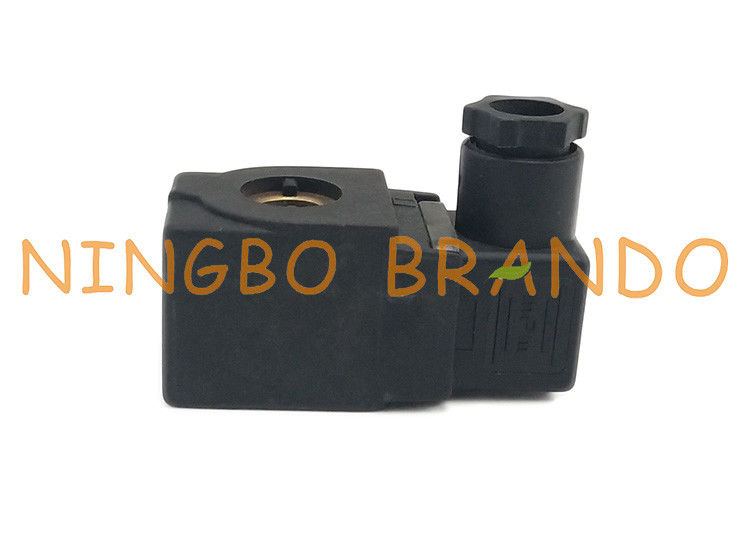

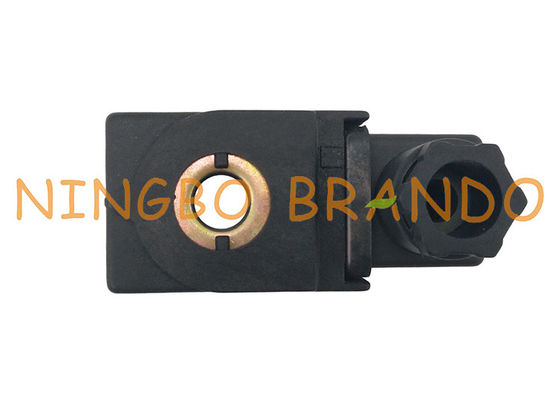

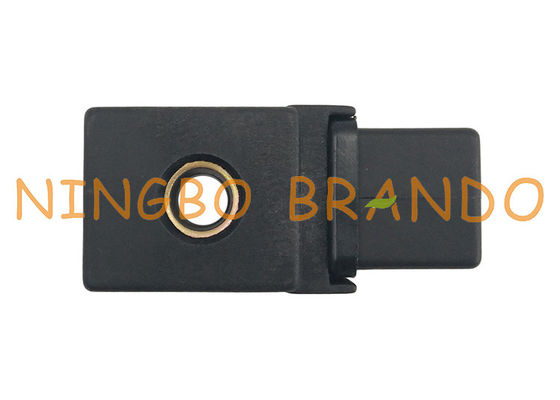

CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC

CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC

  • CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC
  • CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC
  • CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC
  • CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC
CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB11535505
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union,Paypal, MoneyGram
Supply Ability: 300000 set per month
Contact Now
Detailed Product Description
Product Name: CASTEL Type Solenoid Valve Coil Coil Type: HM2
Ref No: 9100/RA2, 9100/RA4, 9100/RA6, 9100/RA7 Connection Type: DIN43650A
Insulation Class: F, H, N Voltage: 24VAC, 110VAC, 220/230VAC, 240VAC (50/60Hz)
Power: 8W Suitable Valves: CASTEL Refrigeration Solenoid Valves
High Light:

Solenoid Coils

,

Solenoid Valve Coils

,

Coils For Solenoid Valves

CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC



This is a HM2 solenoid valve coil for castel refrigeration solenoid valves, coil insulation class is F, H, N, coil connection type is DIN43650A, power is 8watt, 24V AC, 110V AC, 220V/230V AC, 240V AC 50/60Hz voltages, other voltages can be customized.

Ref No: 9100/RA2, 9100/RA4, 9100/RA6, 9100/RA7.



Product features of solenoid valve coil:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.



Technical data of solenoid valve coil:

Coil Type
Part number
Voltage
Frequency
Power



HM2
9100/RA2
24



50/60



8
9100/RA4
110
9100/RA6
220/230
9100/RA7
240



CM2
9110/RA2
24



50/60



8
9110/RA4
110
9110/RA6
220/230
9110/RA7
240



HM3
9120/RD1
12 DC




-


20
9120/RD2
24 DC
9120/RD3
27 DC
9120/RD4
48 DC
22
9120/RD6
220 RAC
18



HM4
9160/RA2
24



50/60



8
9160/RA4
110
9160/RA6
220/230
9160/RA7
240




HF2
9300/RA2
24




50/60




8
9300/RA4
110
9300/RA6
220/230
9300/RA7
240
9300/RA8
380



HF3
9320/RA6
220/230
50/60
12
9320/RD1
12 DC



-


20
9320/RD2
24 DC
9320/RD3
27 DC
9320/RD4
48 DC
22


Main dimension of solenoid valve coil:

CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC 0



Brando factory production of solenoid valve coil:

CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC 1



More Solenoid Valve Coil for you to choose:



*Connector Options: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C, Wire Leads, DEUTSCH, AMP, KOSTAL .......

photobank (8)photobank (12)photobank (18)photobank (11)



*Application Options: Pneumatic Solenoid Valve Coil, Refrigeration Solenoid Valve Coil, Pulse Solenoid Valve Coil, Hydraulic Solenoid Valve Coil, Solenoid Coil For Excavator / Truck / Auto, Injector Rail Solenoid Coil, Solenoid Coil For Home Appliances, LPG CNG Solenoid Coil.........

photobank (14)photobank (16)photobank (17)photobank (10)



*Hole Diameter Options: 5-7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm, 17mm, Up to 60mm.

CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC 10CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC 11CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC 12CASTEL Type Solenoid Valve Coil HM2 9100/RA6 220/230VAC 9100/RA7 240VAC 13



Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
