| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | D76 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 4-8 day Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Size: | 3'' | Air Hole: | With |
|---|---|---|---|
| Spring: | With | Packaging: | Individual Sealed |
| Diaphragm Material: | Nitrile/Buna | Suitable Valve Number: | DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S |
| Diaphragm Outer Distance: | 201mm | Center Distance: | 182mm |
| Seat OD: | 102mm | ||
| High Light: | SBFEC Type Pulse Jet Valve,BFEC Membrane Rebuild Kit,Replacement Dust Collector Diaphragm Kit |
||

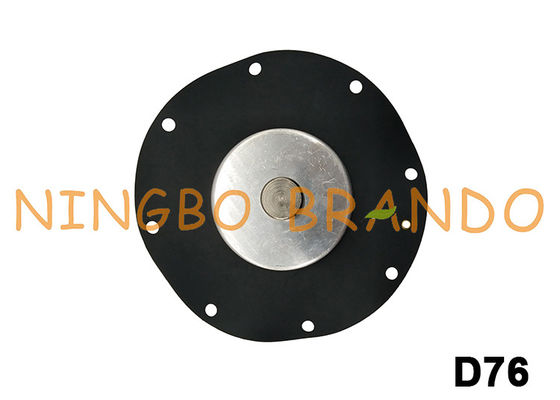

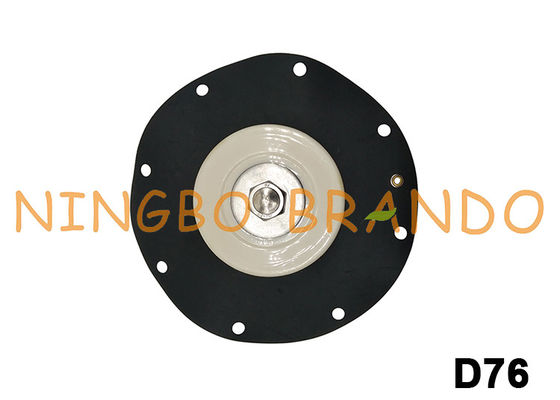

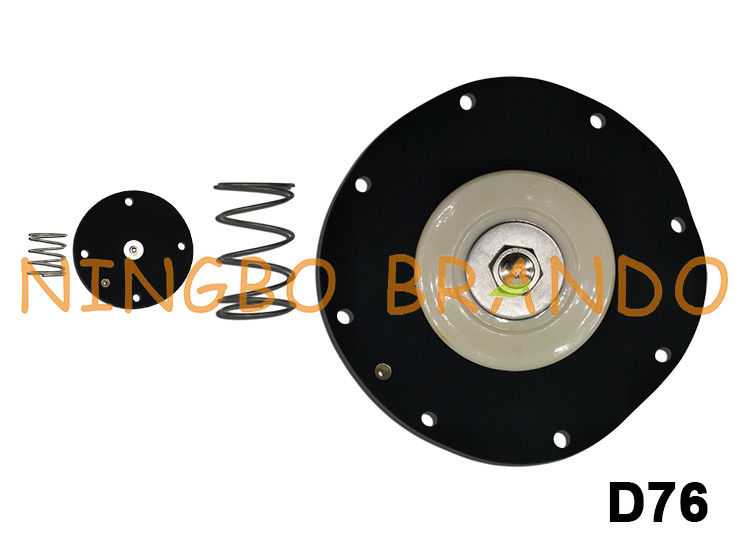

3'' DMF/MF Series Black Rubber BFEC Impulse Valve Diaphragm Repair Kit
This is repair kit NBR diaphragm for 2 1/2'' SBFEC DMF-Z-62S MF-Z-62S DMF-Y-62S MF-Y-62S pulse solenoid valves. And Brando has manufactured and exported diaphragm repair kits more than 10 years, almost all of our customers were satisfactory with our quality and credibility.
Available Models of BFEC DMF/MF Series Diaphragm Repair Kit:
|
Ordering Code
|
Fitted Valve Code
|
Port Size
|
|
DTY
|
MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
|
Secondary Diaphragm
|
|
D20A
|
DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
|
3/4''
|
|
D25
|
DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
DMF-T-20, MF-T-20
|
3/4'' & 1''
|
|
D40
|
DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
DMF-T-25S, MF-T-25S
|
1'' & 1-1/2''
|
|
D50
|
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
DMF-T-50S, MF-T-50S
|
2''
|
|
D62
|
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
|
2-1/2''
|
|
D76
|
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
|
3''
|
|
D102
|
DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
|
4''
|
|
D102A
|
DMF-Y-102SA, MF-Y-102SA
|
4''
|
|
DZL-20B
|
DMF-ZL-B, MF-ZL-B
|
3/4''
|

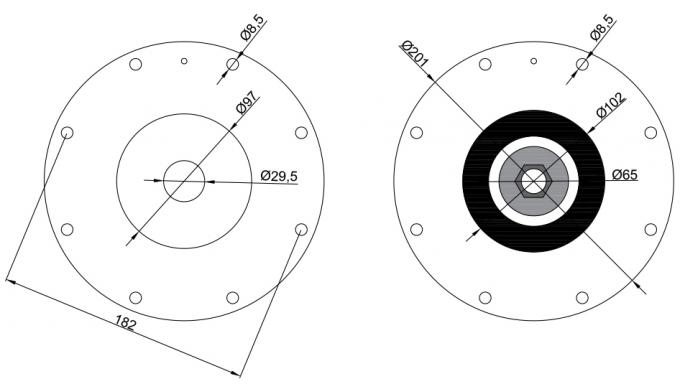

Dimension Diagram:
The installment introduction
1. First, Confirm the pulse valve in good condition and then installed
2. Pulse valve will be installed directly the outer wall of flange of gas manifold. The spray pipe across the gas manifold. According to the drawing and manual, the pulse valve matching appropriate spray pipe and installation. To avoid the valve install in the air manifold bottom. If the pulse valve matched trachea and connector, the connector will be used for sealing purpose only. It can not as structural support components. It can not rely on the straight connector fixed spray torch and package. The spray pipe and air manifold must be fixed independent.
3. To tighten the hard nut, the maximum torque of 20 N*m.Tighten the trachea, torsion of 20 N*m.
4. The connection control wire needs connect of every electric control valve seat. Pay attention to the line adown to prevent rain waterproof. Or through the joint and nylon pipe, it will connect the pulse valve and electromagnetic assembly boxes of nylon pipe connection.
5. To ensure that provide compressed air clean and dry. The air manifold system provides moderate pressure and check for leaks installation. ( it can brush on soap and water, check whether the interface is bubble). Pressure was carried out on the air bag inflated (pressure of the valve is around 0.03 ~ 0. 86 mpa), recommend for air pressure 0.8 mpa maximum
6. Testing the pulse valve blowing, listening all the pilot valve whether it is normal operation and whether the pulse blowing sound is clear.
