| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | D40 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 4-8 day Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Size: | 1-1/2'' | Air Hole: | With |
|---|---|---|---|
| Spring: | With | Packaging: | Individual Sealed |
| Diaphragm Material: | Nitrile/Buna | Suitable Valve Number: | MF/DMF-Z-40S MF/DMF-Y-40S MF/DMF-ZM-40S |
| Diaphragm Outer Distance: | 111.5mm | Center Distance: | 98mm |
| Seat OD: | 56.5mm | ||
| High Light: | SBFEC Type Pulse Jet Valve,BFEC Membrane Rebuild Kit,Dust Collector Diaphragm Kit |
||

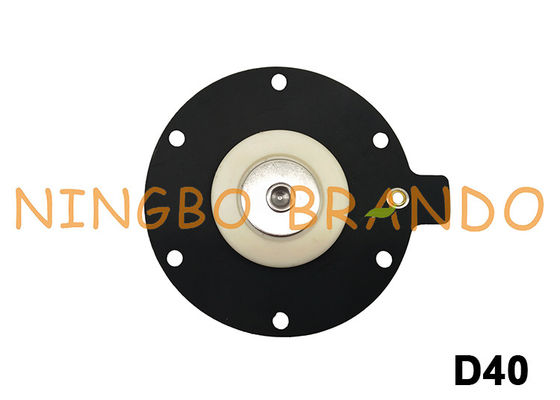

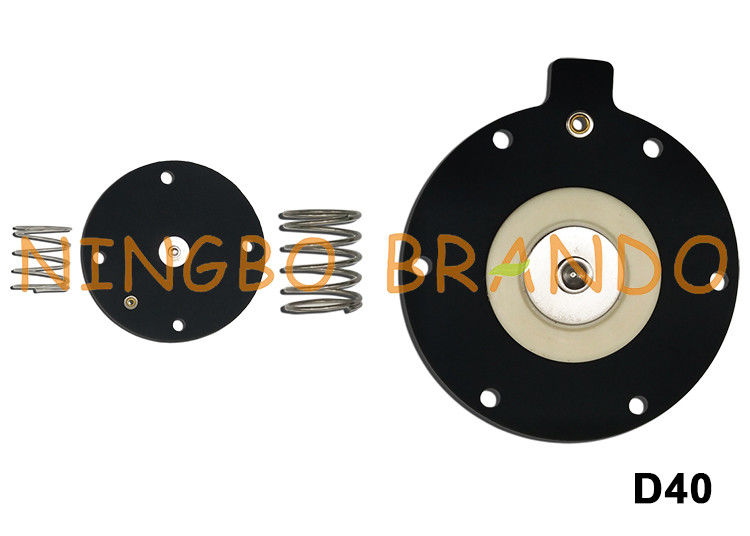

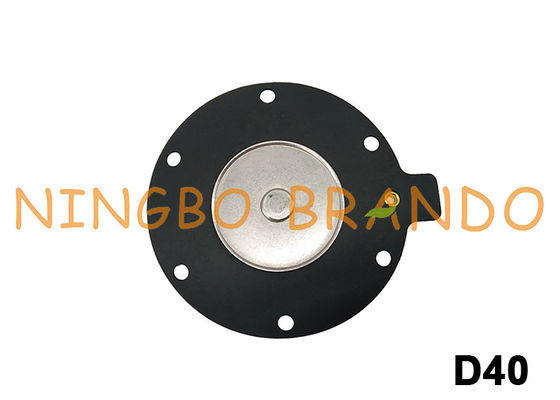

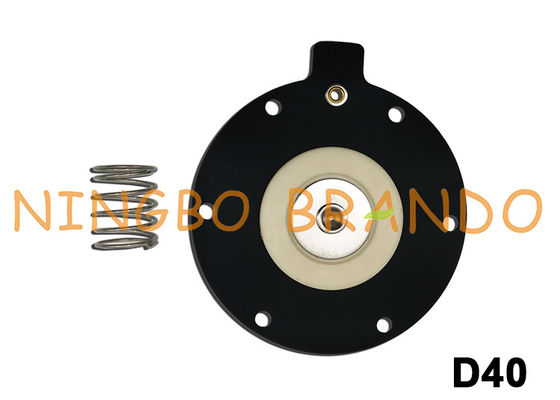

1-1/2'' SBFEC Type Industrial Bag Dust Removal Filter Pulse Jet Valve Diaphragm Repair Kit
The introduced is a Nylon seat NBR diaphragm repair kit for SBFEC 1 1/2'' MF-Z-40S, DMF-Z-40S, MF-Y-40S, DMF-Y-40S, MF-ZM-40S, DMF-ZM-40S impulse diaphragm valves. Pulse jet valve also called diaphragm valve that is the "switch" for compressed air in the dust clean blowing system of the pulse jet bag filter. Controlled by the output signals of the pulse control device, it makes dust clean to the filter bags cell by cell to keep the resistance of the bag filter within the sec range and thus guarantee the processing functions and the dust collecting efficiency of the bag filter dust collector.
Available Models of BFEC DMF/MF Series Diaphragm Repair Kit:
|
Ordering Code
|
Fitted Valve Code
|
Port Size
|
|
DTY
|
MF/DMF-T-25S, MF/DMF-T-40S, MF/DMF-T-50S, MF/DMF-T-62S,
MF/DMF-ZM-40S, MF/DMF-Y-40S, MF/DMF-Y-50S, MF/DMF-Y-62S,
MF/DMF-Y-76S, MF/DMF-YA-76S, MF/DMF-YB-76S, MF/DMF-Y-102S,
MF/DMF-Y-102SA, MF/DMF-Y-102SE, MF/DMF-ZF-40S, MF/DMF-Z-40S,
MF/DMF-Z-50S, MF/DMF-Z-62S, MF/DMF-Z-76S, MF/DMF-Z-102S
|
Secondary Diaphragm
|
|
D20A
|
DMF-Z-20, MF-Z-20, DMF-ZM-20, MF-ZM-20
|
3/4''
|
|
D25
|
DMF-Z-25, MF-Z-25, DMF-ZM-25, MF-ZM-25,
DMF-ZF-25, MF-ZF-25, DMF-Y-25, MF-Y-25,
DMF-T-20, MF-T-20
|
3/4'' & 1''
|
|
D40
|
DMF-Z-40S, MF-Z-40S, DMF-Y-40S, MF-Y-40S,
DMF-ZF-40S, MF-ZF-40S, DMF-ZM-40S, MF-ZM-40S,
DMF-T-25S, MF-T-25S
|
1'' & 1-1/2''
|
|
D50
|
DMF-Z-50S, MF-Z-50S, DMF-Y-50S, MF-Y-50S,
DMF-T-50S, MF-T-50S
|
2''
|
|
D62
|
DMF-Z-62S, MF-Z-62S, DMF-Y-62S, MF-Y-62S
|
2-1/2''
|
|
D76
|
DMF-Z-76S, MF-Z-76S, DMF-Y-76S, MF-Y-76S
|
3''
|
|
D102
|
DMF-Z-102S, MF-Z-102S, DMF-Y-102S, MF-Y-102S
|
4''
|
|
D102A
|
DMF-Y-102SA, MF-Y-102SA
|
4''
|
|
DZL-20B
|
DMF-ZL-B, MF-ZL-B
|
3/4''
|
Dimension Diagram:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
