| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | G50 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 4-8 day Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Size: | 2''/2-1/2'' | Air Hole: | With |
|---|---|---|---|
| Spring: | With | Packaging: | Individual Sealed |
| Diaphragm Material: | Nitrile/Buna | Suitable Valve Number: | CA50, RCA50, CA62, RCA62 |
| Diaphragm Outer Distance: | 183mm | Center Distance: | 164mm |
| Seat OD: | 103mm | ||
| High Light: | Goyen Membrane,Goyen Diaphragm Kit,Goyen Diaphragm Valve Repair Kit |
||

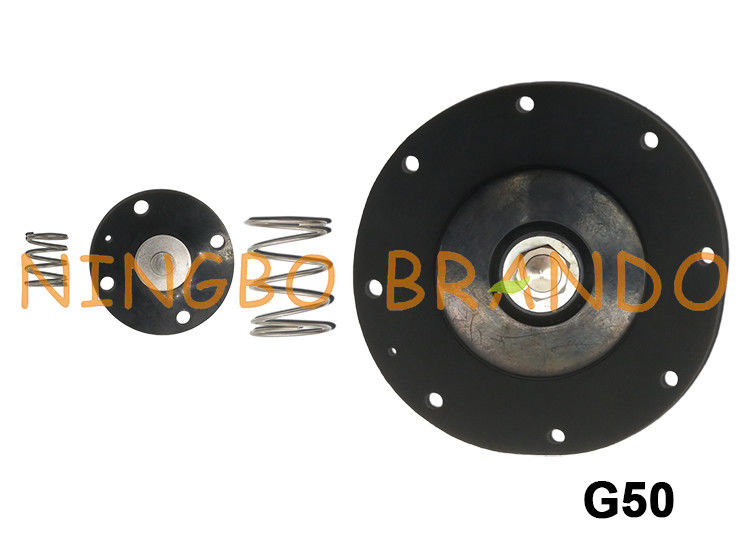

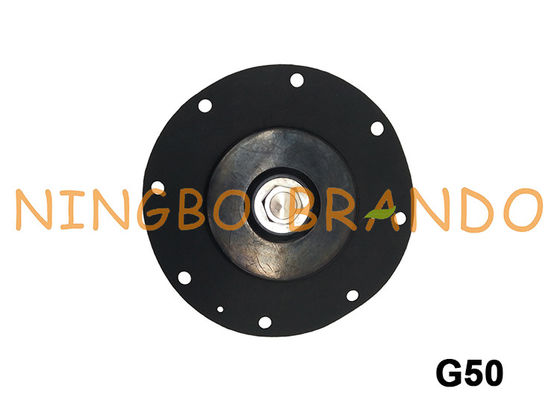

K5004 M1638A FKM K5005 M1639A Diaphragm Repair Kit For 2'' CA/RCA50 2-1/2'' CA/RCA62 Pulse Jet Valve
Application of Pulse Valve Diaphragm
Electromagnetic pulse valve diaphragm is the diaphragm in the electromagnetic pulse valve body, which is the key to its normal operation. Due to pulse valve diaphragm needs from time to time opening and closing action is a flexible mechanism to control the air circulation, has good flexibility and requirements, also demanded the sealing as high as possible, so the pulse valve diaphragm material is directly related to the service life of pulse valve diaphragm and using effect, in other words, the pulse valve diaphragm is good or bad will directly affect the working stability of pulse bag filter soot cleaning system, is directly related to the use of dust removal equipment cost, general pulse
Goyen Type Diaphragm Repair Kit:
Deference number:
| Material | Repair kit | Fitted Valve Model | Port Size |
| Buna/Nylon | K2000(M1204B) | CA20, RCA20, RCAC20 | 3/4'' |
| K2003(M1174B) | |||
| K2016 | |||
| K2034 | |||
| Buna/Buna | K2002(M764) | ||
| FKM | K2007(M2080B) | ||
| K2004(1328B) | |||
| K2017 | |||
| K2033 | |||
| Buna/Nylon | K2501(M1183B) | CA25, RCA25, RCAC25 | 1'' |
| K2529 | |||
| K2549 | |||
| K2531 | |||
| K2545 | |||
| K2546 | |||
| Buna/Buna | K2502(M736) | ||
| FKM | K2503(M1887) | ||
| K2530 | |||
| K2532 | |||
| K2551 | |||
| Buna/Nylon | K2500(M1183) |
CA32, RCA32, CA35, RCA35,
CA40, RCA40, CA45, RCA45
|
1-1/2'' |
| K3500(M1581) | |||
| K4000(M1182) | |||
| K4502(M2162) | |||
| Buna/Buna | K3502(M1591) | ||
| K4504(M2187) | |||
| FKM | K2503(M1887) | ||
| K4004(M1761) | |||
| K4007(M1156) | |||
| K4503(M2163) | |||
|
Buna/Nylon Buna/Buna |
K5004(M1638A) | CA50, RCA50, CA62, RCA62 | 2'' , 2-1/2'' |
| K5005(M1639A) | |||
| FKM | K5000(M1157A) | ||
| K5002(M1528A) | |||
|
Buna/Nylon Buna/Buna |
K7600 | CA76, RCA76 | 3'' |
| K7604 | |||
| K7610 | |||
| FKM | K7602 | ||
| Buna/Nylon | K10200 | CA102, RCA102 | 4'' |
| Buna/Buna | K10203 | ||
| FKM | K10201 | ||
|
Buna/Nylon Buna/Buna |
K8000 | CA8, RCA8 | 8'' |
| FKM |
Dimension Diagram:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
