| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | G89 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 4-8 day Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Size: | 3-1/2'' | Air Hole: | With |
|---|---|---|---|
| Spring: | With | Packaging: | Individual Sealed |
| Diaphragm Material: | Nitrile/Buna | Suitable Valve Number: | CA89MM |
| Diaphragm Outer Distance: | 198mm | Center Distance: | 175mm |
| Seat OD: | 103mm | ||
| High Light: | Goyen Diaphragm,Goyen Pulse Valve Diaphragm,Goyen Diaphragm Repair Kit |
||

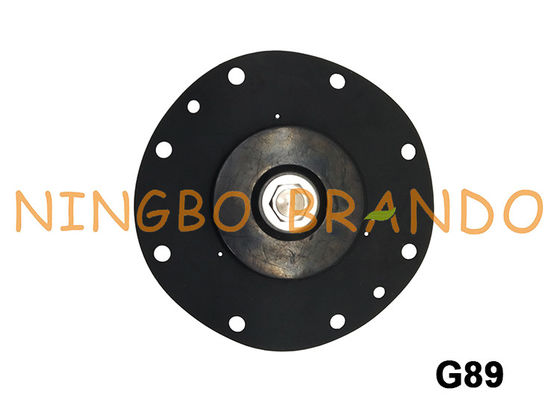

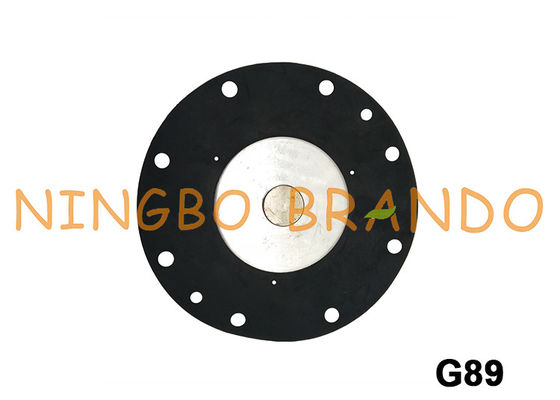

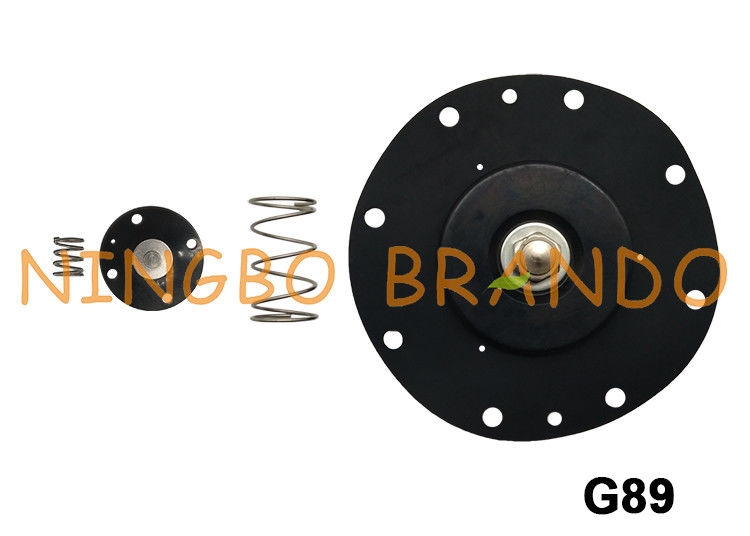

3'' Goyen Type Pulse Valve CA89MM Diaphragm Repair Kit
The selection of pulse valve with low resistance and high injection volume can remove larger area of filter material and greatly save the overall cost of the injection system. Due to the reduction of the number of valves, the operation and maintenance costs of the dust collector will also be reduced accordingly, so we should choose the electromagnetic valve diaphragm suitable for high, medium and low pressure range.The quality of pulse valve diaphragm directly affects the work stability of the dust removal system of pulse bag filter, and also directly affects the use cost of dust removal equipment.
Select pulse valve diaphragm can not simply look at membrane pores in what position, but also look to and supporting the use of pulse valve diaphragm in porosity in what position, if the pulse valve in stomata in the edge edge will use in porosity of the diaphragm to match, if there is no loophole edge of pulse valve should be used with porosity of diaphragm, if you don't corresponding pulse valve and the membrane pores, can cause air flow is not smooth, pulse valve can't work normally, be sure to check carefully!
Goyen Type Diaphragm Repair Kit:
Deference number:
| Material | Repair kit | Fitted Valve Model | Port Size |
| Buna/Nylon | K2000(M1204B) | CA20, RCA20, RCAC20 | 3/4'' |
| K2003(M1174B) | |||
| K2016 | |||
| K2034 | |||
| Buna/Buna | K2002(M764) | ||
| FKM | K2007(M2080B) | ||
| K2004(1328B) | |||
| K2017 | |||
| K2033 | |||
| Buna/Nylon | K2501(M1183B) | CA25, RCA25, RCAC25 | 1'' |
| K2529 | |||
| K2549 | |||
| K2531 | |||
| K2545 | |||
| K2546 | |||
| Buna/Buna | K2502(M736) | ||
| FKM | K2503(M1887) | ||
| K2530 | |||
| K2532 | |||
| K2551 | |||
| Buna/Nylon | K2500(M1183) |
CA32, RCA32, CA35, RCA35,
CA40, RCA40, CA45, RCA45
|
1-1/2'' |
| K3500(M1581) | |||
| K4000(M1182) | |||
| K4502(M2162) | |||
| Buna/Buna | K3502(M1591) | ||
| K4504(M2187) | |||
| FKM | K2503(M1887) | ||
| K4004(M1761) | |||
| K4007(M1156) | |||
| K4503(M2163) | |||
|
Buna/Nylon Buna/Buna |
K5004(M1638A) | CA50, RCA50, CA62, RCA62 | 2'' , 2-1/2'' |
| K5005(M1639A) | |||
| FKM | K5000(M1157A) | ||
| K5002(M1528A) | |||
|
Buna/Nylon Buna/Buna |
K7600 | CA76, RCA76 | 3'' |
| K7604 | |||
| K7610 | |||
| FKM | K7602 | ||
| Buna/Nylon | K10200 | CA102, RCA102 | 4'' |
| Buna/Buna | K10203 | ||
| FKM | K10201 | ||
|
Buna/Nylon Buna/Buna |
K8000 | CA8, RCA8 | 8'' |
| FKM |
Dimension Diagram:
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
