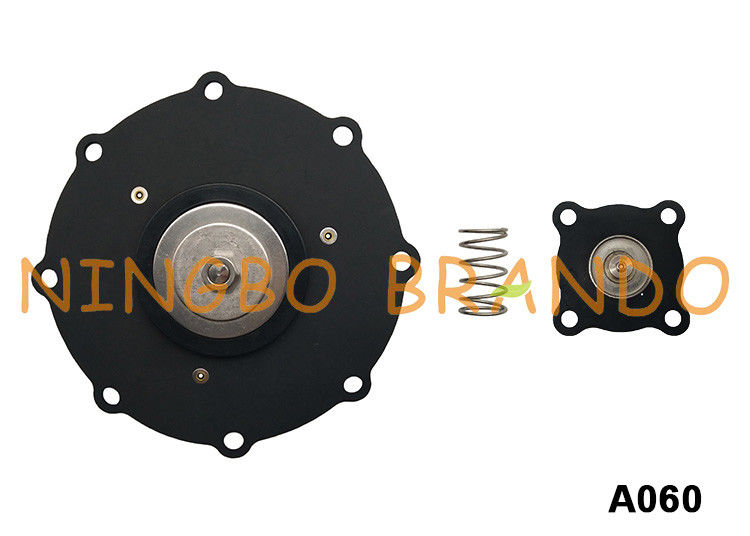

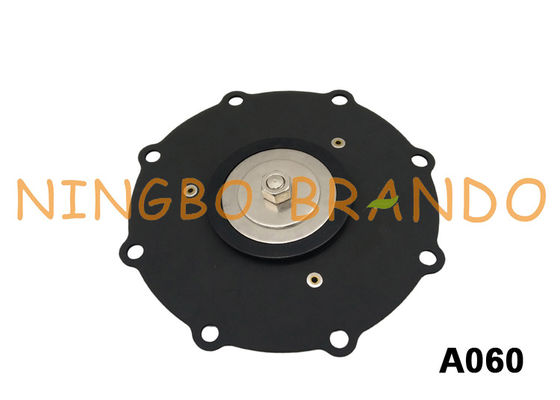

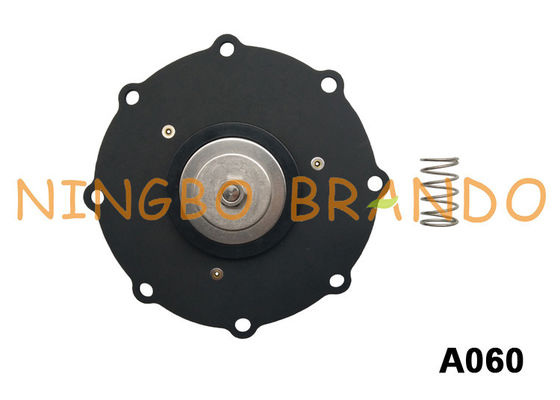

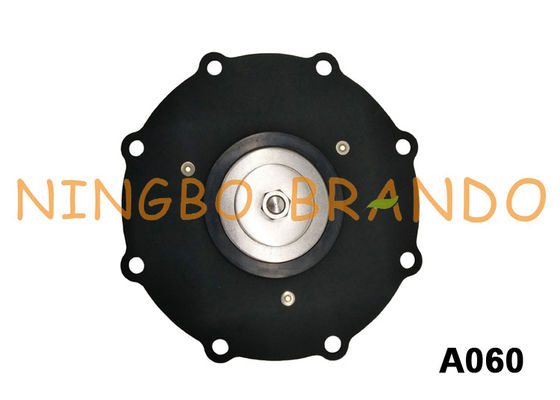

C113928 SCXE353.060 3" Immerse Tank Valve Nitrile Buna Diaphragm Repair Kits

C113928 SCXE353.060 3" Immerse Tank Valve Nitrile Buna Diaphragm Repair Kits

  • C113928 SCXE353.060 3" Immerse Tank Valve Nitrile Buna Diaphragm Repair Kits
  • C113928 SCXE353.060 3" Immerse Tank Valve Nitrile Buna Diaphragm Repair Kits
  • C113928 SCXE353.060 3" Immerse Tank Valve Nitrile Buna Diaphragm Repair Kits
  • C113928 SCXE353.060 3" Immerse Tank Valve Nitrile Buna Diaphragm Repair Kits
C113928 SCXE353.060 3" Immerse Tank Valve Nitrile Buna Diaphragm Repair Kits
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: A060
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Material: NBR/Buna Suitable Valve Number: SCXE353.060
Mounting Hole Size: 11.0mm Diaphragm Outer Distance: 190mm
Center Distance: 187mm Sealing Gasket OD: 90mm
Spring: With Ref Number: C113928
Packaging: Individual Sealed Size: For 3'' Diaphragm Pulse Valve
High Light:

ASCO Diaphragm

,

ASCO Pulse Valve Diaphragm

,

ASCO Membrane

C113928 SCXE353.060 3'' Immerse Tank Valve Nitrile Buna Diaphragm Repair Kits





The 3-inch ASCO pulse valve diaphragm is an important accessory of the electromagnetic pulse valve. The electromagnetic pulse valve is the "switch" of the air injection circuit of the dust cleaning system of the pulse bag filter, which is widely used at present.

Structure and performance of 3-inch ASCO pulse valve diaphragm: it is composed of single or multi-layer glued on both sides, and there are also rubber non sandwiched fabrics. According to its shape, the membrane pressing method is used. According to the use requirements can be made of different rubber, different fabrics of the diaphragm. The properties of NBR / PS blends for 3-inch ASCO pulse valve diaphragms, the properties of rubber compounds for canvas disc diaphragms (commonly known as diaphragms), and the properties of some silicone rubber, fluororubber and chlorohydrin rubber diaphragms developed in recent years.





Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.



Dimension of C113928 ASCO Type Diaphragm:

Dimension of C113928 ASCO Type Diaphragm:



Technical:

Ordering Code
Fitted Valve Code
Valve Port Size
Material
C113443
G353A041, G353A042
3/4'', 1''
TPE/NBR
C113444
SCG353A043, SCG353A044,
SCG353-052, SCG353-053
3/4'', 1''
C113825
G353A045
1-1/2''
NBR
C113826
G353A046
1-1/2''
C113827
SCG353A047, SCG353A065
1-1/2''
C113685
SCG353A050, SCG353A051
2'', 2-1/2''
C113686
C113928
SCEX353.060
3''
C123432
SCG353D060, G353.060
C123433
K096875 (K238864)
8353C033
3/4''
K200262 (K238866)
G353A041, G353A042,
SCG353A043, SCG353A044,
SCG353-052, SCG353-053
1''
K276886 (K238870)
G353A045, G353A046,
SCG353A047, SCG353A065
1-1/2''
K276886B
K276887
VITON
Tips: EPDM, VITON All Available.

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.
