ASCO Type Pulse Jet Valve 3/4'' 1'' C113444 TPU/NBR Diaphragm Repair Kit

ASCO Type Pulse Jet Valve 3/4'' 1'' C113444 TPU/NBR Diaphragm Repair Kit

ASCO Type Pulse Jet Valve 3/4'' 1'' C113444 TPU/NBR Diaphragm Repair Kit
video
ASCO Type Pulse Jet Valve 3/4'' 1'' C113444 TPU/NBR Diaphragm Repair Kit
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: A044
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Material: TPE Suitable Valve Number: SCG353A043, SCG353A044, SCG353-052, SCG353-053, G353A041, G353A042
Mounting Hole Size: 6.5mm Diaphragm Outer Distance: 76.5mm
Center Distance: 78mm Sealing Gasket: Without
Spring: 1 Bleed Hole: 1
Packaging: Individual Sealed Valve Port Size: 3/4'', 1''
High Light:

ASCO Diaphragm

,

ASCO Pulse Valve Diaphragm

,

ASCO Membrane

ASCO Type Pulse Jet Valve C113444 TPU/NBR Diaphragm Repair Kit

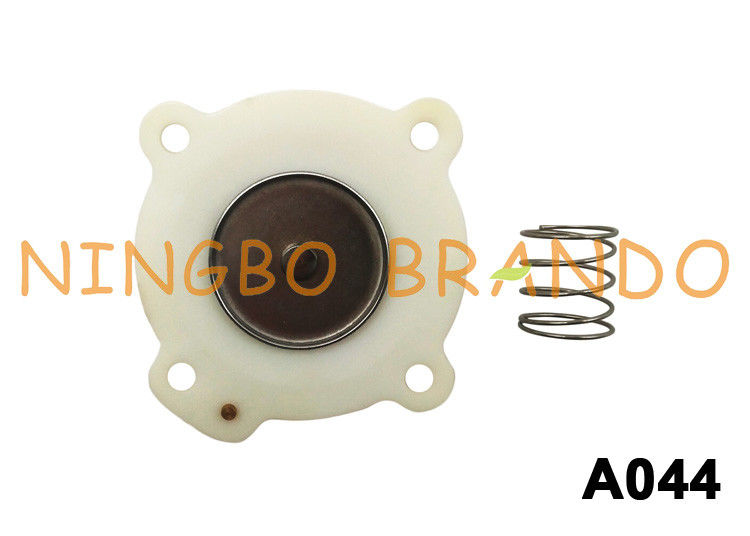

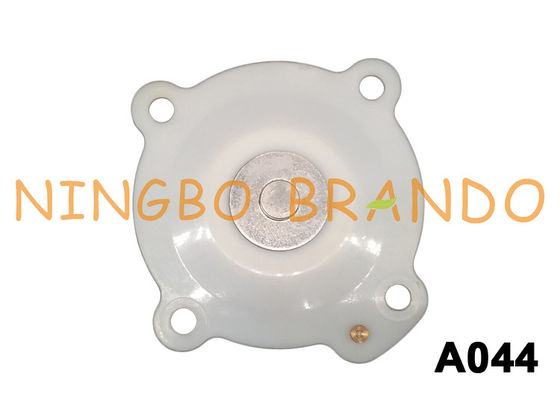

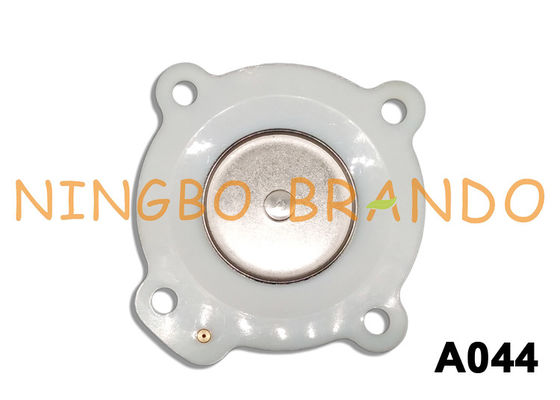

This white TPE diaphragm is used in 1 Inch ASCO type dust collector pulse jet valve (Also called diaphragm valve) SCG353A044. As a Replacement diaphragm repair kit, It has strong oil resistance, acid resistance, high temperature resistance and alkali resistance. It can easily ensure complete synchronization with other control components and control the injection of pulse compressed air.



Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.



Dimension of C113444 ASCO Type Diaphragm:

ASCO Type Pulse Jet Valve 3/4'' 1'' C113444 TPU/NBR Diaphragm Repair Kit 0



Technical:

Ordering Code
Fitted Valve Code
Valve Port Size
Material
C113443
G353A041, G353A042
3/4'', 1''
TPE/NBR
C113444
SCG353A043, SCG353A044,
SCG353-052, SCG353-053
3/4'', 1''
C113825
G353A045
1-1/2''
NBR
C113826
G353A046
1-1/2''
C113827
SCG353A047, SCG353A065
1-1/2''
C113685
SCG353A050, SCG353A051
2'', 2-1/2''
C113686
C113928
SCEX353.060
3''
C123432
SCG353D060, G353.060
C123433
K096875 (K238864)
8353C033
3/4''
K200262 (K238866)
G353A041, G353A042,
SCG353A043, SCG353A044,
SCG353-052, SCG353-053
1''
K276886 (K238870)
G353A045, G353A046,
SCG353A047, SCG353A065
1-1/2''
K276886B
K276887
VITON
Tips: EPDM, VITON All Available.

Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.
