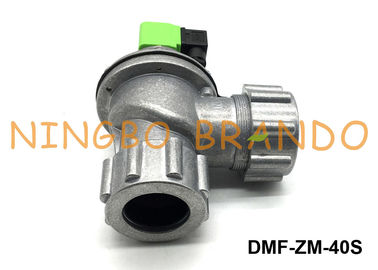

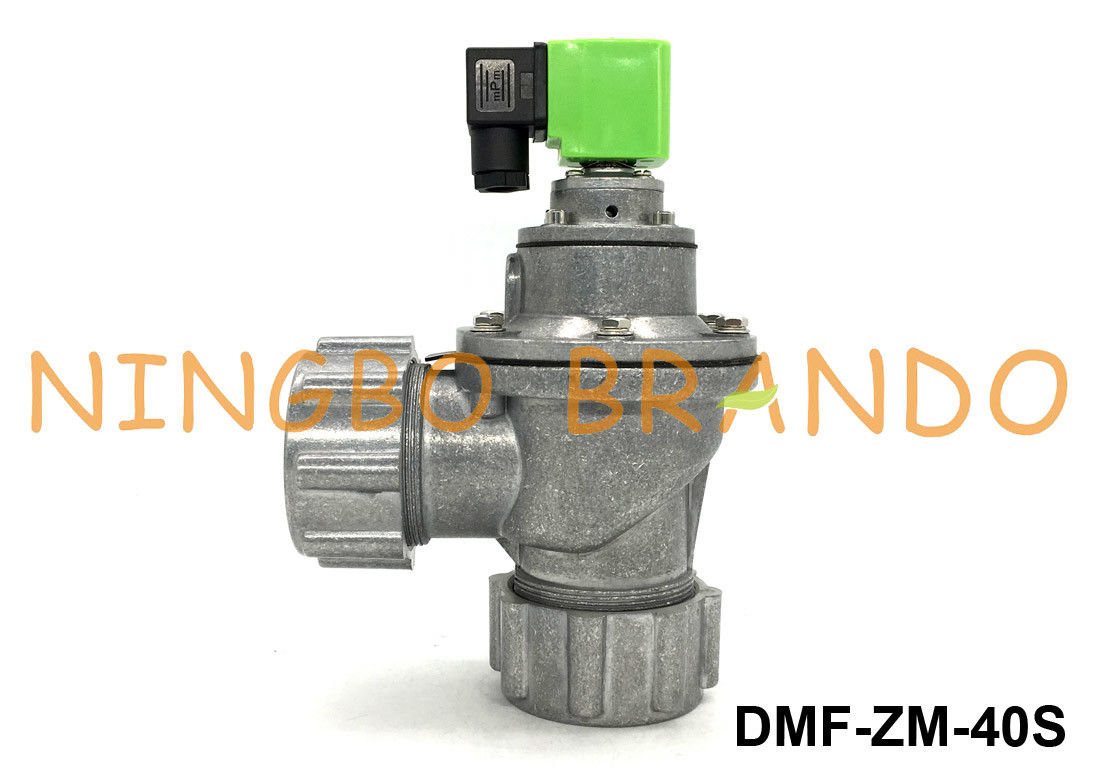

DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC

DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC

DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC
DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC

Product Details:

Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: DMF-ZM-40S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: DMF-ZM-40S Pulse Jet Valve Remote Or Integral Pilot: Integral Pilot
Pipe Size: Inlet=Outlet=φ48 Structure: Diaphragm
Diaphragm Material: NBR (Buna) Right Angle Pulse Jet Valve: DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S
Quick Mount Pulse Jet Valve: DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-ZL-B Embedded/Immersion Pulse Jet Valve: DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-YA-76S, DMF-YB-76S, DMF-Y-102S, DMF-Y-102SA, DMF-Y-102SE
Flanged Pulse Jet Valve: DMF-ZF-25, DMF-ZF-40S Straight Through Pulse Jet Valve: DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S
Working Pressure Range: 0.1 To 0.8MPa Voltage: 24VDC, 220VAC
High Light:

Diaphragm Solenoid Pulse Valve

,

Solenoid Pulse Jet Valve

DMF-ZM-40S 1 1/2'' BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC



DMF Series BFEC Pulse Jet Valves:

1. Right Angle Pulse Jet Valve: DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S

2. Quick Mount Pulse Jet Valve: DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-ZL-B

3. Immersion (Embedded) Pulse Jet Valve: DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-YA-76S, DMF-YB-76S, DMF-Y-102S, DMF-Y-102SA, DMF-Y-102SE

4. Flanged Pulse Jet Valve: DMF-ZF-25, DMF-ZF-40S

5. Straight Through Pulse Jet Valve: DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S



Main Dimension of DMF-ZM-40S Pulse Jet Valve:

DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 0



Technical data of DMF Series Quick Mount Pulse Jet Valve:

Model
DMF-ZM-20
DMF-ZM-25
DMF-ZM-40S
Nominal Size
20
25
40
Port size
mm
20
25
40
in
3/4
1
1 1/2
Blowing Area (m2)
3.5~6
8~10
12~16
Number of Diaphragms
1
1
2
Flow
Kv
17.55
26.16
45.82
Cv
20.48
50.53
53.47
Pressure (Psi)
0.1Mpa~0.8Mpa
Temperature (℃)
-25℃ to +80℃
Voltage
AC220V, AC110V, AC24V, DC24V

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.



List of All DMF Series BFEC Pulse Jet Valves:

Thread Valve
3/4''
1''
1.5''
2''
2.5''
3''
4''
DMF-Z-20
DMF-Z-25
DMF-Z-40S
DMF-Z-50S
DMF-Z-62S
DMF-Z-76S
DMF-Z-102S
Quick Mount Valve
3/4''
Inlet φ27
1''
1.5''
DMF-ZM-20
DMF-ZL-B
DMF-ZM-25
DMF-ZM-40S
Flange Valve
1''
1.5''
DMF-ZF-25
DMF-ZF-40S
Embedded Valve
1''
1.5''
Outlet φ62mm
Outlet φ75
Outlet φ89
Outlet φ114
Outlet φ102
DMF-Y-25
DMF-Y-40S
DMF-Y-50S
DMF-Y-62S
DMF-Y-76S
DMF-Y-102S
DMF-Y-102SA



Product Features:

1. Ready for use in any dust collector design
*For noxious substance control and environmental dust management



2. Cost savings
*Increased pulse efficiency, reduced energy consumption
*Durable materials and wide temperature range enhance lifespan
*Longer filter life, lower dust collector OPEX



3. Compliance
*With environmental and health & safety regulations



4. Ease of installation
*No welding required with 90° connections directly onto squaretanks



Brando Supply:

 DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 1DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 2DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 3DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 4

       BFEC Pulse Jet Valve              CA/RCA Pulse Jet Valve                353 Pulse Jet Valve               Other Pulse Jet Valve



  DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 5DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 6DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 7DMF-ZM-40S 1 1/2" BFEC Quick Mount Dust Collector Diaphragm Valve 24VDC 220VAC 8

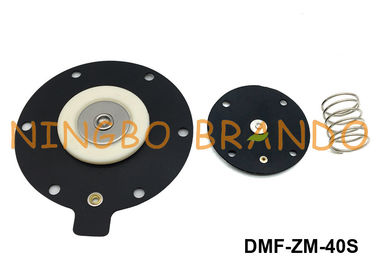

             Pulse Controller                     Diaphragm Repair Kit                Solenoid Valve Coil        Solenoid Valve Armature Assembly
