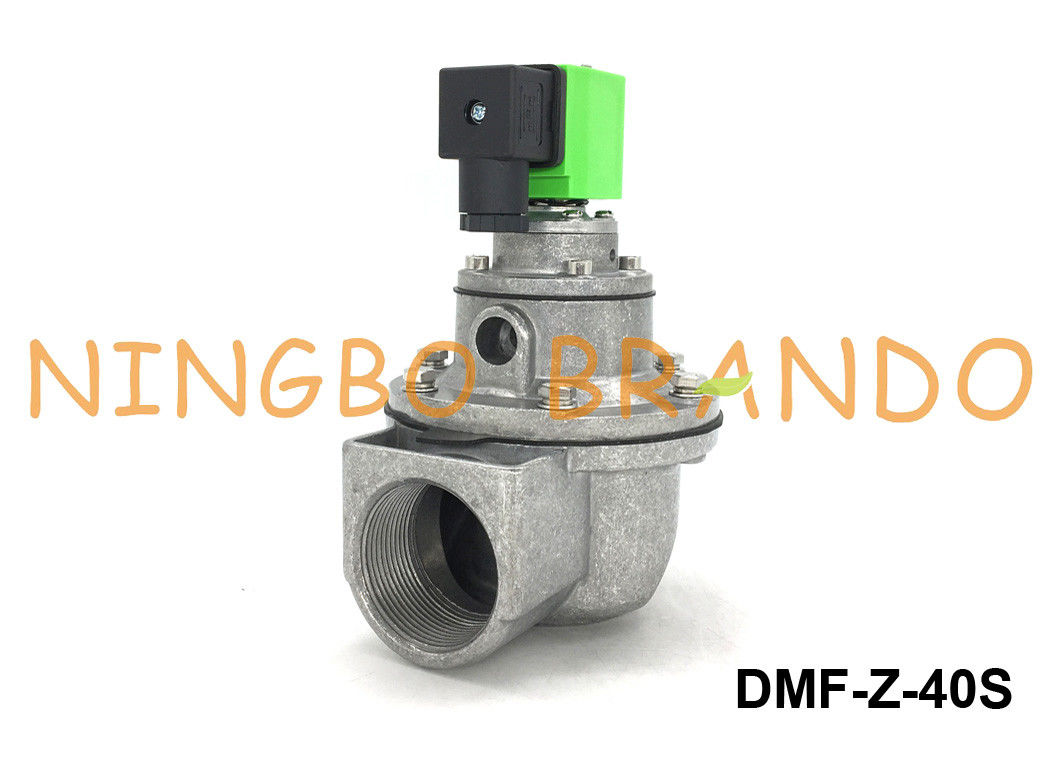

DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC

DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC

DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC
DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC

Product Details:

Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: DMF-Z-40S

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: DMF-Z-40S Pulse Jet Valve Remote Or Integral Pilot: Integral Pilot
Port Size: 1 1/2'' Structure: Diaphragm
Diaphragm Material: NBR (Buna) Right Angle Pulse Jet Valve: DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S
Quick Mount Pulse Jet Valve: DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-ZL-B Embedded/Immersion Pulse Jet Valve: DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-YA-76S, DMF-YB-76S, DMF-Y-102S, DMF-Y-102SA, DMF-Y-102SE
Flanged Pulse Jet Valve: DMF-ZF-25, DMF-ZF-40S Straight Through Pulse Jet Valve: DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S
Working Pressure Range: 0.1 To 0.8MPa Voltage: 24VDC, 220VAC
High Light:

Pulse Jet Solenoid Valve

,

Pulse Jet Dust Collector Valve

DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC



DMF Series BFEC Pulse Jet Valves:

1. Right Angle Pulse Jet Valve: DMF-Z-20, DMF-Z-25, DMF-Z-40S, DMF-Z-50S, DMF-Z-62S, DMF-Z-76S, DMF-Z-102S

2. Quick Mount Pulse Jet Valve: DMF-ZM-20, DMF-ZM-25, DMF-ZM-40S, DMF-ZL-B

3. Immersion (Embedded) Pulse Jet Valve: DMF-Y-25, DMF-Y-40S, DMF-Y-50S, DMF-Y-62S, DMF-Y-76S, DMF-YA-76S, DMF-YB-76S, DMF-Y-102S, DMF-Y-102SA, DMF-Y-102SE

4. Flanged Pulse Jet Valve: DMF-ZF-25, DMF-ZF-40S

5. Straight Through Pulse Jet Valve: DMF-T-20, DMF-T-25S, DMF-T-40S, DMF-T-50S, DMF-T-62S





Technical data of DMF Series Right Angle Pulse Jet Valve:

Model
Nominal diametrer
Number of diaphragms
Inlet
Outlet
Weight (kg)
mm
inch
DMF-Z-20
Φ20
3/4''
1
G3/4''
G3/4''
0.65
DMF-Z-25
Φ25
1'''
1
G1''
G1''
0.8
DMF-Z-40S
Φ40
1 1/2''
2
G1 1/2''
G1 1/2''
1.4
DMF-Z-50S
Φ50
2''
2
G 2''
G2
2.4
DMF-Z-62S
Φ62
2 1/2''
2
G2 1/2''
G2 1/2''
3.5
DMF-Z-76S
Φ76
3''
2
G3''
G3''
4.3
DMF-Z-90S
Φ90
3 1/2''
2
G3 1/2''
G3 1/2''
5.75
DMF-Z-102S
Φ102
4''
2
G4''
G4''
7.3
DMF-ZL-B
Φ20
3/4''
1
G3/4''
Φ27
0.75

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.



List of All DMF Series BFEC Pulse Jet Valves:

Thread Valve
3/4''
1''
1.5''
2''
2.5''
3''
4''
DMF-Z-20
DMF-Z-25
DMF-Z-40S
DMF-Z-50S
DMF-Z-62S
DMF-Z-76S
DMF-Z-102S
Quick Mount Valve
3/4''
Inlet φ27
1''
1.5''
DMF-ZM-20
DMF-ZL-B
DMF-ZM-25
DMF-ZM-40S
Flange Valve
1''
1.5''
DMF-ZF-25
DMF-ZF-40S
Embedded Valve
1''
1.5''
Outlet φ62mm
Outlet φ75
Outlet φ89
Outlet φ114
Outlet φ102
DMF-Y-25
DMF-Y-40S
DMF-Y-50S
DMF-Y-62S
DMF-Y-76S
DMF-Y-102S
DMF-Y-102SA



Main Dimension of DMF-Z-40S Pulse Jet Valve:

DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 0



Product Features:

1. Ready for use in any dust collector design
* For noxious substance control and environmental dust management



2. Cost savings
* Increased pulse efficiency, reduced energy consumption
* Durable materials and wide temperature range enhance lifespan
* Longer filter life, lower dust collector OPEX



3. Compliance
* With environmental and health & safety regulations



4. Ease of installation
* No welding required with 90° connections directly onto squaretanks



Brando Supply:

 DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 1DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 2DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 3DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 4

       BFEC Pulse Jet Valve              CA/RCA Pulse Jet Valve                353 Pulse Jet Valve               Other Pulse Jet Valve



  DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 5DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 6DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 7DMF-Z-40S 1 1/2 Inch SBFEC Type Pulse Jet Valve For Dust Collector 24V DC 220V AC 8

             Pulse Controller                     Diaphragm Repair Kit                Solenoid Valve Coil        Solenoid Valve Armature Assembly
