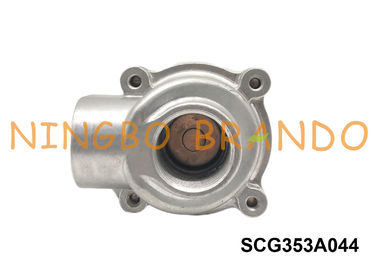

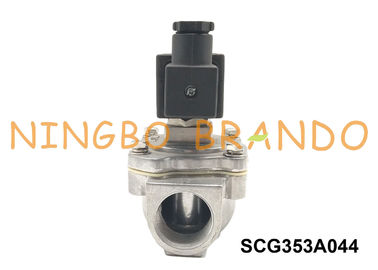

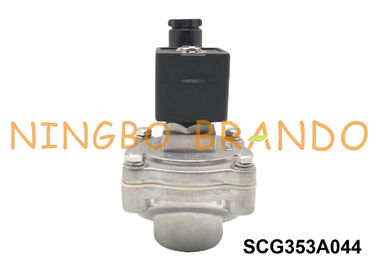

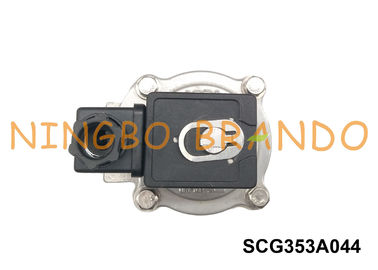

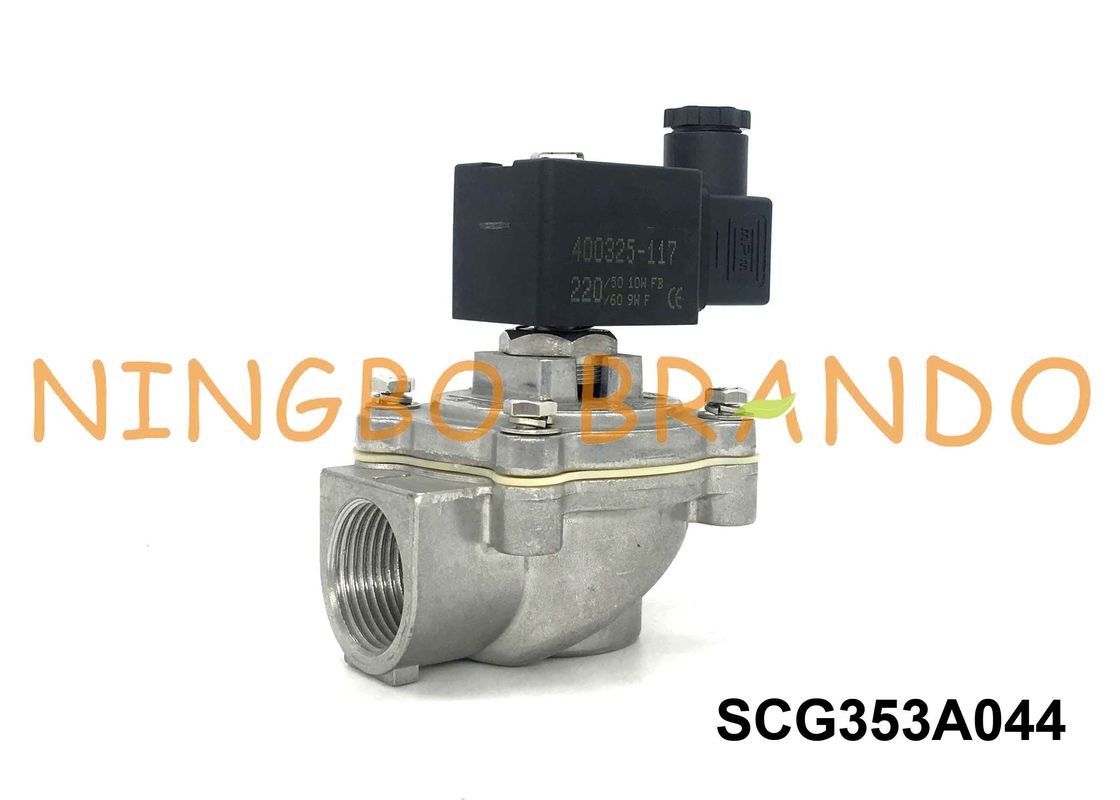

SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC

SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC

SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC
SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC

Product Details:

Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: SCG353A044

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Inner Box, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, Western Union, Paypal, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Product Name: SCG353A044 Pulse Jet Valve Remote Or Integral Pilot: Integral Pilot
Port Size: 1'' Structure: Diaphragm
Diaphragm Material: NBR (Buna) Remote Pilot CA Pulse Valves: G353A041, G353A042, G353A045
353 Threaded Pulse Jet Valves: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051 353 Immersion Pulse Jet Valves: SCXE353.060
Working Pressure Range: 0.35 To 0.85 MPa Voltage: 24VDC, 220VAC
High Light:

ASCO Pulse Valve

,

ASCO Diaphragm Valve

,

ASCO Solenoid Valve

SCG353A044 1 Inch ASCO Type Dust Collector Pulse Valve 24V DC 220V AC​



353 Series Pulse Jet Valves:

1. Threaded Pulse Jet Valve: SCG353A043, SCG353A044, SCG353A047, SCG353A050, SCG353A051

2. Remote Pilot Pulse Jet Valve: G353A041, G353A042, G353A045

3. Immersion Pulse Jet Valve: SCXE353.060





Technical data of 353 Series Pulse Jet Valve:

Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Service Life
Over one million times
Voltages
AC24V, AC110V, AC220V, DC24V

Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.



Product Features:
1. Ready for use in any dust collector design
* For noxious substance control and environmental dust management



2. Cost savings
* Increased pulse efficiency, reduced energy consumption
* Durable materials and wide temperature range enhance lifespan
* Longer filter life, lower dust collector OPEX



3. Compliance
*With environmental and health & safety regulations



4. Ease of installation
* No welding required with 90° connections directly onto squaretanks

Main Dimension of SCG353A044 Pulse Jet Valve:

SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 0



Brando Supply:

 SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 1SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 2SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 3SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 4

       BFEC Pulse Jet Valve              CA/RCA Pulse Jet Valve                353 Pulse Jet Valve               Other Pulse Jet Valve



  SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 5SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 6SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 7SCG353A044 1 Inch ASCO Type Reverse Jet Dust Collector Pulse Valve 24V DC 220V AC 8

             Pulse Controller                     Diaphragm Repair Kit                Solenoid Valve Coil        Solenoid Valve Armature Assembly
