| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | A051 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Mounting Hole Size: | 8.5mm | Diaphragm Material: | NBR/ Buna |
|---|---|---|---|
| Diaphragm OD: | 145mm | Center Distance: | 145.5mm |
| Sealing Gasket: | Without | Spring: | With |
| Suitable Valves: | SCG353A051 | Packaging: | Individual Plastic Bag Sealed |
| High Light: | ASCO Diaphragm,ASCO Pulse Valve Diaphragm,ASCO Membrane |
||

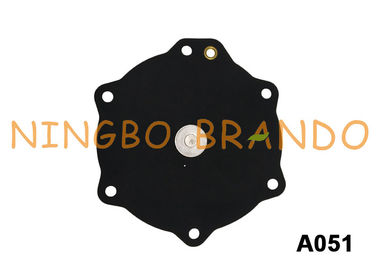

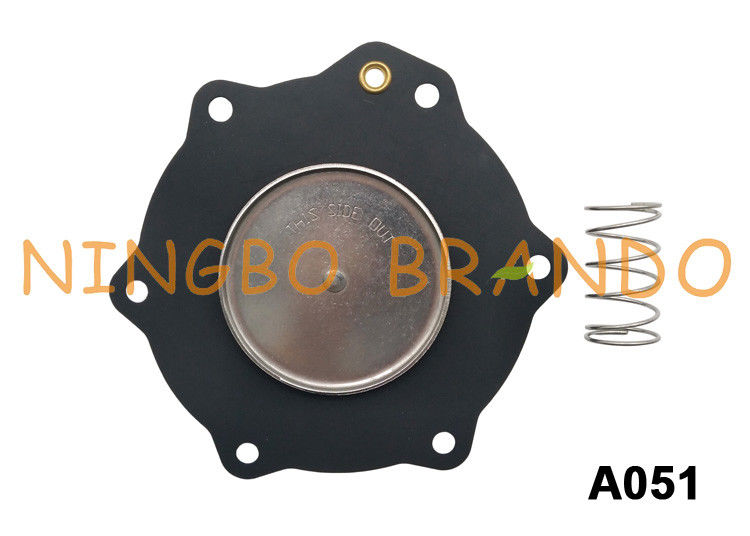

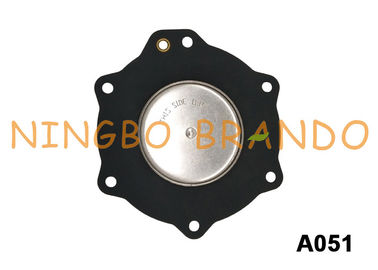

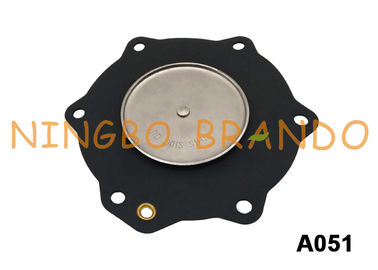

C113685 2'' NBR Buna Pulse Jet Valve Diaphragm Repair Kit For ASCO Type SCG353A051 Dust Collector Valve
Electromagnetic pulse valve: refers to a diaphragm valve that combines a solenoid valve, a pilot valve and a pulse valve and is directly controlled by an electric signal.
The electromagnetic pulse valve (also known as the diaphragm valve) is the compressed air "switch" of the pulse bag type dust collector cleaning system. Controlled by the output signal of the pulse blowing controller, the filter bag is sprayed and cleaned row by row (room), so that the resistance of the dust collector is kept within the set range to ensure the processing capacity and dust collection efficiency of the dust collector.
The diaphragm divides the electromagnetic pulse valve into two front and rear air chambers. When the compressed air is turned into the rear chamber through the orifice, the rear chamber pressure closes the diaphragm to the output port of the valve, and the electromagnetic pulse valve is “closed”. "status. The electric signal of the pulse blowing control device disappears, the armature of the electromagnetic pulse valve is reset, the venting hole of the rear air chamber is closed, and the pressure of the rear air chamber is raised to make the diaphragm close to the valve outlet, and the electromagnetic pulse valve is in the "closed" state.
Main dimension of ASCO Type Diaphragm Repair Kit:
Available Models of ASCO Solenoid Valve Spare Part Kits:
Tips: The valves mentioned, related solenoid coils and armature assembly are all supplied.
Diaphragm Features:
1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.
2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.
3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.
4. Facbric-reinforced diaphragms advantages:
*No leakage
*No Lubrication
* No Breakaway Force
* No Friction
* Functionality Over Wide Pressure Ranges
* High Strength
* Low Cost
* Simple Design
* Versatility
5. EPDM, FKM all available.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
