| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BB11036001 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | inner boxes,cartons,pallets |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000pcs per month |
| Hole Size: | 11mm | Height: | 36mm |
|---|---|---|---|
| Width: | 38.5mm | Voltage: | 48VAC |
| Power: | 20VA | Connector: | DIN 43650A |
| Insulation Class: | H | Enameled Wire Material: | Copper |
| Suitable Valve Number: | SCG353A043, SCG353A044, SCG353A051 | ||
| High Light: | Pulse Valve Solenoid Coil,Solenoid Coil For Pulse Valve,Pulse Valve Coil |
||

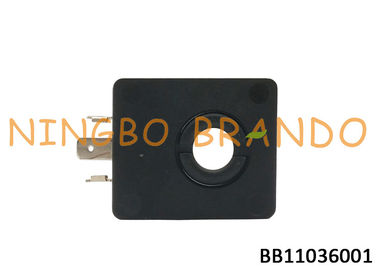

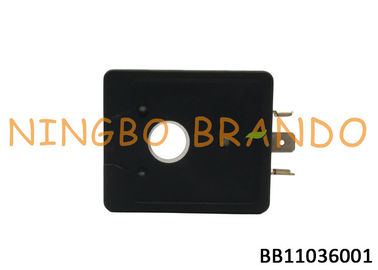

ASCO Type 400325-105 48VAC Solenoid Valve Coil For Dust Collector Pulse Jet Valve
| Model number | BB11036001 |
| Ref number | 400325642, 400325101, 400325118 |
| Normal voltage | AC110V, AC220V, DC12V, DC24V (Other can be customized) |
| Normal power | AC:20VA, DC: 21Watt |
| Material | BMC, Brass |
| Wire class | H |
| Connection | DIN43650A |
| Application | ASCO SCG353A043, SCG353053 Pulse Valve |
| Hole diameter | 11 mm |
| Height | 36 mm |
| Width | 38.5 mm |
| Valve Model | Repair Kits | Solenoid Coils | ||||
| AC | DC | 24VDC | 24 VAC | 110VAC | 220VAC | |
| SCG353A043 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
| ACG353AD44 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
| ACG353052 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
| SCG353053 | C113444 | C113444 | 400325642 | 400325101 | 400325118 | 400325118 |
| SCG353AD47 | C113827 | C113827 | 400425342 | 400425101 | 400425118 | 400425117 |
| SCG353050 | C113685 | C113686 | 400425342 | 400425101 | 400425118 | 400425117 |
| SCG353051 | C113685 | C113686 | 400425342 | 400425101 | 400425118 | 400425117 |
| SCG353060 | C123432 | C123433 | 400425342 | 400425101 | 400425118 | 400425117 |
| SCG353AD65 | C113827 | C113827 | 400425342 | 400425101 | 400425118 | 400425117 |

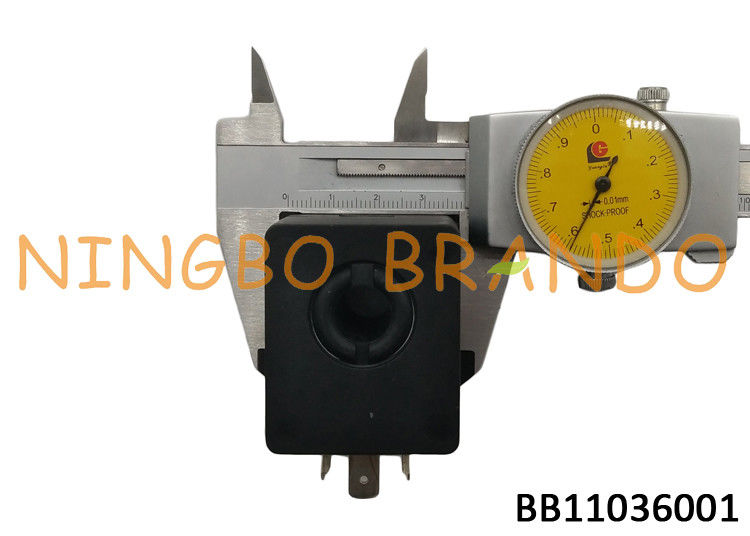

Main Dimension of 400325-142 ASCO Type Pulse Valve Coil:
AC/DC Solenoid Comparison:
AC service
a) High inrush and low holding current
b) High pull force
c) Sensitive to dirt
d) The coils have less windings (copper)
than DC coils
e) Power consumption and pull force not sensitive to temperatures.
DC Service
a) Inrush current equals to holding
current
b) Power consumption and pull force
depend on temperature
c) Solenoid operates quietly
d) Not sensitive to dirt
e) The coils have more windings (copper) than AC coils
Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
