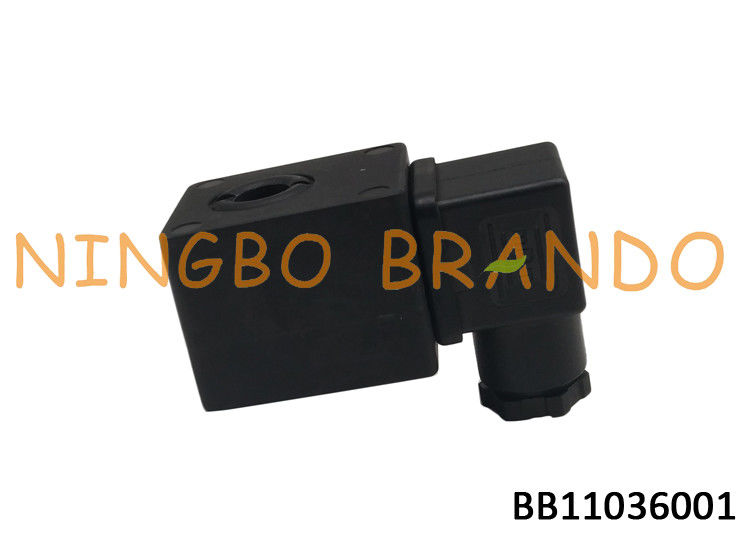

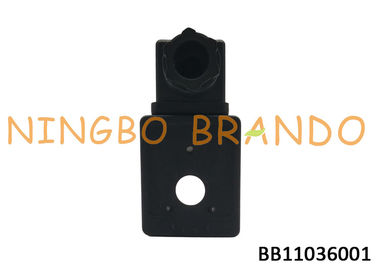

400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve

400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve

  • 400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve
  • 400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve
  • 400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve
  • 400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve
400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB11036001
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Hole Size: 11mm Height: 36mm
Width: 38.5mm Voltage: 24V DC
Power: 24VA, 21W Connection: DIN43650A
Insulation Class: H Enameled Wire Material: Copper
Suitable Valve Number: SCG353A043, SCG353A044, SCG353A052, SCG353A053
High Light:

Pulse Valve Solenoid Coil

,

Solenoid Coil For Pulse Valve

,

Pulse Valve Coil

400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve

ASCO Type solenoid pulse valve replacement coil, can be used in SCG353A043, SCG353A044, SCG353A052, SCG353A053 electromagnetic impulse valve. 353 series pulse valves are Widely used in bag house dust collector system.

The pulse valve is the compressed air switch of the pulse bag type dust collector cleaning system is controlled by the pulse blowing controller, and the filter bag is sprayed and cleaned step by row, so that the resistance of the dust collector is kept within the set range.



Hole Size: 11mm
Height: 36mm
Width: 38.5mm
Voltage: 24V DC
Power: 24VA, 21W
Connection: DIN43650A
Insulation Class: H
Enameled Wire Material: Copper
Suitable Valve Number: SCG353A043, SCG353A044, SCG353A052, SCG353A053

Technical Data:

Model number BB11036001
Ref number 400325642, 400325101, 400325118
Normal voltage AC110V, AC220V, DC12V, DC24V (Other can be customized)
Normal power AC:20VA, DC: 21Watt
Material BMC, Brass
Wire class H
Connection DIN43650A
Application ASCO SCG353A043, SCG353053 Pulse Valve
Hole diameter 11 mm
Height 36 mm
Width 38.5 mm



Valve Model Repair Kits Solenoid Coils
AC DC 24VDC 24 VAC 110VAC 220VAC
SCG353A043 C113444 C113444 400325642 400325101 400325118 400325118
ACG353AD44 C113444 C113444 400325642 400325101 400325118 400325118
ACG353052 C113444 C113444 400325642 400325101 400325118 400325118
SCG353053 C113444 C113444 400325642 400325101 400325118 400325118
SCG353AD47 C113827 C113827 400425342 400425101 400425118 400425117
SCG353050 C113685 C113686 400425342 400425101 400425118 400425117
SCG353051 C113685 C113686 400425342 400425101 400425118 400425117
SCG353060 C123432 C123433 400425342 400425101 400425118 400425117
SCG353AD65 C113827 C113827 400425342 400425101 400425118 400425117



Main Dimension of 400325-142 ASCO Type Pulse Valve Coil:

400325-142 24V DC Replacement Solenoid Valve Coil For ASCO 353 Series Dust Collector Pulse Valve 0



Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.



Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing


Welcome to your any question and inquiry!
