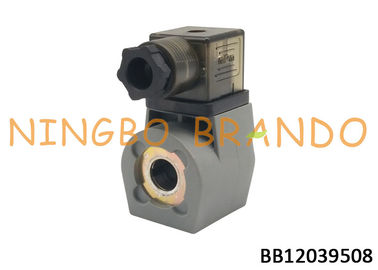

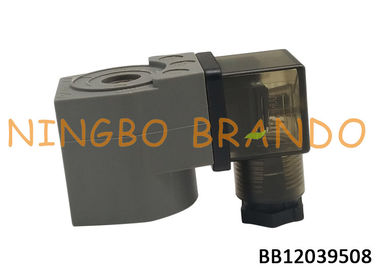

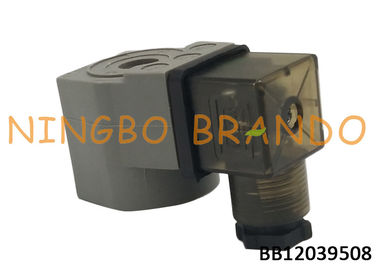

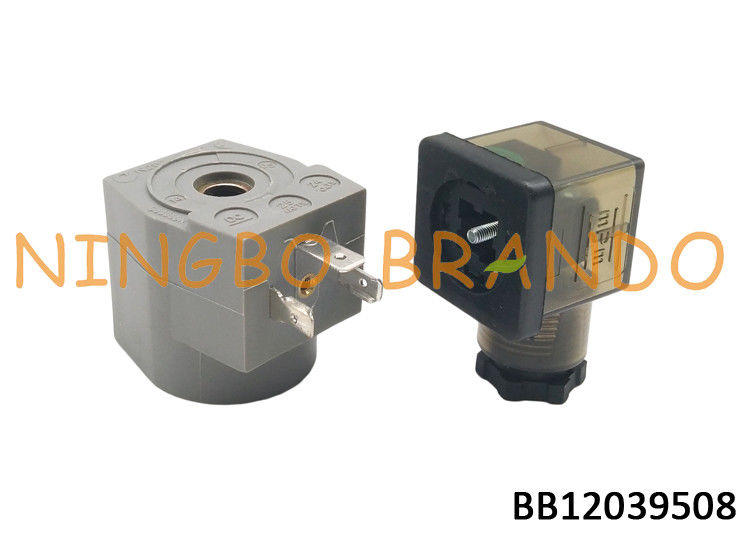

K0304 48V DC CY123 N282 C53056N Solenoid Valve Coil For Goyen Type CA Series Pulse Valve

K0304 48V DC CY123 N282 C53056N Solenoid Valve Coil For Goyen Type CA Series Pulse Valve

  • K0304 48V DC CY123 N282 C53056N Solenoid Valve Coil For Goyen Type CA Series Pulse Valve
  • K0304 48V DC CY123 N282 C53056N Solenoid Valve Coil For Goyen Type CA Series Pulse Valve
  • K0304 48V DC CY123 N282 C53056N Solenoid Valve Coil For Goyen Type CA Series Pulse Valve
  • K0304 48V DC CY123 N282 C53056N Solenoid Valve Coil For Goyen Type CA Series Pulse Valve
K0304 48V DC CY123 N282 C53056N Solenoid Valve Coil For Goyen Type CA Series Pulse Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB12039508
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Ref Number: K0304 Hole Size: 12mm
Height: 41mm Width: 37.5mm
Voltage: 48V DC Connector: DIN43650A
Insulation Class: F, H Protection Class: IP64
Application: Goyen Type Dust Collector Pulse Valve
High Light:

Pulse Valve Solenoid Coil

,

Solenoid Coil For Pulse Valve

,

Pulse Valve Coil

K0304 48V DC CY123 N282 C53056N Solenoid Valve Coil For Goyen Type CA Series Pulse Valve

Possible problems and solutions of Solenoid Coil:

1.Overvoltage.

voltage must conform to rating.

2.Excessive ambient or fluid temperature.

For temps up to 167 F, use Class F coils; for temps up to 212 F, use Class H.

3.Moisture inside solenoid enclosure.

Waterproof the entrance conduit to prevent entry of moisture. If valve is mounted outdoors, check to see that enclosure is weatherproof and that gaskets are in good condition; use appropriate sealant when required. If general-purpose enclosure is used in a damp or humid atmosphere, use watertight, molded coils.

We also have 200/240v 220V AC 50/60Hz(K0300), 100/120V 110V AC 50/60Hz(K0301), 24V AC 50/60Hz(K0302), 110V DC (K0303), 48VDC(K0304), 24V DC(K0305), 12VDC (K0306).
Hole Size: 12mm
Height: 41mm
Width: 37.5mm
Voltage: 48V DC
Power: 20Watt
Connector: DIN43650A
Insulation Class: F.H
Protection Class: IP64
Application: Goyen Type Dust Collector Pulse Valve



Dimension of K0302 24V AC Dust Collector Valve Coil:

24vac Solenoid Coil Replacement

Solenoid Pulse Valve Coil Technical Data:

Model No. BB12039508
Normal voltage 48V DC
Normal power AC:25VA DC20W
Insulation class H, F
Connection type DIN43650A
Application Goyen type pulse solenoid valve
Weight 142.5 g



Code
Type
Class
Voltage
Inrush
(mA)
Hold
(mA)
Power
K0300
QR
IP64
200/240V 220V AC 50/60Hz
1338/1096
963/716
23.1VA
K0301
QR
IP64
100/120V 110V AC 50/60Hz
234/225
180/152
19.8VA
K0302
QR
IP64
24V AC 50/60Hz
1338/1096
963/716
23.1VA
K0303
QR
IP64
110V DC
212
212
24W
K0304
QR
IP64
48V DC
429
429
20W
K0305
QR
IP64
24V DC
873
873
20W
K0306
QR
IP64
12V DC
1644
1644
20W



Application Example:

Application Example:

Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
