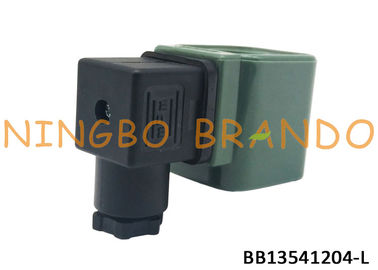

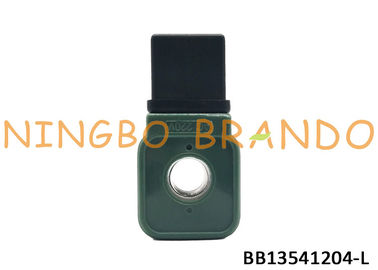

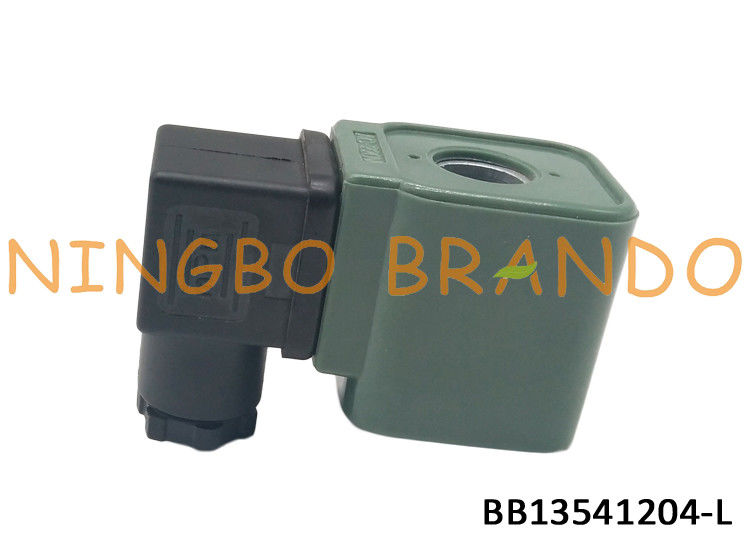

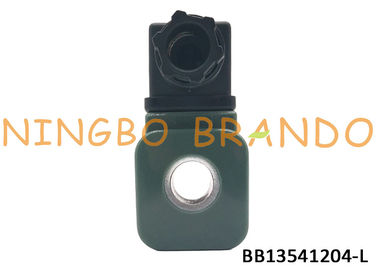

DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve

DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve

  • DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve
  • DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve
  • DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve
  • DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve
DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB13541204-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Hole Size: 13.5mm Height: 41.2mm
Width: 36.0mm Voltages: AC220V, DC24V
Power: 25VA, 20W Connection Type: DIN43650A
Protection Class: IP65 Insulation Class: F, H
Enameled Wire Material: Copper Application: SBFEC Old DMF Series Pulse Valve
High Light:

Pulse Valve Solenoid Coil

,

Solenoid Coil For Pulse Valve

,

Pulse Valve Coil

DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve

This Coil can be used in all series Old Version SBFEC type pulse valve, like DMF-Z series right angle threaded diaphragm valve, DMF-Y series Embedded diaphragm valve, DMF-ZM series right angle diaphragm valve with dresser nut and DMF-T series Straight diaphragm valve. The movable iron core in the solenoid valve coil attracts the movement of the coil when the valve is energized, driving the valve core to move, thereby changing the conduction state of the valve. The input changes with the position of the iron core. When the inductance is small, the current flowing through the coil will increase.



Hole Size:13.5mm
Height:41.2mm
Width:36.0mm
Voltages:AC220V, DC24V
Power:25VA, 20W
Connection Type:DIN43650A
Protection Grade:IP65
Insulation Class:F, H
Enameled wire material:Copper
Application:BFEC Old DMF Series Pulse Valve



Dimension of BFEC Type Solenoid Pulse Valve Coil:

Dimension of BFEC Type Solenoid Pulse Valve Coil:



Specification of DMF Series Solenoid Coil Repair Kits:

Model No
BB13541204
Hole Size
13.5mm
Height
41.2mm
Width
36.0mm
Connector
DIN43650A
Insulation Class
F, H
Voltages
AC220V, DC24V
Powers
25VA, 20Watt
Application
Old Version BFEC DMF Series Pulse Valves



Application Example:

DMF Old Version Pneumatic Solenoid Coil For SBFEC Type Dust Collector Pulse Valve 1

Common problems of electromagnetic pulse valve coil
The coil of the electromagnetic pulse valve is burnt out. The wiring of the electromagnetic pulse valve can be removed and measured with a multimeter. If it is open, the coil of the electromagnetic pulse valve is burnt out. However, it is burnt, so it is necessary to prevent rainwater from entering the solenoid valve. In the end, the spring is too stiff, the reaction force is too large, the coil turns are too few, and the suction force is not enough, and the coil can be burned.

When the coil of the solenoid valve is in working state (energized), the iron core is attracted to form a closed magnetic circuit. That is, when the inductance is at the maximum state. The heating is normal, but the iron core cannot be pulled in smoothly when energized, the coil inductance is reduced, the impedance is reduced, and the current is increased accordingly. This causes the coil current to be too large and the lifespan is affected. It can't even be fully attracted normally, so that the coil is often in a state of less impedance than normal when it is energized, which may be the factor of the coil.



Product Characteristic:
1. Using high quality wire which has UL approved;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on;
4. Insulation class can be B, F, H, N, C;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on;
7. If you have special requirement, pls feel free to contact us.



Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing



Welcome to your any question and inquiry!
