Name: C113928 3" ASCO Type Solenoid Valve Diaphragm For SCEX353.060 Full Immersion Dust Collector Pulse Valve
Brand: Brando
SKU: A060
Rating: 4.9 (200 reviews)

Home Products Diaphragm Repair Kit

C113928 3" ASCO Type Solenoid Valve Diaphragm For SCEX353.060 Full Immersion Dust Collector Pulse Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	A060

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Name:	C113928 ASCO Type Pulse Valve Diaphragm Repair Kits	Size:	For 3''Pulse Valve
Material:	NBR Nitrile	Suitable Valve Number:	SCEX353.060
Mounting Hole Size:	11mm	Diaphragm Outer Distance:	190mm
Center Distance:	187mm	Sealing Gasket:	Without
High Light:	ASCO Diaphragm , ASCO Pulse Valve Diaphragm , ASCO Membrane

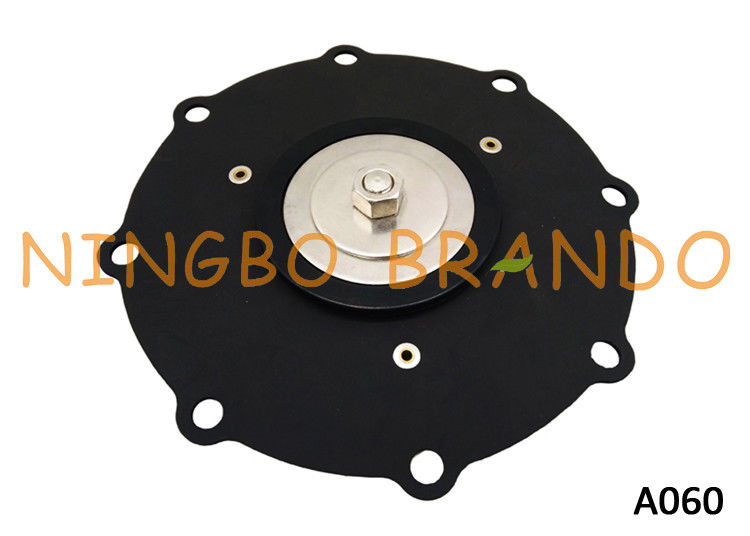

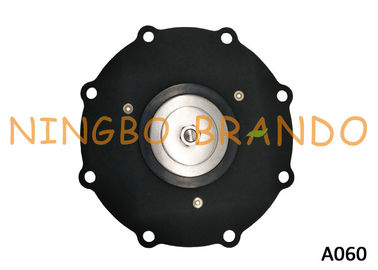

C113928 3'' ASCO Type Solenoid Valve Diaphragm for SCEX353.060 Full Immersion Dust Collector Pulse Valve

This is ASCO Type C113928 3'' solenoid valve diaphragm repair kits for SCEX353.060 electromagentic pulse jet valve.

Name: C113928 ASCO Type Pulse Valve Diaphragm Repair Kits

Size: For 3''Pulse Valve

Material: NBR Nitrile

Suitable Valve Number: SCEX353.060

Mounting Hole Size: 11mm

Diaphragm Outer Distance: 190mm

Center Distance: 187mm

Sealing Gasket: Without

Dimension:

C113928 3'' ASCO Type Solenoid Valve Diaphragm for SCEX353.060 Dimension

Reference Number:

Ordering Code	Fitted Valve Code	Valve Port Size	Material
C113443	G353A041, G353A042	3/4'', 1''	TPU/NBR
C113444	SCG353A043, SCG353A044, SCG353-052, SCG353-053	3/4'', 1''	TPU/NBR
C113825	G353A045	1-1/2''	NBR
C113826	G353A046	1-1/2''
C113827	SCG353A047, SCG353A065	1-1/2''
C113685	SCG353A050, SCG353A051	2'', 2-1/2''
C113686	SCG353A050, SCG353A051	2'', 2-1/2''
C113928	SCEX353.060	3''
C123432	SCG353D060, G353.060
C123433	SCG353D060, G353.060
K096875 (K238864)	8353C033	3/4''
K200262 (K238866)	G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053	1''
K276886 (K238870)	G353A045, G353A046, SCG353A047, SCG353A065	1-1/2''
K276886B
K276887			Viton
Tips: EPDM, FKM All Available.

Application:

C113928 diaphragm is the main part in SCEX353.060 full immersion dust collector pulse valve. This valve usually used in bag house dust collector system. It consist of solenoid coil, armature, diaphragm, diecast aluminum alloy body and other screws.

The bag filter is a common equipment commonly used in boilers and industrial production. SCXE353.060 embedded pneumatic pulse valve that removes dust from it. The function of the precipitator is to extract the boiler fuel and the particulate soot in the flue gas, thereby greatly reducing the amount of soot discharged into the atmosphere. This will protect the environment very well. This will also improve the environmental quality of people's lifes.

Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
*No leakage *No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, FKM all available.

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change

√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
