C113443 C113444 ASCO Type Solenoid Pulse Valve Diaphragm Repair Kit For 3/4" 1" Dust Collector Valve

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	A044

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	inner boxes,cartons,pallets
Delivery Time:	7 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Name:	C113443 C113444 ASCO Type Solenoid Valve Diaphragm Repair Kit	Size:	For 3/4'' & 1'' Pulse Valve
Material:	TPU/ NBR	Color:	Black
Suitable Valve Number:	SCG353A043, SCG353A044, SCG353-052, SCG353-053, G353A041, G353A042	Mounting Hole Size::	6.5mm
Diaphragm Outer Distance:	76.5mm	Center Distance::	78mm
High Light:	ASCO Diaphragm , ASCO Pulse Valve Diaphragm , ASCO Membrane

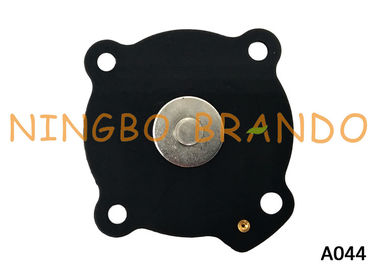

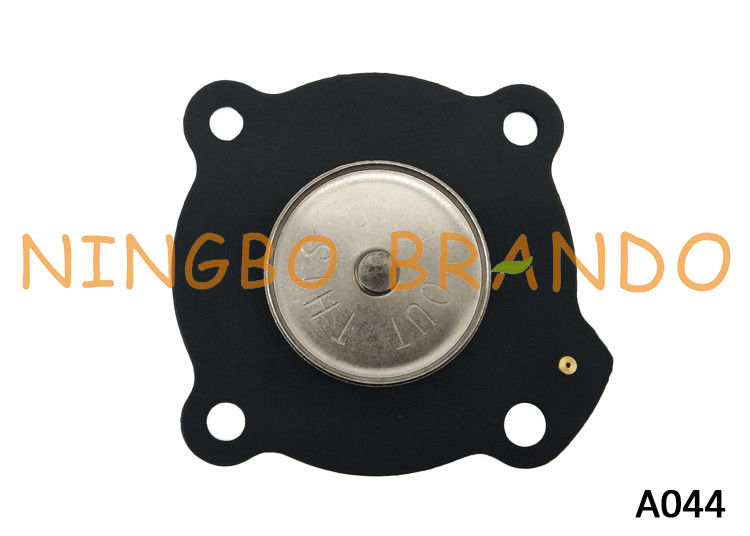

C113443 C113444 ASCO Type Solenoid Pulse Valve Diaphragm Repair Kit For 3/4'' 1'' Dust Collector Valve

This is ASCO Type solenoid pulse valve diaphragm. Can be used in 3/4'' SCG353A043 SCG353-052 G353A041 & 1'' SCG353A044 SCG353-053 G353A042 Electromagnetic solenoid pulse valve. With NBR nitrile Diaphragm. ASCO type 353 series is a diaphragm - operated solenoid valve specially designed to deliver extremely fast pulsing in reverse- jet dust collector systems. With its high flow and quick opening and closing, it helps provide extremely effective bag cleaning, time after time.

Dimension:

C113443 C113444 diaphragm repair kit

Reference Number:

Ordering Code	Fitted Valve Code	Valve Port Size	Material
C113443	G353A041, G353A042	3/4'', 1''	TPU/NBR
C113444	SCG353A043, SCG353A044, SCG353-052, SCG353-053	3/4'', 1''	TPU/NBR
C113825	G353A045	1-1/2''	NBR
C113826	G353A046	1-1/2''
C113827	SCG353A047, SCG353A065	1-1/2''
C113685	SCG353A050, SCG353A051	2'', 2-1/2''
C113686	SCG353A050, SCG353A051	2'', 2-1/2''
C113928	SCEX353.060	3''
C123432	SCG353D060, G353.060
C123433	SCG353D060, G353.060
K096875 (K238864)	8353C033	3/4''
K200262 (K238866)	G353A041, G353A042, SCG353A043, SCG353A044, SCG353-052, SCG353-053	1''
K276886 (K238870)	G353A045, G353A046, SCG353A047, SCG353A065	1-1/2''
K276886B
K276887			Viton
Tips: EPDM, FKM All Available.

Features:

1. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power.

2. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity.

3. Fabric is made of polyester, nylon and silk and commonly used for most applications, such like exposed to high-temperature, or require extremely high-strength.

4. Facbric-reinforced diaphragms advantages:
*No leakage *No Lubrication * No Breakaway Force * No Friction
* Functionality Over Wide Pressure Ranges
* High Strength * Low Cost * Simple Design * Versatility

5. EPDM, FKM all available.
