Parker Type 492425F4 230/50 14W Pneumatic Solenoid Valve Coil H Class DIN43650A PN 439518

Parker Type 492425F4 230/50 14W Pneumatic Solenoid Valve Coil H Class DIN43650A PN 439518

    • Parker Type 492425F4 230/50 14W Pneumatic Solenoid Valve Coil H Class DIN43650A PN 439518
    • Parker Type 492425F4 230/50 14W Pneumatic Solenoid Valve Coil H Class DIN43650A PN 439518
    • Parker Type 492425F4 230/50 14W Pneumatic Solenoid Valve Coil H Class DIN43650A PN 439518
  • Parker Type 492425F4 230/50 14W Pneumatic Solenoid Valve Coil H Class DIN43650A PN 439518

    Product Details:

    Place of Origin: China
    Brand Name: Brando
    Certification: CE
    Model Number: BB14637535

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Packaging Details: inner boxes,cartons,pallets
    Delivery Time: 7 working days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 100000pcs per month
    Contact Now
    Detailed Product Description
    Name: 482425F4 Parker Type Solenoid Coil Inside Hole Diameter: 14mm
    Height: 37mm Width: 33mm
    Connector: DIN43650A Winding Material: Copper
    Protection Class: IP65 Insulation Class: H
    Voltage: 230/50 Power: 14W

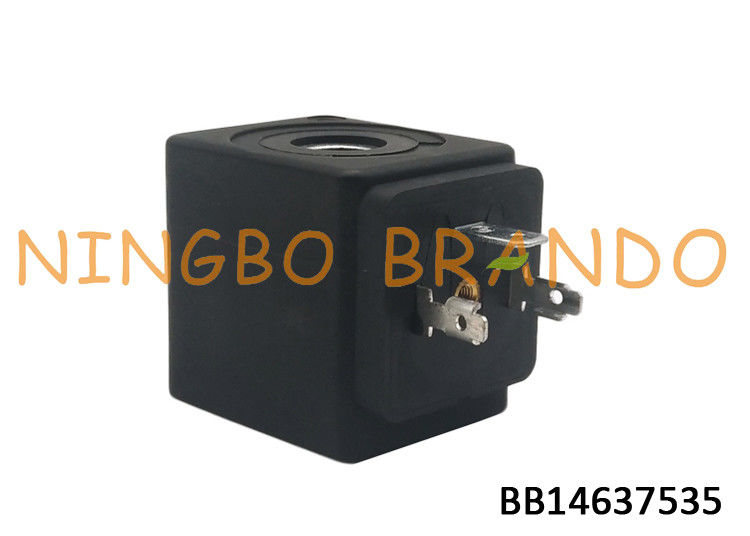

    Parker Type 492425F4 230/50 14W Pneumatic Solenoid Valve Coil H Class DIN43650A PN 439518​

    H class coil (DC, AC, 14W) encapaulated in synthetic material. connection for 2P + E DIN43650 A Plug. IP65 rate canbe achieved using a DIN Plug connector only.

    Solenoid valves dispense liquids and are for use in gas shutoff, vacuum holding, and tank draining. Solenoid valve coils convert electrical energy into linear motion to control the opening and closing of solenoid valves.

    492425F4 Parker Type Solenoid Valve Spare Parts.

    Part Number: 439518

    Insulation Class:H

    Voltage: 230/50

    Power: 14W

    The use of high pressure gases became a necessityin the new technologies developed during the last years.The control of these fluids can be done through the solenoid valves high pressure applications(maximum 50 bar).
    The life expectancy of several millions of cycles, with response time of few milliseconds, allows the use of these valves on intensive applications and on high technology machines, as the plastic bottle blowing machines, or the laser cutting machines.



    Voltage Power Consumption Description Part Number
    24/50 14W 492425A2 439550
    110/50 14W 492425A5 439551
    230/50 14W 482425F4 439518
    230/50 14W 492425C2 439522



    Technical data:

    Model
    BB14637535
    Hole size
    14.5 mm
    Height
    37.0 mm
    Width
    33.0 mm
    Voltages
    230/50
    Power
    14W
    Insulation class
    H
    Connection Type
    DIN43650A
    Enameled wire material
    Copper



    Dimension:

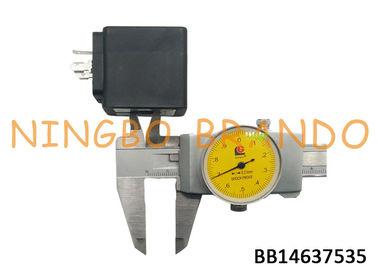

    BB14637535 dimension



    Details:

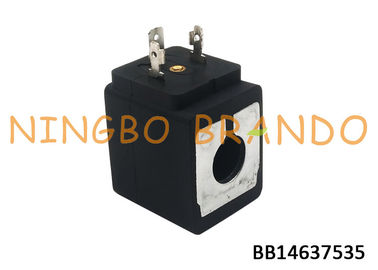

    BB14637535 hole sizeBB14637535 hole size

    BB14637535 HeightBB14637535 width

    DIN 43650A Connector:

    BB14637535 DIN 43650A Connector



    Parker Type Lucifer Valve Suitable for a wide variety of coffee machine :

    BEZZERA Coffee machine ELLISSE
    BRASILIA Coffee machine CENTURY, PORTOFINO
    CONTI Coffee machine CLUB, TWINSTAR2, XEOS2
    ESSIKA Coffee machine SK2, SSK2
    FAEMA Coffee machine COMPACT, DUEA, E61, E91, EXPRESS
    FIORENZATO C.S. Coffee machine MURANO
    PAVONI Coffee machine BART
    RANCILIO Coffee machine EPOCA
    RENEKA Coffee machine LC, VIVA, VIVA S, XL-PALLAS
    SAN MARCO Coffee machine EUROPA95, NS85

    Features:

    1. Using high quality wire;
    2. Using high quality permeablity magnetic material which contain low carbon;
    3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
    4. Insulation class can be F, H;
    5. Protection class can be IP65, IP67 & IP69K;
    6. We also offer special coils like ex-proof coils, water proof coils and so on.
    7. If you have special requirement, pls feel free to contact us.
