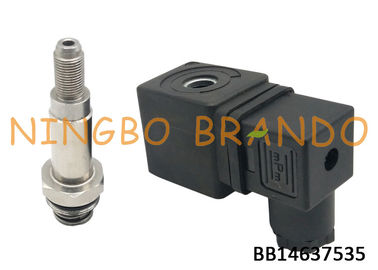

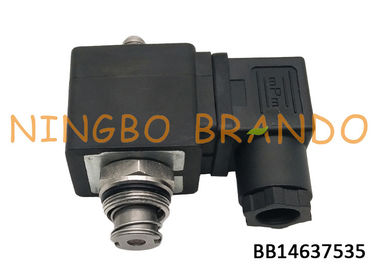

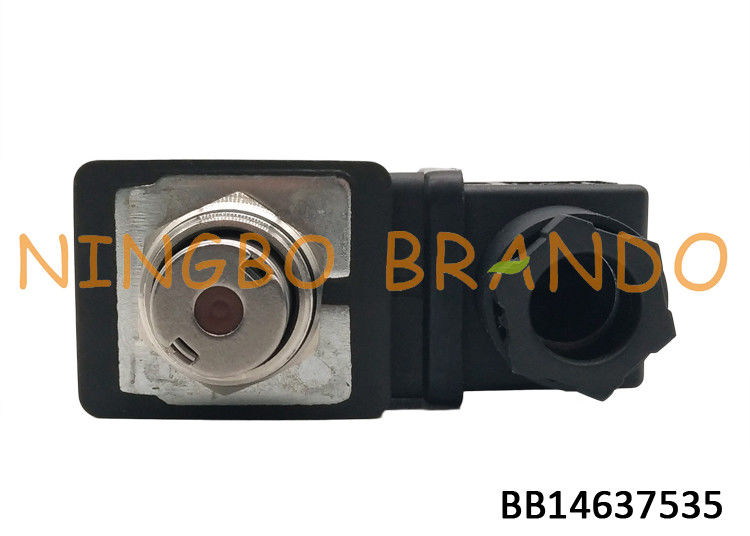

Parker Type 481865B2 24/60 8W Pneumatic Solenoid Lucifer Coil Copper Wire Mono Frequency F Class Part Number 439804

Parker Type 481865B2 24/60 8W Pneumatic Solenoid Lucifer Coil Copper Wire Mono Frequency F Class Part Number 439804

  • Parker Type 481865B2 24/60 8W Pneumatic Solenoid Lucifer Coil Copper Wire Mono Frequency F Class Part Number 439804
  • Parker Type 481865B2 24/60 8W Pneumatic Solenoid Lucifer Coil Copper Wire Mono Frequency F Class Part Number 439804
  • Parker Type 481865B2 24/60 8W Pneumatic Solenoid Lucifer Coil Copper Wire Mono Frequency F Class Part Number 439804
Parker Type 481865B2 24/60 8W Pneumatic Solenoid Lucifer Coil Copper Wire Mono Frequency F Class Part Number 439804
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: BB14637535
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: inner boxes,cartons,pallets
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Name: 481865B2 Parker Type Solenoid Coil Inside Hole Diameter: 14mm
Height: 37mm Width: 33mm
Connector: DIN43650A Winding Material: Copper
Protection Class: IP65 Insulation Class: F
Normal Voltage: 24/60 Power: 8W
High Light:

Parker Solenoid Coil

,

Parker Solenoid Valve Coil

,

Parker Solenoid Coil 24V

Parker Type 481865B2 24/60 8W Pneumatic Solenoi Lucifer Coil Copper Wire Mono-Frequency F Class Part Number 439804

Solenoid valves dispense liquids and are for use in gas shutoff, vacuum holding, and tank draining. Solenoid valve coils convert electrical energy into linear motion to control the opening and closing of solenoid valves.

481865B2 Parker Type Solenoid Valve Spare Parts.

Part Number: 439804

Insulation Class:F

Voltage: 24/60

Power: 8W

The use of high pressure gases became a necessityin the new technologies developed during the last years.The control of these fluids can be done through the solenoid valves high pressure applications(maximum 50 bar).
The life expectancy of several millions of cycles, with response time of few milliseconds, allows the use of these valves on intensive applications and on high technology machines, as the plastic bottle blowing machines, or the laser cutting machines.



Voltage Power Consumption Description Part Number
24/50 8W 481865A2 439500
48/50 8W 481865A4 439515
110/50 8W 481865A5 439514
220-230/50 8W 4818653D 439502
380/50 8W 481865A9 439531
24/60 8W 481865B2 439804
230/60 8W 481865J3 439530
115/60 8W 481865K8 439528
12DC 9W 481865C1 439508
24DC 9W 481865C2 439501
48DC 9W 481865C4 439523
110V DC 9W 481865C5 439532



Technical data:

Model
BB14637535
Hole size
14.5 mm
Height
37.0 mm
Width
33.0 mm
Voltages
24/60
Power
8W
Insulation class
F
Connection Type
DIN43650A
Enameled wire material
Copper



Dimension:

BB14637535 dimension



Details:

BB14637535 hole sizeBB14637535 hole size

BB14637535 HeightBB14637535 width

DIN 43650A Connector:

BB14637535 DIN 43650A Connector



Parker Type Lucifer Valve Suitable for a wide variety of coffee machine :

BEZZERA Coffee machine ELLISSE
BRASILIA Coffee machine CENTURY, PORTOFINO
CONTI Coffee machine CLUB, TWINSTAR2, XEOS2
ESSIKA Coffee machine SK2, SSK2
FAEMA Coffee machine COMPACT, DUEA, E61, E91, EXPRESS
FIORENZATO C.S. Coffee machine MURANO
PAVONI Coffee machine BART
RANCILIO Coffee machine EPOCA
RENEKA Coffee machine LC, VIVA, VIVA S, XL-PALLAS
SAN MARCO Coffee machine EUROPA95, NS85

Features:

1. Using high quality wire;
2. Using high quality permeablity magnetic material which contain low carbon;
3. Using high quality housing material like PA66, PBT, PPS, BMC and so on.
4. Insulation class can be F, H;
5. Protection class can be IP65, IP67 & IP69K;
6. We also offer special coils like ex-proof coils, water proof coils and so on.
7. If you have special requirement, pls feel free to contact us.
